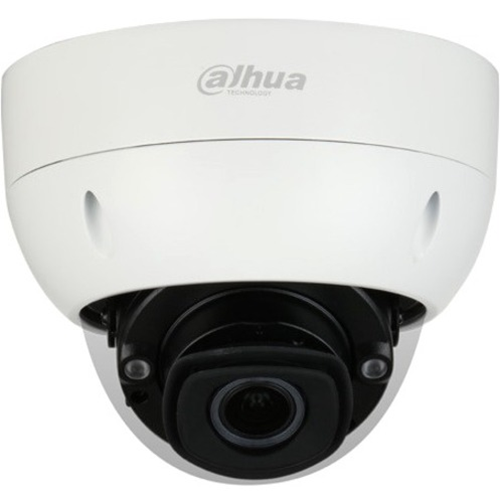

The Dahua 4MP corrosion-resistant network camera features a special coating that makes the camera compliant to the NEMA 4X standard. The camera offers a motorized vari-focal lens, True Wide Dynamic Range, and Starlight technology for crisp, clear images in most applications. Plus, the camera offers Smart Motion Detection and advanced perimeter protection intelligence. The camera is suitable for salt-spray and corrosive environments where rugged conditions persist.
Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 30 fps
- Ultra Wide Dynamic Range (140 dB)
- Analytics+ Functions - Perimeter Protection, People Counting, and Smart Motion Detection
- Starlight+ Technology for Low-light Applications
- Enhanced Power and Data Transmission Distances (ePoE)
- Maximum IR Distance 40 m (131.20 ft)
- ArcticPro Series Camera - Operational down to -40° C (-40° F)
| Technical Specification | |
| Camera | |
| Image Sensor | 1/1.8-in. 4 MP CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 1 GB / 128 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.003 lux at F1.8 (30 IRE) B/W: 0.0003 lux at F1.8 (30 IRE) 0 lux at F1.8 with IR on |
| S/N Ratio | Greater than 56 dB |
| IR Illumination Distance | 40.0 m (131.20 ft) |
| IR On/Off Control | Auto, Manual |
| IR Illuminators | Three (3) |
Lens
| Lens Type | Motorized Vari-focal | ||||
| Mount Type | ø14 | ||||
| Focal Length | 2.7 mm to 12 mm | ||||
| Max. Aperture | F1.8 | ||||
| Angle of View | Horizontal: 44° to 107° Vertical: 29° to 69° Diagonal: 53° to 134° | ||||
| Iris Type | Auto | ||||
| Close Focus Distance | 1.20 m (47.24 ft) | ||||
DORI Distance¹ | Lens | Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| Wide | 57.0 m (187.0 ft) | 23.0 m (75.46 ft) | 11.0 m (36.09 ft) | 5.70 m (18.70 ft) | |
| Tele | 130.70 (428.81) | 52.0 (170.60) | 26.0 (85.30) | 13.0 (42.65) | |
Installation Angle
| Range | Pan: 0° to 355° Tilt: 0° to 80° Rotation: 0° to 355° |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2688 x 1520), 2560 x 1440, 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate² | Main Stream: 4 MP (2688 x 1520) at 30 fps or 1080p (1920 x 1080) at 60 fps |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 1080p at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 8192 Kbps H.265: 32 Kbps to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual, Gain Priority, Shutter Priority |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Smart IR, Defog, Electronic Image Stabilization |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (8 Areas, Rectangular) |
| Audio | |
| Compression | PCM, G.711a, G.711Mu, G.726, G.723 |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF Profile S, G, T; CGI, Milestone; Genetec; P2P; SDK; API |
| Auto Register | Support |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total Bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS) SFTP, FTP Micro SD Slot, maximum 256 GB |
| Web Viewer | IE (Versions 8 and later) Chrome, Firefox |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Electrical
| Audio | Input | One (1) Channel |
| Output | One (1) Channel | |
| Alarm | Input | Three (3) Channels (5 mA, 3 VDC to 5 VDC) |
| Output | Two (2) Channels (300 mA, 12 VDC) | |
| Electrical | ||
| Power Supply | 12 VDC (±25%), 24 VAC (±30%), PoE (IEEE 802.3af, Class 0), or ePoE | |
Power Consumption | Basic | 12 VDC: 3.6 W 24 VAC: 3.1 W PoE: 4.4 W |
| Maximum | 12 VDC: 11.7 W 24 VAC: 11.3 W PoE: 11.9 W |
Construction
| Casing | Metal |
| Dimensions | ø157.90 mm x 129.10 mm (ø6.22 in. x 5.08 in.) |
| Net Weight | 1.50 kg (3.30 lb) |
| Gross Weight | 1.60 kg (3.50 lb) |
