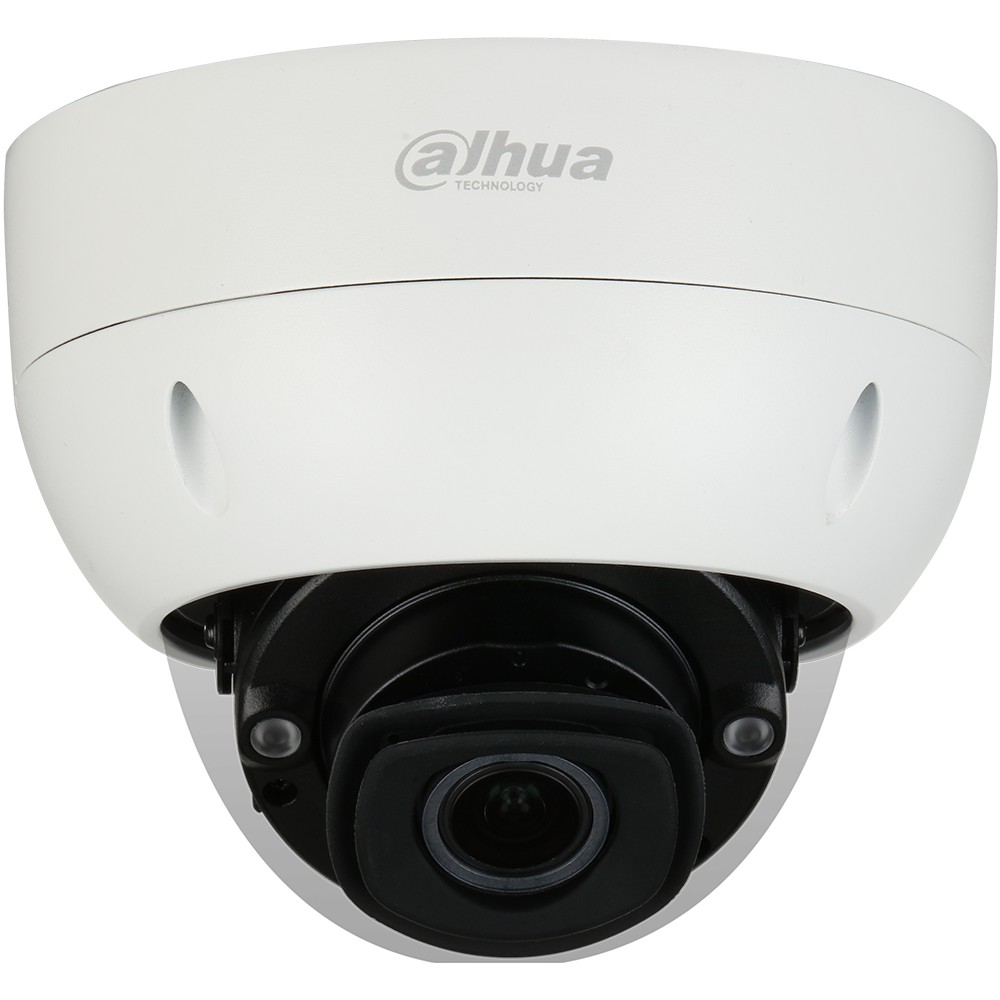

The Dahua 4 MP ePoE camera offers Analytics+ functions at the edge – performing complex real-time people counting, and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Ultra Wide Dynamic Range and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.
Features:
- 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
- Five-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- 4 MP (2688 x 1520) at 60 fps Maximum Resolution
- 2.7 mm to 12 mm Motorized Vari-focal Lens
- Starlight Technology for Ultra Low-light Applications
- Enhanced Power and Data Transmission Distances (ePoE)
- Analytics+ Functions — People Counting, Perimeter Protection, and Image Attribute Extraction
- Ultra Wide Dynamic Range (140 dB) and Day/Night IR Cut Filter
- Maximum IR LED Distance 40 m (131.23 ft)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- 5-year Warranty (for products sold through an authorized Dahua dealer)
Camera
| Image Sensor | 1/1.8-in. 4 MP CMOS |
| Effective Pixels | 2688(H) x 1520(V) |
| RAM/ROM | 2 GB / 16 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.001 lux at F1.2 (1/3 s, 30 IRE) 0 lux at F1.2 (with IR on) |
| IR Distance | Distance up to 40.0 m (131.23 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Three (3) |
Lens
| Lens Type | Electric Zoom |
| Mount Type | Module Interface |
| Focal Length | 2.7 mm to 12 mm |
| Max. Aperture | F1.2 |
| Angle of View | Horizontal: 111° to 47° Vertical: 59° to 26° Diagonal: 135° to 51° |
| Optical Zoom | 4x |
| Aperture Control | Auto |
| Close Focus Distance | Wide: 1.0 m (3.29 ft) Tele: 2.50 m (8.20 ft) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, H.264H, MJPEG (sub stream only) |
| Streaming Capability | Five (5) Streams |
| Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP (2688 x 1520) at 60 fps |
| Sub Stream 1: 704 x 576 at 30 fps | |
| Sub Stream 2: 1080p (1920 x 1080) at 30 fps | |
| Sub Stream 3: 1080p (1920 x 1080) at 30 fps | |
| Sub Stream 4: 704 x 576 at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 32 Kbps to 10240 Kbps H.265: 12 Kbps to 10240 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, Ultra WDR (140 dB), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Advanced Features | Electronic Image Stabilization (EIS), Smart IR, Defog |
| Flip | 0°, 90°, 180°, 270° (supports 90° and 270° with 1080p resolution or lower) |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangular) |
Network
| Ethernet | RJ-45 (100/1000 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, ICMP, IGMP, 802.1x |
| Interoperability | ONVIF Profile S and G, CGI, P2P, RTMP |
| Auto Register | Support |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS) FTP, SFTP Micro SD Slot, maximum 256 GB |
| Web Viewer | IE (Version 9 and higher), Chrome (Version 42 and higher), Firefox (Version 48.0.2 or higher) |
| Management Software | SmartPSS, DSS Pro, IVSS |
| Mobile Operating System | IOS, Android |
| Video | One (1) Channel CVBS, BNC (for adjustment only) | |
| Audio | Input: One (1) Channel Output: One (1) Channel | |
| Alarm | Input: Three (3) Channels (5 mA, 5 VDC) Output: Two (2) Channels 1000 mA, 30 VDC 500 mA, 50 VAC | |
| RS485 | One (1) Port (Bit rate: 1200 bps to 115200 bps) | |
| Electrical | ||
| Power Supply | 12 VDC, 24 VAC, or PoE (IEEE 802.3af, Class 0) | |
Power Consumption | 12 VDC | Standard: 5.4 W with IR and ICR ON: 16.7 W |
| 24 VAC | Standard: 5.0 W with IR and ICR ON: 15.7 W | |
| PoE | Standard: 4.9 W with IR and ICR ON: 15.6 W |
