DH-IPC-HDBW8232EN-Z-SL - EOL





Part number:
DH-IPC-HDBW8232EN-Z-SL
Price:

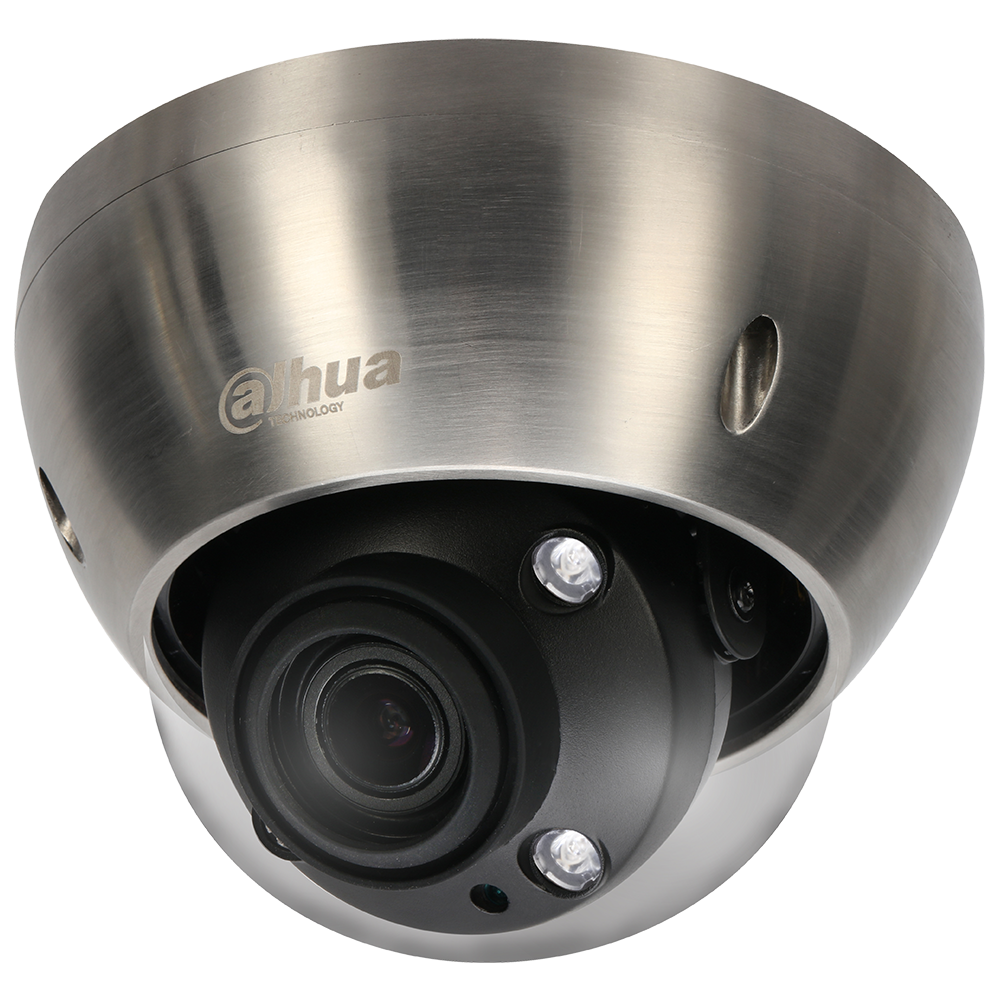

The Dahua 2 MP Ultra Series cameras offer high-resolution video and cutting-edge technology in a compact and accessible package. The Corrosion-resistant 316L Stainless Steel housing protects the camera in the harshest environments, ideal for use in coastal and marine applications, chemical plants, and other caustic environments. The cameras feature Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low-light environments. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.



Features:

  • 1/1.9-in. 2 MP Progressive-scan CMOS Sensor
  • Triple-stream Encoding
  • Smart H.265+ and H.264 Dual Codec
  • Starlight Technology for Ultra-low Light Sensitivity
  • 1080p at 60 fps
  • 4.1 mm to 16.4 mm Motorized Optical Zoom Lens
  • True Wide Dynamic Range (120 dB) and True Day/Night (ICR)
  • Maximum IR LED Distance 50 m (164 ft)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • PoE+ and Micro SD Card Support
  • 316L Stainless Steel Housing
  • Intelligent Video System with Business Analytics
  • Five-year Warranty (for products sold through authorized Dahua Dealers)

Camera

Image Sensor1/1.9-in. 2 MP Progressive Scan CMOS
Effective Pixels1920(H) x 1080(V)
RAM/ROM1024 MB / 128 MB
Scanning SystemProgressive
Minimum IlluminationColor: 0.002 lux at F1.53
0 lux at F1.53 with IR on
S/N RatioMore than 50 dB
IR DistanceUp to 50.0 m (164.04 ft)
IR On/Off ControlAuto, Manual
IR LEDsThree (3)

Lens

Lens TypeMotorized, Auto Iris (HALL)
Mount TypeBoard-in
Focal Length4.1 mm to 16.4 mm
Max. ApertureF1.53
Angle of ViewHorizontal: 32° to 92°
Vertical: 18° to 53°
Optical Zoom4x
Focus ControlMotorized
Close Focus Distance1000 mm (39.37 in.)

Video

CompressionSmart H.265+, H.265, Smart H.264+, H.264
Streaming CapabilityThree (3) Streams
Resolution1080p (1920 x 1080), 1.3 MP (1280 x 960),
720p (1280 x 720), D1 (704 x 480),
VGA (640 x 480), CIF (352 x 240)
Frame RateMain Stream: 1080p at 60 fps
Sub Stream 1: D1 at 60 fps
Sub Stream 2: 1080p at 60 fps
Bit Rate ControlCBR, VBR
Bit RateH.264: 24 to 10240 Kbps
H.265: 14 to 6144 Kbps
Day/NightAuto (ICR), Color, B/W
BLC ModeBLC, HLC, True WDR (120 dB), SSA
White BalanceAuto, Natural, Street Lamp, Outdoor, Manual
Gain ControlAuto, Manual
Noise Reduction3D DNR
Motion DetectionOff, On (4 Zone, Rectangle)
Region of InterestOff, On (4 Zone)
Advanced FeaturesElectronic Image Stabilization (EIS), Smart IR, Defog
Digital Zoom16x
Flip0°, 90°, 180°, 270°
MirrorOff, On
Privacy MaskingOff, On (4 Area, Rectangle)

Network

EthernetRJ-45 (100/1000 Base-T)
ProtocolHTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS,
UPnP,NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
InteroperabilityONVIF, PSIA, CGI
Streaming MethodUnicast, Multicast
Maximum User Access10 Users / 20 Users
Edge StorageNetwork Attached Storage (NAS) Local PC for Instant Recording MicroSD Card Slot, maximum 128 GB
Web ViewerIE, Firefox, Safari
Management SoftwareSmart PSS, DSS
Mobile Operating SystemIOS, Android
