DH-IPC-HFW5831EN-Z5E - EOL Replacement: DH-IPC-HFW5842EN-Z4E-S2 - EOL Replacement: N85FB6Z4
Part number:
DH-IPC-HFW5831EN-Z5E
Price:

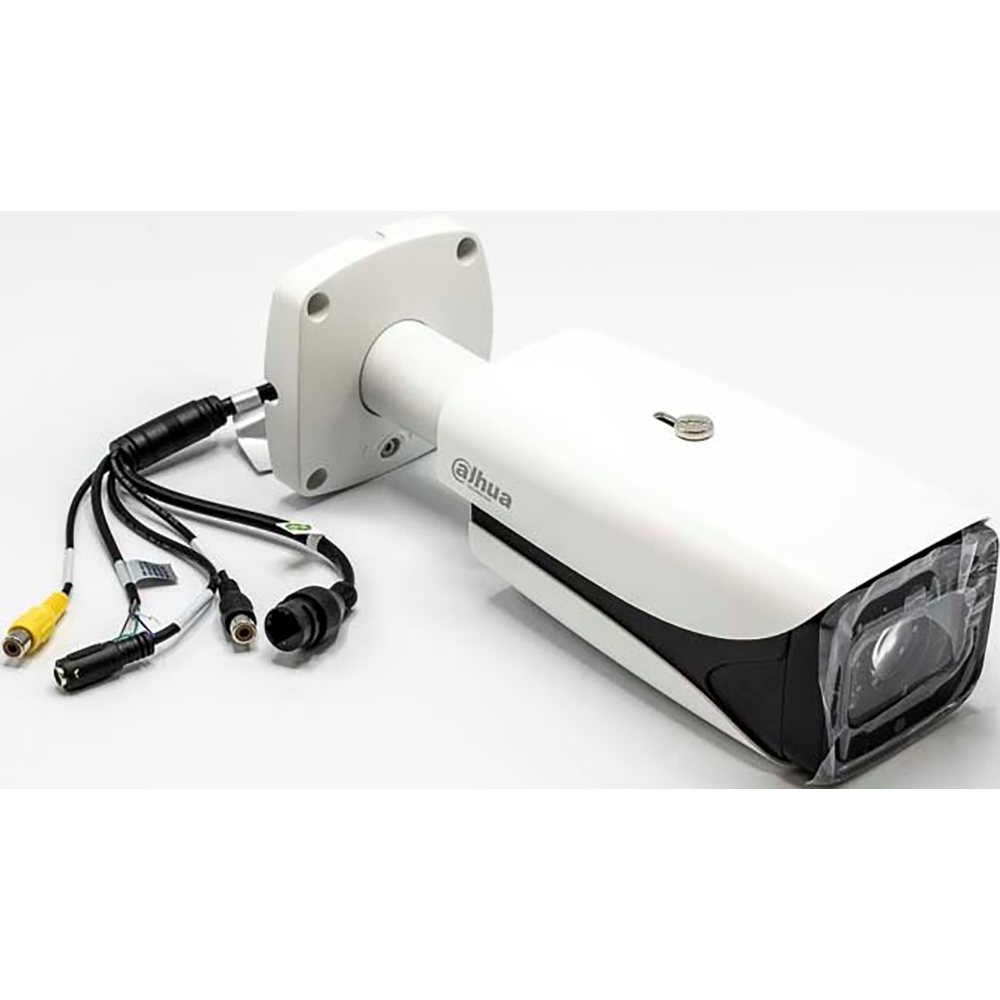

The 4K camera features an advanced 1/2.5-in. Progressive-scan STARVIS™ CMOS imager with a motorized optical zoom lens. The camera uses a 7 mm to 35 mm long-distance motorized optical zoom lens for long-distance imaging. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.
Features:
- 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS Sensor
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 8 MP at 15 fps, 3 MP at 30 fps
- 7 mm to 35 mm Motorized Optical Zoom Lens
- Enhanced Power and Data Transmission Distances with ePoE
- True WDR (120 dB) and True Day/Night (ICR)
- Maximum IR LED Length 100 m (328 ft) with Smart IR
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| Image Sensor | 1/2.5-in. 8 MP Progressive-scan STARVIS™ CMOS |
| Effective Pixels | 3840(H) x 2160(V) |
| RAM/ROM | 512 MB/32 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100,000 s |
| Minimum Illumination | Color: 0.05 lux at F1.4 (1/3 s, 30 IRE) Color: 0.2 lux at F1.4 (1/30 s, 30 IRE) 0 lux at F1.4 (IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Distance up to 100 m (328.08 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Four (4) |
Lens
| Lens Type | Motorized, Auto Iris (HALL) |
| Mount Type | Board-in |
| Focal Length | 7 mm to 35 mm |
| Maximum Aperture | F1.4 |
| Angle of View | Horizontal: 38° to 14° Vertical: 22° to 8° |
| Optical Zoom | 5x |
| Focus Control | Motorized |
| Close Focus Distance | 0.60 m (1.97 ft) |
