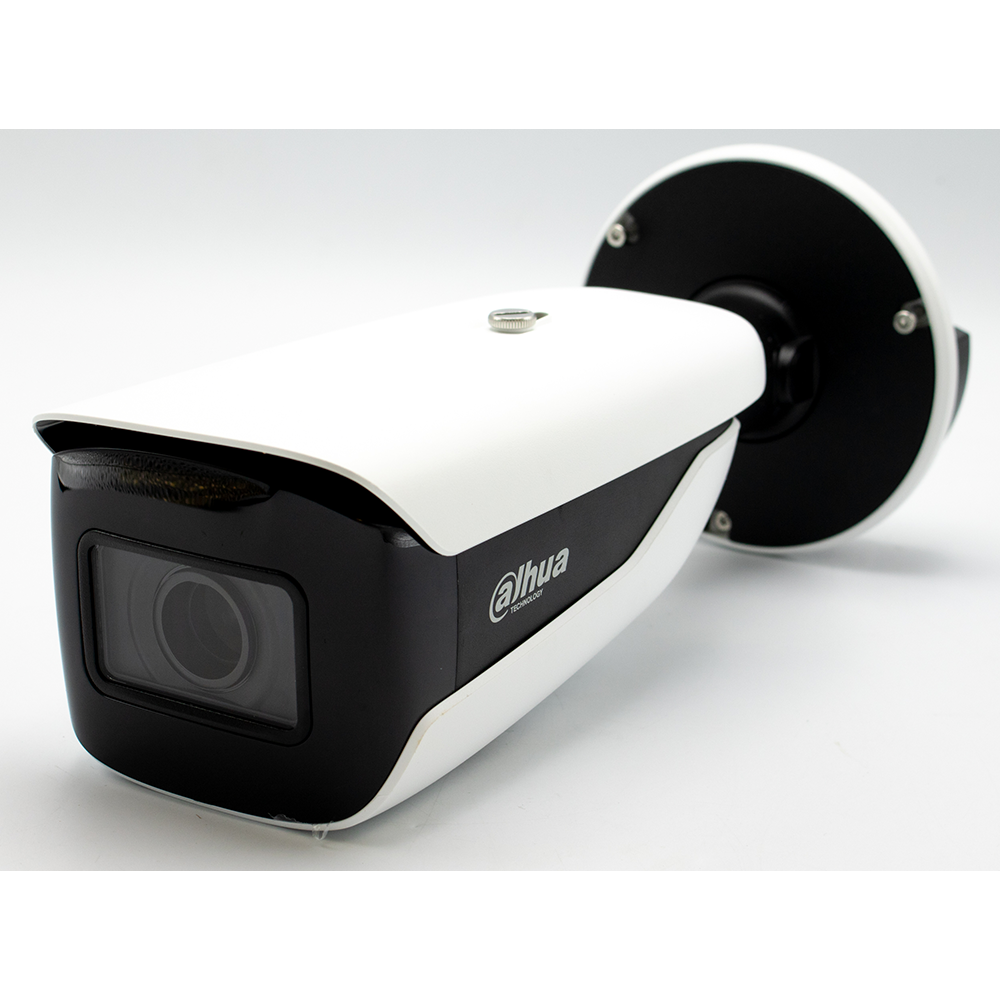

Dahua - DH-IPC-HFW7442HN-ZFR - 4MP IR Vari-focal Bullet ePoE Camera with Analytics+
Part number:
DH-IPC-HFW7442HN-ZFR
Price:

The Dahua 4 MP ePoE camera offers Analytics+ functions at the edge – performing complex real-time people counting, and perimeter protection surveillance. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Ultra Wide Dynamic Range and Smart IR technologies allow the camera to operate in any lighting condition and the IP67 and IK10 rating make the camera suitable for the harshest environments.



Features:

  • 1/1.8-in. 4 MP Progressive-scan CMOS Sensor
  • Five-stream Encoding
  • Smart H.265+ and Smart H.264+ Dual Codec
  • 4 MP (2688 x 1520) at 60 fps Maximum Resolution
  • 2.7 mm to 12 mm Motorized Vari-focal Lens
  • Enhanced Power and Data Transmission Distances (ePoE)
  • Analytics+ Functions — People Counting, Perimeter Protection, and Image Attribute Extraction
  • Ultra Wide Dynamic Range (140 dB) and Day/Night IR Cut Filter
  • Maximum IR LED Distance 50 m (164.04 ft)
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP67 Ingress Protection and IK10 Vandal Resistance
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

Camera

Image Sensor1/1.8-in. 4 MP CMOS
Effective Pixels2688(H) x 1520(V)
RAM/ROM2 GB / 16 GB
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual, 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.001 lux at F1.2 (1/3 s, 30 IRE)
0 lux at F1.2 (with IR on)
IR DistanceDistance up to 50.0 m (164.04 ft)
IR On/Off ControlAuto, Manual
IR LEDsFour (4)

Lens

Lens TypeElectric Zoom
Mount TypeModule Interface
Focal Length2.7 mm to 12 mm
Max. ApertureF1.2
Angle of ViewHorizontal: 111° to 47°
Vertical: 59° to 26°
Diagonal: 135° to 51°
Optical Zoom4x
Close Focus DistanceWide: 1.0 m (3.29 ft)
Tele: 2.50 m (8.20 ft)
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
Quick Start Guide
1mb
File
Specification
0mb
