DH-IPC-HUM8431N-E1 - EOL
Part number:
DH-IPC-HUM8431N-E1
Price:

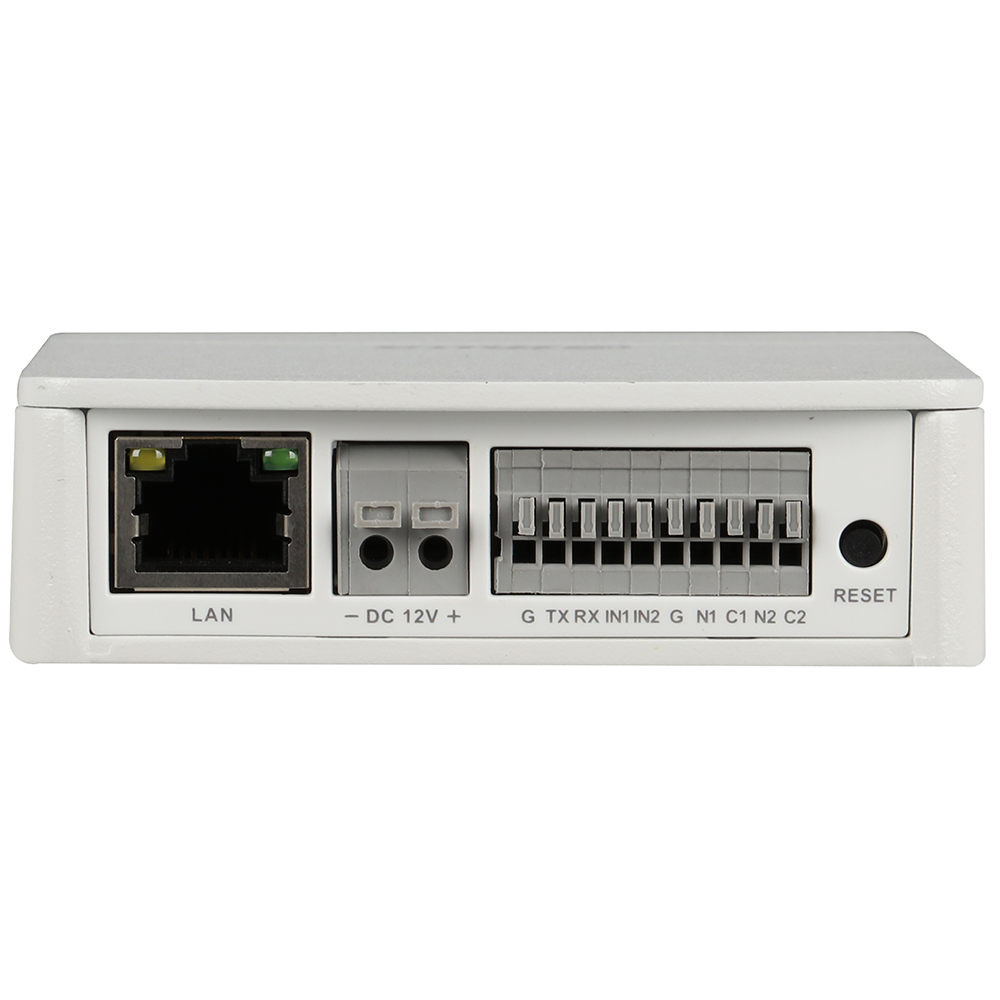

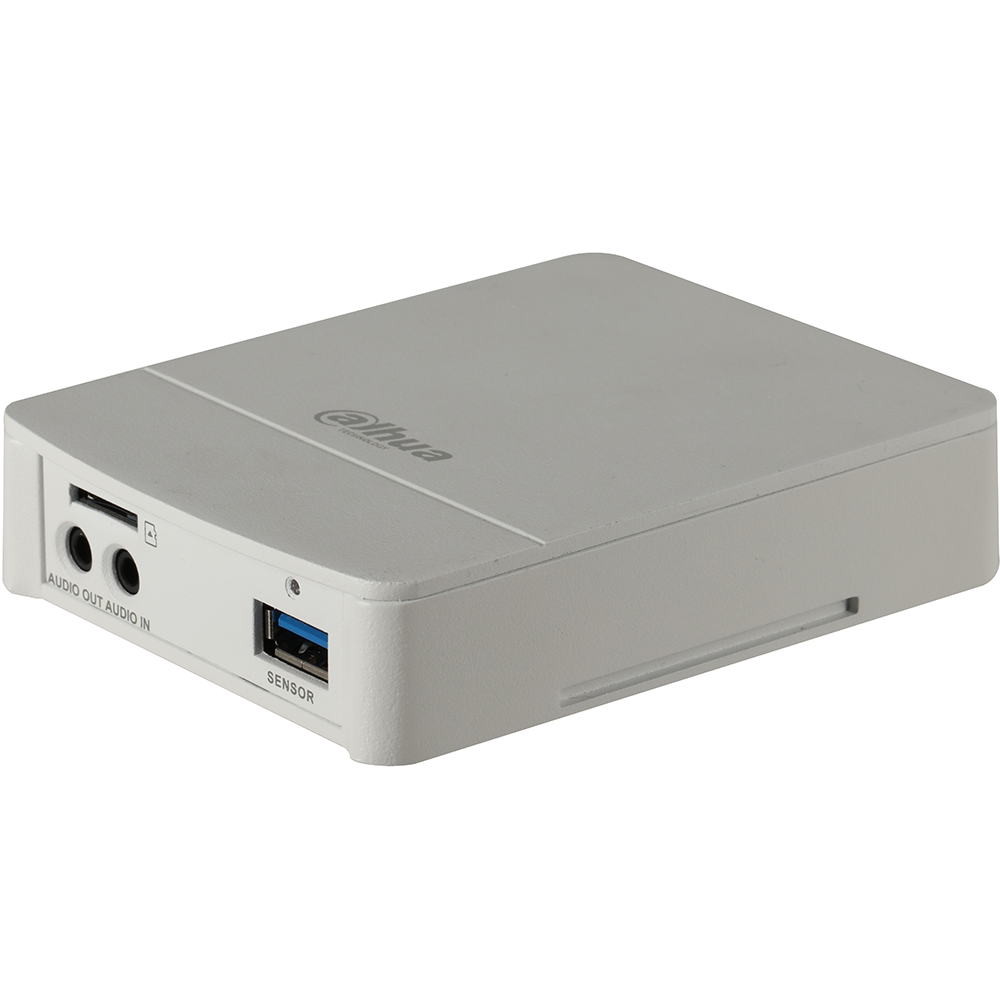

The Dahua DH-IPC-HUM8431N-E1 processing unit handles all of the power, network, and video processing requirements for the IPC-HUM8431-L3 Pinhole Network Camera. These two devices combine to create a covert camera system suitable for banks, offices, and anywhere that discrete video surveillance is required. The DH-IPC-HUM8431N-E1 features audio and alarm inputs and outputs, a Micro SD card slot for local recording, and offers the such advanced features as True Wide Dynamic Range, Smart H.265+ video compression, and Dahua’s Intelligent Video System (IVS).
Features:
- Processing Unit for IPC-HUM8431-L3 Network Covert Pinhole Camera
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codecs
- 4 MP at 30 fps Maximum Resolution
- True Wide Dynamic Range (120 dB)
- Intelligent Video System
- Micro SD Memory Card Support, up to 128 GB
- PoE Support
- Requires IPC-HUM8431-L3 Covert Network Pinhole Camera
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
| RAM/ROM | 512 MB / 32 MB |
| S/N Ratio | More than 50 dB |
Video (in conjunction with IPC-HUM8431-L3)
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 4 MP (2688 x 1520), 3 MP (2304 x 1296), 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 4 MP at 30 fps Sub Stream 1: D1 at 30 fps Sub Stream 2: 720p at 30 fps |
| Bit Rate Contro | CBR/VBR |
| Bit Rate | H.264: 24 Kbps to 10240 Kbps H.265: 14 Kbps to 9984 Kbps |
| Day/Night | Electronic |
| BLC Mode | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangle) |
| Region of Interest | Off, On (4 Zones) |
| Digital Zoom | 16x |
| Flip | 0°, 90°, 180°, 270° |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Areas, Rectangle) |
Audio
| Compression | G.711a, G.711Mu, AAC, G.726 |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | Network Attached Storage (NAS) Local PC for instant recording Micro SD Card Slot, 128 GB maximum |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Mobile Operating System | IOS, Android |
