DH-IPC-PDBW82041N-B360 - EOL
This product has been discontinued.
Part number:
DH-IPC-PDBW82041N-B360
Price:

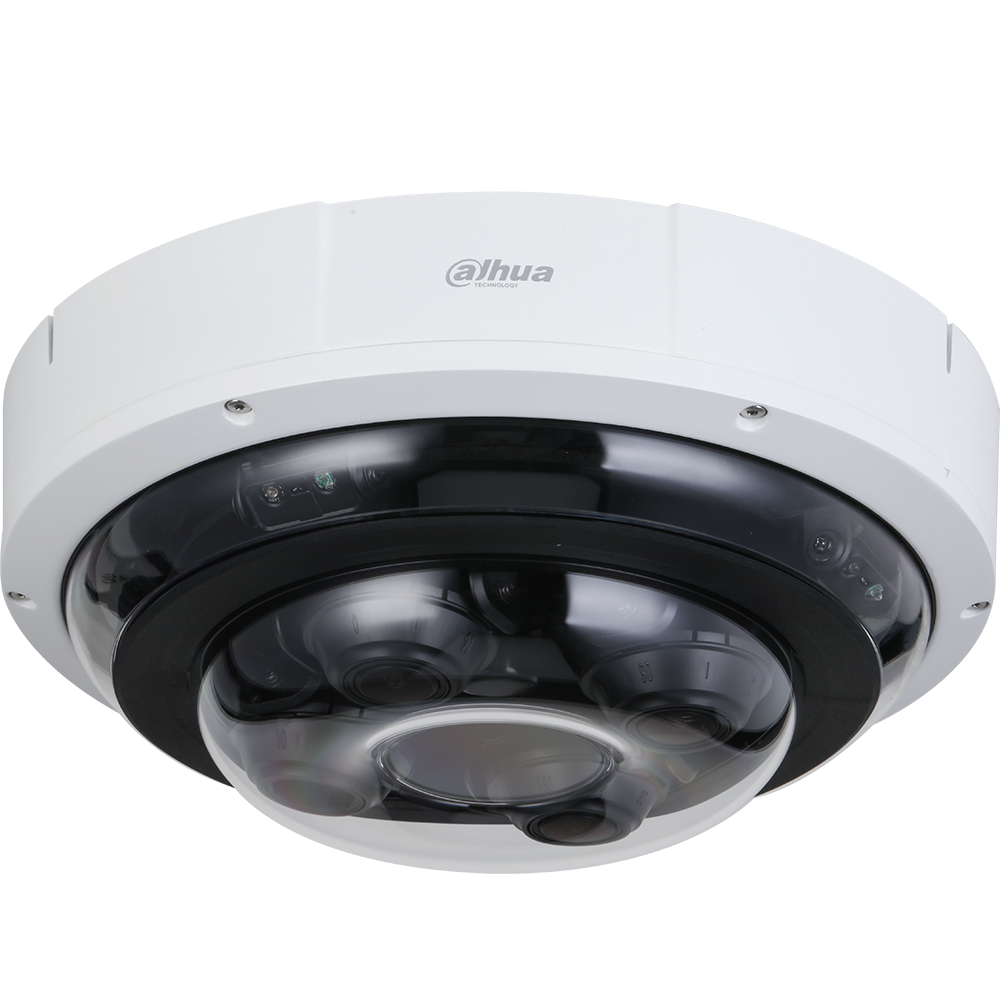

The Dahua DH-IPC-PDBW82041N-B360 Flexible Multi-sensor Dome Camera features four (4) 1/2.7-in. 5 MP Progressive-scan CMOS sensors each with a 2.8 to 12 mm motorized lens. Each sensor can be positioned and configured independently of the others allowing flexible, multi-directional video surveillance that replaces multiple single-sensor cameras and is ideal for monitoring large areas. The camera offers True Wide Dynamic Range, a True Day/Night IR Cut filter, IP67 Ingress protection and operation in extreme temperatures to deliver superior images in all lighting and environmental conditions.
Features:
- Four (4) Independent 1/2.7-in 5 MP CMOS Sensors
- Flexible Multi-directional IR Dome with four (4) 2.8 mm to 12 mm Motorized Zoom Lenses
- Triple-stream Encoding per Channel
- Smart H.265+ and Smart H.264+ Dual Codec
- 5 MP at 30 fps Maximum Resolution per Sensor
- FlexStream Consolidates Video from All Channels into a Single Stream
- Analytics+ Functions — Perimeter Protection and Face Detection
- Starlight Technology for Low Light Sensitivity
- True Wide Dynamic Range and True Day/Night (ICR) on all Channels
- Maximum IR LED Distance 30 m (98 ft)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua dealer)
| Technical Specification | |
| Image Sensor | Four (4) 1/2.7-in. 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V), per sensor |
| RAM/ROM | 4 GB/32 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto, Manual, 1/3 s to 1/100000 s |
| Minimum Illumination | Color: 0.005 lux at F1.7 |
| 0 lux at F1.7 (IR on) | |
| S/N Ratio | More than 56 dB |
| IR Distance | Distance up to 30 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Eight (8) total LEDs; Two (2) LEDs per sensor |
| Lens | |
| Lens Type | Motorized |
| Mount Type | ɸ 14 |
| Focal Length | 2.8 mm to 12 mm |
| Max. Aperture | F1.7 |
| Angle of View | Horizontal: 100° to 36° |
| Vertical: 74° to 27° | |
| Diagonal: 133° to 45° | |
| Focus Control | Motorized |
| Close Focus Distance | 0.80 m (2.60 ft) |
| Detect | |
| DORI | 66.0 m |
| (216.50 ft) | |
| Distance² | |
| 140.40 m | |
| (460.60 ft) | |
| Installation Angle | |
| Range | Pan: 0˚ to 360˚ |
| Tilt: 0˚ to 80˚ | |
| Rotation: 0˚ to 355˚ | |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264B, |
| H.264H, MJPEG (sub stream) | |
| Streaming Capability | Three (3) Streams per sensor |
| 5 MP (2592 x 1944), 4 MP (2688 x 1520), | |
| 3 MP (2048 x 1536), 2304 x 1296, 2 MP (1920 x 1080), | |
| 1.3 MP (1280 x 960), 720p (1280 x 720), VGA (640 x 480), | |
| Resolution | D1 (704 x 480), CIF (352 x 240) |
| 8 MP (3296 x 2472), 5 MP (2592 x 1944), | |
| 1600 x 1200, 1.3 MP (1280 x 960), | |
| D1 (704 x 480), CIF (352 x 240) | |
| Main Stream: 5 MP at 30 fps | |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 2 MP at 30 fps | |
| Frame Rate | |
| Main Stream: 1600 x 1200 at 30 fps | |
| Sub Stream 1: D1 at 30 fps | |
| Sub Stream 2: 8 MP at 30 fps | |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.264: 3 Kbps to 19456 Kbps |
| H.265: 3 Kbps to 19456 Kbps | |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, True WDR (120 dB, all channels), SSA |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional |
| Custom | |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Flip | 0°, 90°, 180°, 270° |
| (Supports 90°/270° with 1080p resolution or lower) | |
| Mirror | Off, On |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Audio | |
| Compression | PCM,G.711a, G.711Mu, AAC, G.726, G.723 |
| Network | |
| Ethernet | RJ-45 (10/100/1000 Base-T) |
| Protocol | HTTP, HTTPS, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, |
| DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP | |
| Interoperability | ONVIF(Profile S/Profile G/Profile T), CGI, Milestone, |
| Genetec, RTMP, P2P | |
| Streaming Method | Unicast/Multicast |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS) |
| Micro SD Card Slot, 256 GB maximum | |
| Web Viewer | IE 9 and later, Chrome 41.0 and later |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | UL 60950-1 CAN/CSA C22.2 No.60950-1-07 |
| EN62368-1 | |
| Electromagnetic Compatibility | CFR 47 FCC Part 15 Subpart B |
| Electromagnetic Compatibility Directive 2014/30/ | |
| (EMC) | |
| EU | |

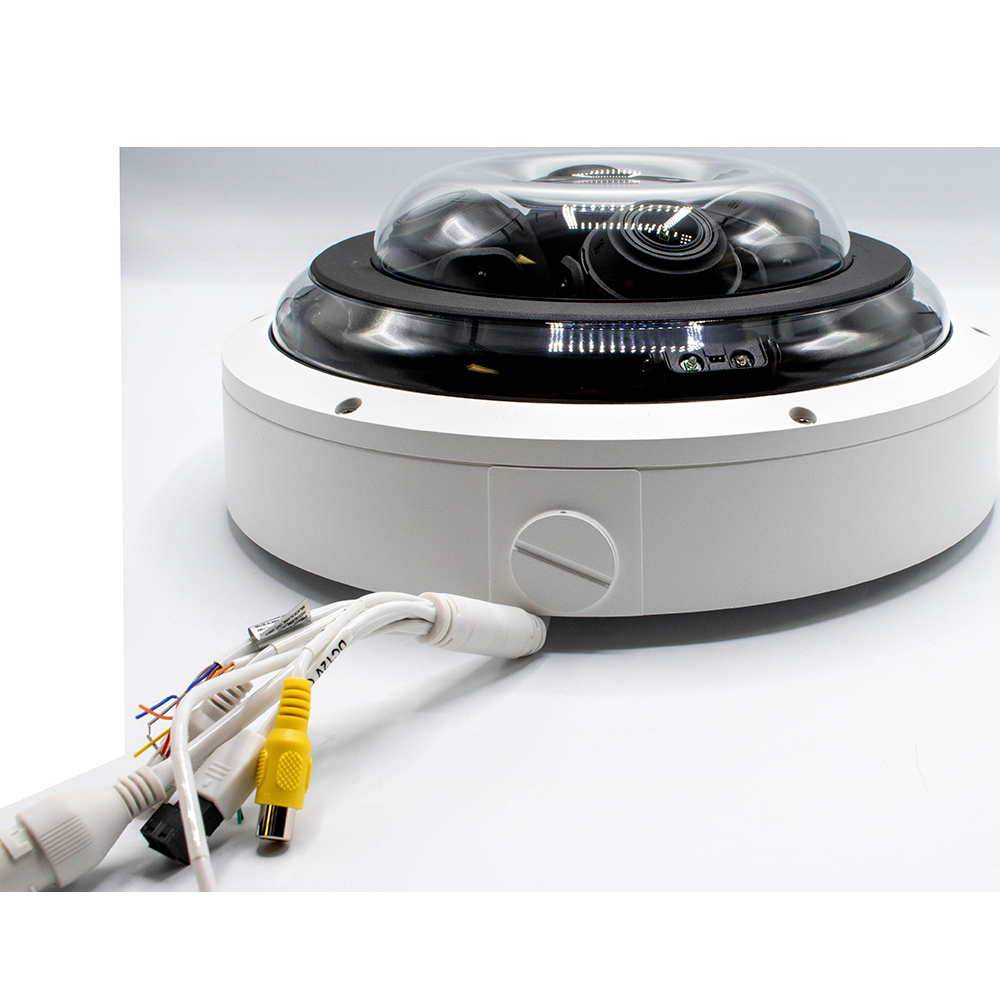

| Interface | |
| Audio | Input: One (1) Channel, RCA |
| Output: One (1) Channel, RCA | |
| RS485 | One (1) Port |
| (baud rate range: 1200 bps–115200 bps) | |
| Alarm | Input: Three (3) Channels (5 mA, 3 VDC to 5 VDC) |
| Output: Two (2) Channels (300 mA, 12 V) | |
| Electrical | |
| Power Input | 12 VDC, 1.65 A or PoE (IEEE802.3af Class 0) |
| Power Output | 12 VDC |
| 12 VDC: 8.1 W | |
| Power | PoE: 9 W |
| Consumption | 12 VDC: 21.5 W |
| PoE: 22.2 W | |
| Environmental | |
| Operating Temperature | –30° C to +60° C (–22° F to +140° F) |
| Less than 95% RH | |
| Storage Temperature | –30° C to +60° C (–22° F to +140° F) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Casing | Metal and Plastic |
| Dimensions | ø286.10 mm x 111.30 mm (ø11.26 in. x 4.38 in.) |
| Net Weight | 2.75 kg (6.06 lb) |
| Gross Weight | 4.50 kg (9.92 lb) |
| Analytics+ Functions | |
| • Detects human or vehicle violations using the | |
| following methods: | |
| Perimeter Protection | Tripwire: a target crosses a defined line. |
| Intrusion: a target enters or exits a defined | |
| perimeter. | |
| • Monitors a combination of detection methods. | |
| • Search and retrieve video based on target type. | |
| Face Detection | Detects faces from the video image. Supports detecting, |
| tracking, capturing and selecting the best face image, | |
| and then outputs face snapshot. |
