Dual 4MP 1/1.8-in. CMOS image sensor, Enhanced Night Color, Outputs max. 8MP (4096 × 1800) @25fps, 3.6mm Fixed lens, 0.0005 Lux @F1.0, Built-in white light LED, Max. LED distance: 131ft, Alarm: 1 in, 1 out, Audio: 1 in, 1 out, Built-in Mic and Speaker, Max. 512GB SD card, IP67, ePoE, EPTZ

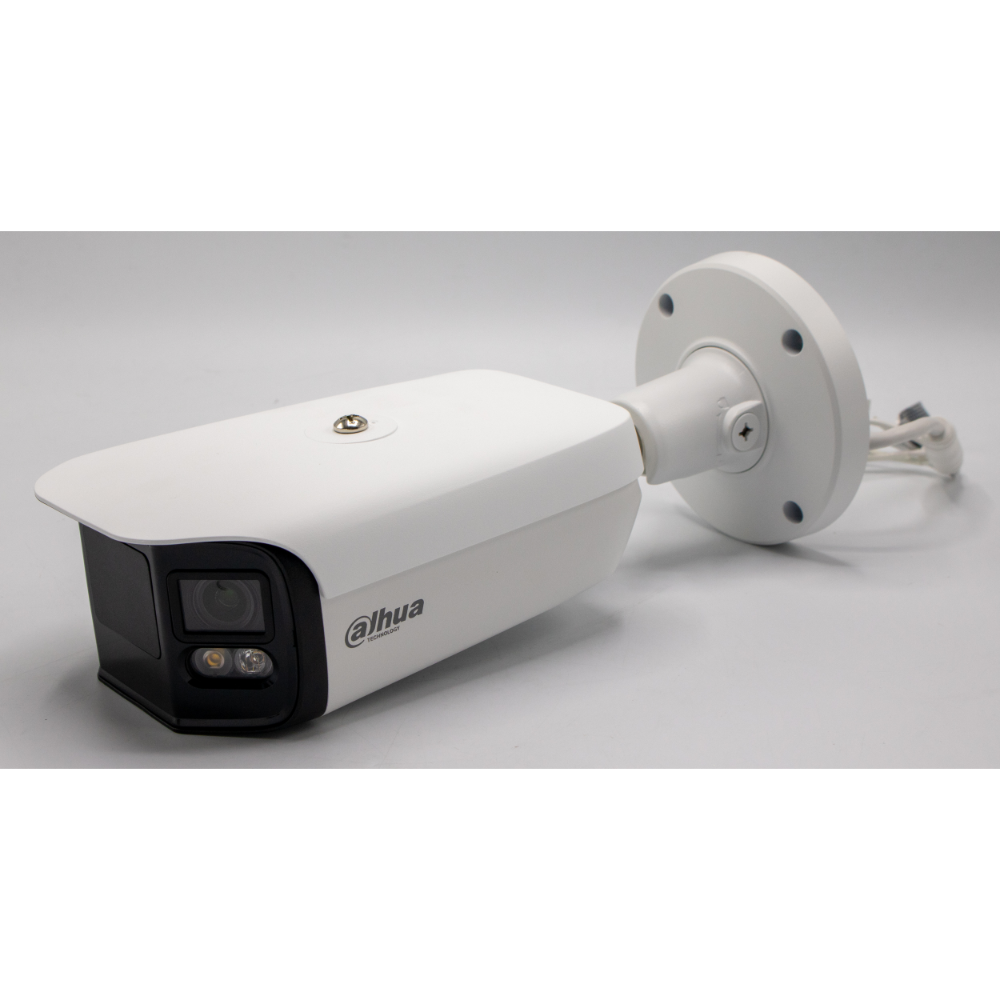

The Dahua 8MP Dual-Lens Stitching Night Color camera offers Analytics+ functions at the edge – performing complex real-time perimeter protection, Smart Motion Detection+, and People Counting. The Dahua Analytics+ algorithms significantly improve accuracy and reliability as compared to standard intelligent features. The camera is ideal for a host of diverse applications — Enhanced Night Color Technology and Ultra Wide Dynamic Range allow the camera to operate in any lighting condition and the IP67 rating makes the camera suitable for the harshest environments.
Features:
Technical Specification | |
Camera | |
Image Sensor | Dual 1/1.8-in. 4MP CMOS |
Effective Pixels | 4096 (H) × 1800 (V) |
RAM/ROM | 1 GB/128 MB |
Electronic Shutter Speed | 1/3 s to 1/100,000 s |
Minimum Illumination | Color (30 IRE): 0.005 Lux at F1.0 B/W (30 IRE): 0.0005 Lux at F1.0 IR (Illuminator On): 0 lux |
Illumination Distance | 40 m (131.23 ft) |
Illuminators | Four (4) Warm-light LEDs |
Illuminator On/Off Control | Auto |
Pan/Tilt/Rotation Range | Pan: 0° to 360° Tilt: 4° to 90° Rotation: 0° to 360° |
S/N Ratio | > 56 dB |
Lens
Lens Type | Fixed-focal | ||||
Lens Mount | M16 | ||||
Focal Length | 3.6 mm | ||||
Maximum Aperture | F1.0 | ||||
Angle of View | Horizontal | 55.8° to 2.9° | |||
Vertical | 31.6° to 1.6° | ||||
Iris Type | Fixed | ||||
Close Focus Distance | 3.6 m (11.81 ft) | ||||
DORI1 Distance | Detect | Observe | Recognize | Identify | |
70.3 m (230.64 ft) | 28.1 m (92.19 ft) | 14.1 m (46.26 ft) | 7.0 m (22.97 ft) |
Electrical
Power Supply | 12 VDC (±30%), PoE+ (802.3at), ePoE) |
Power Consumption | Basic: 4.8 W (12 VDC), 5.5 W (PoE) Maximum (WDR + Intelligence + Warm Light + SPK): 10.5W (12 VDC), 11.8 W (PoE) |
Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Operating Humidity | ≤ 95% |
Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Protection | IP67 |
Network
Ethernet | RJ-45 (10/100 Base-T) |
Protocol | IPv4, IPv6, HTTP,TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, DHCP, DNS, DDNS, QoS; UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP, Bonjour |
Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, SDK, API |
Maximum User Access | 20 Users (Total Bandwidth: 80 Mbps) |
Edge Storage | MicroSD Card (Max. 512 GB) |
Web Viewer | Microsoft Edge, Chrome |
Management Software | SmartPSS Lite, DSS, DMSS |
Mobile Operating System | Android, iOS |
Cybersecurity | Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account lockout, Security logs, IP/MAC filtering, Generating and Importing X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade |
Video
Compression | AI Coding, Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (Sub Stream Only) | |
Streaming Capability | Three (3) Streams | |
Resolution | 8MP (4096 × 1800), 6.5MP (3840 × 1680), 4MP (3840 × 1080), 4MP (2880 × 1264), 1.6MP (1920 × 832), 0.7MP (1280 × 560), 0.5MP (1024 × 452) | |
Frame Rate2 | Main Stream | WDR On: 4096 × 1800 at 20 fps WDR Off: 4096 × 1800 at 25 fps |
Sub Stream 1 | WDR On: 1024 × 452 at 20 fps WDR Off: 1024 × 452 at 25 fps | |
Sub Stream 2 | WDR On: 1920 × 832 at 20 fps WDR Off: 1920 × 832 at 25 fps | |
Bit Rate Control | CBR, VBR | |
Video Bit Rate | H.264: 9 kbps to 8192 kbps H.265: 9 kbps to 8192 kbps | |
Day/Night | Color, B/W | |
Backlight Compensation | BLC, HLC, Ultra WDR (140 dB) | |
White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom | |
Gain Control | Auto | |
Noise Reduction | 3DNR | |
Motion Detection | Off/On (4 Areas, Rectangular) | |
Region of Interest (RoI) | 4 Areas | |
Privacy Masking | 4 Areas | |
Advanced Features | Defog, Scene Self-adaption (SSA) |
