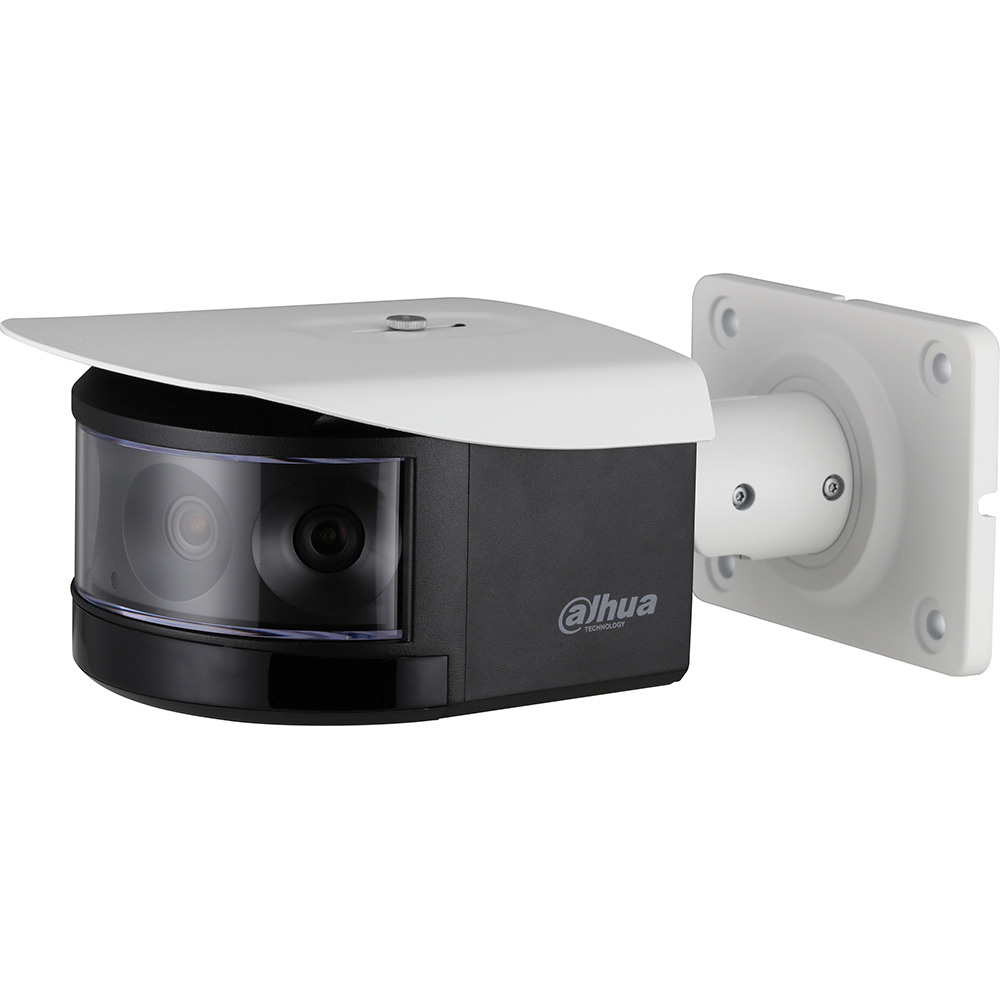

DH-IPC-PFW8601N-H-A180 - EOL
This product has been discontinued.
Part number:
DH-IPC-PFW8601N-H-A180
Price:
The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With three (3) 2MP sensors working in tandem to create a comprehensive 180° overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions.
Features:
- 3 x 2 MP Sensors for a 180° Panoramic View
- Starlight Technology for Ultra-low Light Sensitivity
- Smart H.265+ and H.264 Dual Codec
- True WDR
- True Day/Night
- Maximum Smart IR Distance 30 m (98 ft)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Intelligent Video System
- Onboard Storage
Camera
| Image Sensor | Three (3), 1/2.8-in. 2 MP CMOS Sensors |
| Effective Pixels | 4096 (H) x 832 (V) |
| RAM/ROM | 1024 MB / 128 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.007 Lux at F1.8 IR: 0 Lux at F1.8 (with IR on) |
| S/N Ratio | More than 50 dB |
| IR Distance | Up to 30 m (98.43 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Eight (8) |
Lens
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 3.6 mm |
| Max. Aperture | F1.8 |
| Angle of View | Horizontal: 180˚ Vertical: 44˚ |
| Focus Control | Fixed |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 4096 x 832, 3840 x 780, 2560 x 520, 1280 x 260, 1024 x 208 |
| Frame Rate | Main Stream: 4096 x 832 at 30 fps |
| Sub Stream 1: 1024 x 208 at 30 fps | |
| Sub Stream 2: 1280 x 260 at 30 fps | |
| Bit Rate Control | CBR, VBR |
| Bit Rate | H.264: 8 Kbps to 16 Mbps H.265: 4 Kbps to 10 Mbps |
| Day/Night | Auto (ICR), Color, B/W |
| BLC Mode | BLC, HLC, WDR (120 dB) |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zones, Rectangular) |
| Region of Interest | Off, On (4 Zones) |
| Smart IR | Support |
| Digital Zoom | 16x |
| Privacy Masking | Off / On (4 Areas, Rectangular) |
Network
| Ethernet | RJ-45 (100/1000 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP,FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 20 Users |
| Edge Storage | Network Assisted Service (NAS) Local PC for instant recording Micro SD Card Slot, maximum 128 GB |
| Web Viewer | Internet Explorer, Firefox, Safari |
| Management Software | Smart PSS, DSS, P2P |
| Mobile Operating System | IOS, Android |
