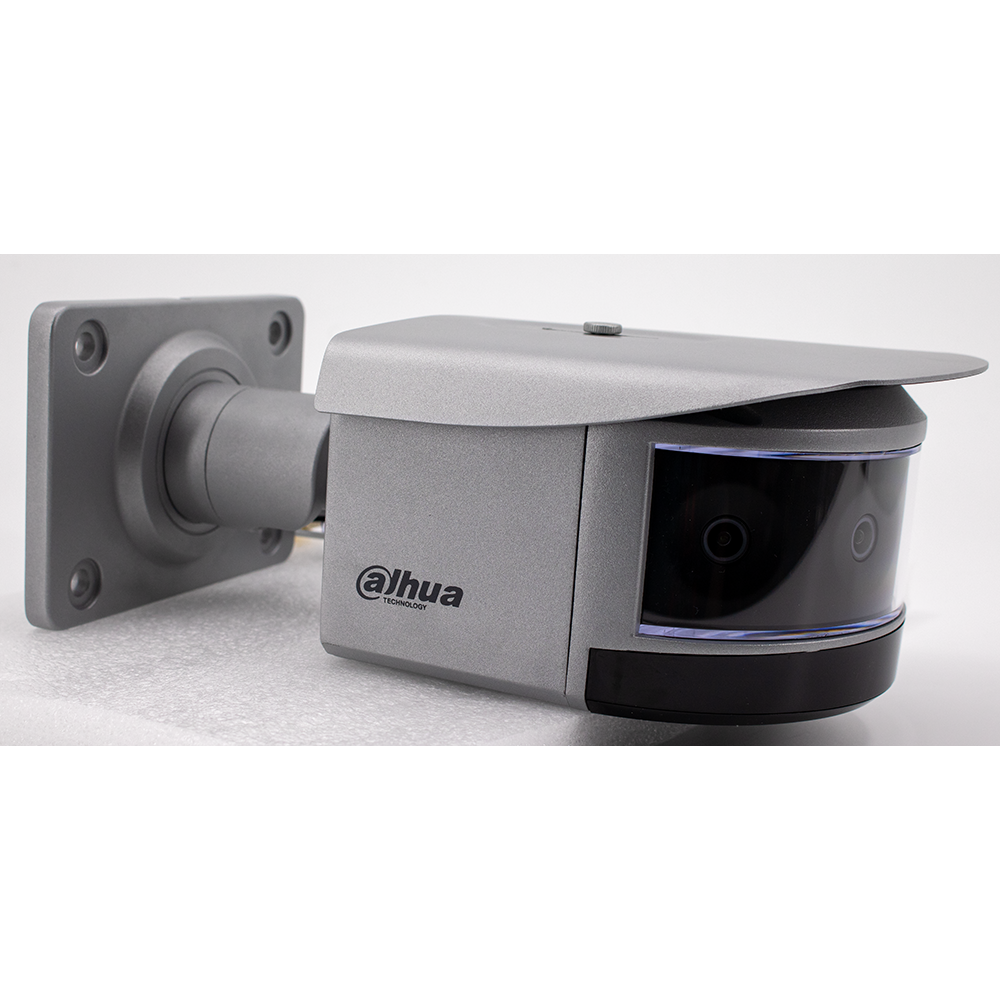

Dahua - DH-IPC-PFW8840N-A180 - 4x2MP IR 180° Multi-sensor Panoramic Network Bullet Camera
Part number:
DH-IPC-PFW8840N-A180
Price:
The multi-sensor camera provides added flexibility for capturing wide area video surveillance. With four (4) 2 MP sensors working in tandem to create a comprehensive 180° overview, the camera can replace multiple single-sensor cameras providing a higher return on investment. The multi-sensor camera features contrast, backlight compensation, white balance, and resolution control to create a crystal-clear image even in the most challenging lighting conditions. Plus, with IP67 and IK10 ratings, the camera is ready for any application.
Features:
- Four (4) 1/2.8-in. 2 MP Progressive Scan CMOS Imagers
- Triple-stream Encoding
- Smart H.265+ and Smart H.264+ Dual Codec
- Maximum Resolution: 4096 x 1800 at 30 fps
- Starlight Technology for Ultra-low Light Sensitivity
- Crowd and Vehicle Density
- Maximum IR LED Distance 30 m (98 ft)
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP67 Ingress Protection and IK10 Vandal Resistance
- Five-year Warranty (for products sold through an authorized Dahua Dealer)
| Image Sensor | Four (4) 1/2.8-in. 2 MP CMOS Sensors | ||
| Effective Pixels | 4096(H) x 1800(V) | ||
| RAM/ROM | 2GB/4GB | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | Auto, Manual: 1/3 s to 1/100,000 s | ||
| Minimum Illumination | Color: 0.002 lux at F1.6 0 lux at F1.6 with IR on | ||
| S/N Ratio | More than 56 dB | ||
| IR Distance | Up to 30.0 m (98.43 ft) | ||
| IR On/Off Control | Auto, Manual | ||
| IR LEDs | Six (6) | ||
| Lens | |||
| Lens Type | Fixed-focal | ||
| Mount Type | M12 | ||
| Focal Length | 2.8 mm | ||
| Max. Aperture | F1.6 | ||
| Angle of View | Horizontal: 180˚ | ||
| Vertical: 90˚ | |||
| Focus Control | Fixed | ||
| Close Focus Distance | 0.60 m (23.62 in.) | ||
| DORI Distance¹ | |||
| Detect (8 ppf) | Observe (19 ppf) | Recognize (38 ppf) | Identify (76 ppf) |
| 38.60 m (126.60 ft) | 15.40 m (50.50 ft) | 7.70 m (25.30 ft) | 3.90 m (12.80 ft) |
| Pan/Tilt/Rotation | |||
| Range | Pan: 0˚ to 355˚ | ||
| Tilt: 0˚ to 90˚ | |||
| Rotation: 0˚ to 360˚ | |||
| Video | |||
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG (sub stream only) | ||
| Streaming Capability | Three (3) Streams | ||
| Resolution | 4096 x 1800, 3840 x 1680, 2880 x 1264, 1920 x 832, 1280 x 560, 1024 x 452 Main Stream: 4096 x 1800 at 30 fps | ||
| Frame Rate | Sub Stream 1: 1024 x 452 at 30 fps Sub Stream 2: 1920 x 832 at 30 fps | ||
| Bit Rate Control | CBR, VBR | ||
| Bit Rate | H.265: 9 Kbps to 17664 Kbps H.264: 24 Kbps to 17664 Kbps | ||
| Day/Night | Auto (ICR), Color, B/W | ||
| BLC Mode | BLC, HLC, DWDR | ||
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off, On (4 Zone, Rectangle) |
| Region of Interest | Off, On (4 Zone) |
| Advanced Features | Smart Illumination, Defog |
| Digital Zoom | 16x |
| Privacy Masking | Off, On (4 Area, Rectangle) |
| Compression | PCM,G.711a, G.711Mu, AAC, G.726, G.723 |
| Network | |
| Ethernet | RJ-45 (10/100/1000 Base-T) |
| Protocol | HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, |
| DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP | |
| Interoperability | ONVIF (Profile S/Profile G/Profile T), CGI, P2P, Milestone, Genetec |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users (Total Bandwidth: 80 Mbps) |
| Edge Storage | Network Attached Storage (NAS), FTP, SFTP, Micro SD Card, maximum 128 GB |
| Web Viewer | IE version 9 and later |
| Firefox version 50 and later Chrome version 48 and later | |
| Management Software | DSS, DMSS |
| Mobile Operating System | IOS, Android |
| Certifications | |
| Safety | EN 62368-1 UL 60950-1 CAN/CSA C22.2 No.60950-1-07 |
| Electromagnetic | 47 CFR FCC Part 15 Subpart B |
| Compatibility (EMC) | Electromagnetic Compatibility Directive |
| Interface | |
| Video | One (1) Port, BNC (use for adjustment only) |
| Audio | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
| Alarm | Input: Two (2) Channels (3 VDC to 5 VDC, 5 mA) Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A) |
| RS485 | One (1) Port (baud rate range: 1200 bps–115200 bps) |
| Electrical | |
| Power Supply | 12 VDC, 24 VAC, or PoE+ (802.3at Class 4) |
| Power Consumption | < 16.2 W |
| Environmental | |
| Operating Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Storage Conditions | –40° C to +60° C (–40° F to +140° F), Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Construction | |
| Casing | Metal and Plastic |
| Dimensions | 298.30 mm x 172.50 mm x 120.50 mm |
| (11.74 in. x 6.79 in. x 4.74 in.) | |
| Net Weight | 2.86 kg (6.31 lb) |
| Gross Weight | 3.35 kg (7.39 lb) |
