DH-MV-VDM5021E-00 - EOL
This product has been discontinued.
Part number:
DH-MV-VDM5021E-00
Price:

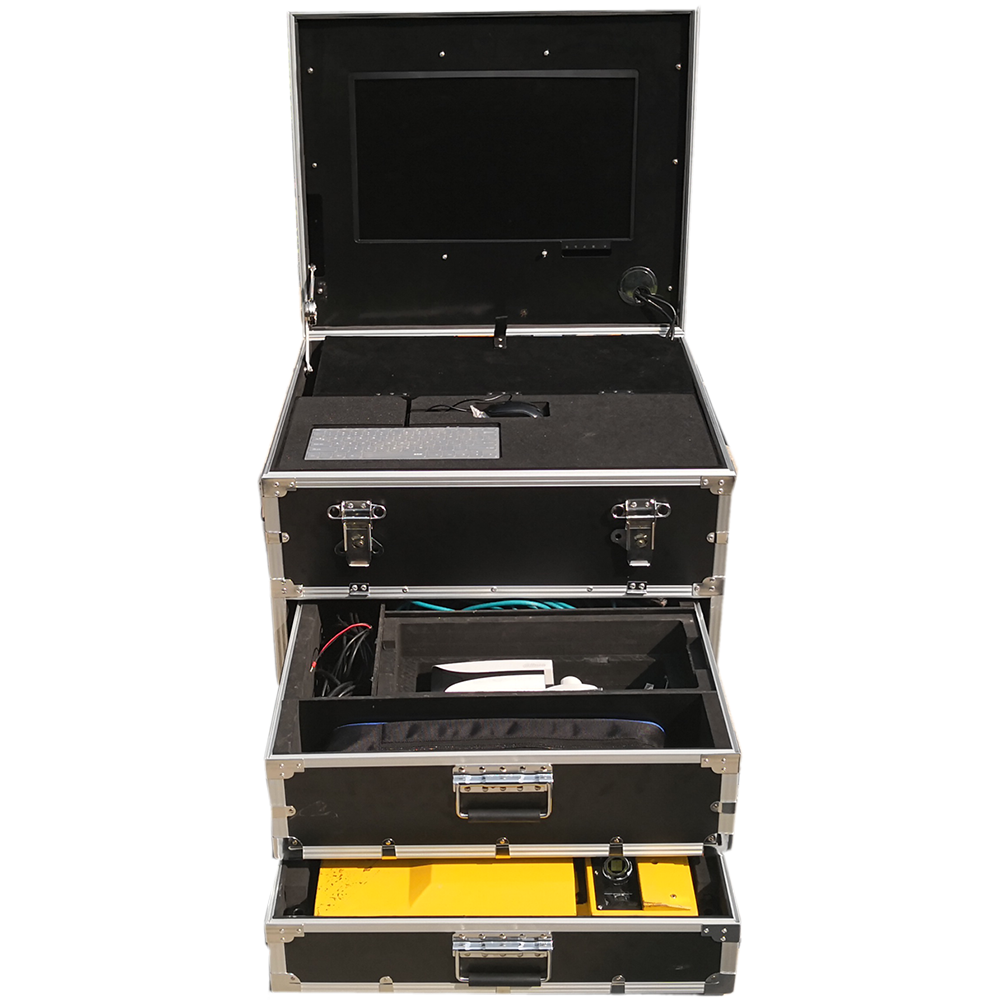

The Dahua Portable Under Vehicle Surveillance System (UVSS) uses machine vision technology to take a high-resolution image of the entire vehicle undercarriage to provide a top security solution. Portable UVSS is convenient for temporary vehicle checkpoints, such as exhibition centers, conference halls, temporary bases, and bridge checkpoints. The Portable UVSS system includes a monitor, keyboard, mouse, computer, LPC camera, scanning module, tripod, and cables.
Features:
- High Resolution Supporting 2 K Per Line and Maximum Image Resolution up to 20 MP
- Low Image Distortion
- Supports a Maximum Vehicle Speed of 80 kph (50 mph)
- Less Than One (1) Second to Synthesize Whole Vehicle Image
- Large Field of View, up to 170°, Captures the Entire Under Vehicle Image
System
| Resolution | 20 MP, maximum |
| Image Type | Color Image |
| Field of View | 170° |
| Imaging Time After Exit Trigger | < 1 s |
| Maximum Vehicle Speed | 80.0 kph (49.70 mph) Recommended: <50.0 kph (31.07 mph) |
| Compatibility | Chassis Height: ≥ 80.0 mm (0.26 ft) Chassis Width: ≤ 4500.0 mm (14.80 ft) |
| Load-Bearing | 10 tons (22,000 lb) |
| Case Material | Stainless Steel |
| Power Supply | 100 VAC to 240 VAC |
| Illumination | 250 W Dynamic LED Array |
| Operating Temperature | –35° C to +70° C (–31 °F to 158° F) |
| Operating Humidity | < 90% RH |
| Ingress Protection | IP68 |
Camera
| Image Sensor | 1/2.8-in. 2 MP STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0. 005 lux at F1.6 0 lux at F1.6 IR on |
| Focal Length | 2.7 mm to 12 mm |
| Max Aperture | F1.6 |
| Angle of View | Horizontal: 101˚ to 36˚ Vertical: 53˚ to 20˚ |
| Focus Control | Automatic |
| Focus Distance Range | 3 m to 8 m (9.84 ft to 26.25 ft) |
| Video Compression | H.265, H.264M, H.264H, H.264B |
| Frame Rate | 1080p at 30 fps |
| Ethernet | RJ45 (100/1000 Base-T) |
UVSS Controller
| Power Input | 36 V, 600 W |
| Power Output | Scan Camera: 36 V LED Modules: 32 V, 2.8 A, 80 W |
| Trigger | Input: Two (2) isolated channel signal of photoelectric input via loop sensor Output: Scan Camera, LED Modules |
| Communication | Scan Camera: Gigabit Ethernet (1000 Mbps), RS485 Host PC: Gigabit Ethernet (1000 Mbps) |
| Certification | CE, FCC, UL |
| Operating Temperature | –35° C to +60° C (–31° F to 140° F), Less than 95% RH Initiate Startup above –35° C (–31° F) |
| Storage Temperature | –40° C to +70° C (–40° F to 158° F), Less than 95% RH |
Computer
| Processor | CPU: Intel Duo Core I5-4570, 3.2 GHz System Chipset: Intel H81 BIOS: AMI 64 MB SPI BIOS |
| Memory | 8 GB DDR3L |
| Storage | 2 TB SATA HDD |
| Graphics | VGA and HDMI, Maximum Resolution: 1920 x 1600, 60 Hz |
| Ethernet | Two (2) x 10/100/1000 Mbps; One (1) x 10/100 Mbps |
| Audio | Line IN: Realtek HD Audio Plus, one (1) Line OUT and one (1) MIC IN |
| I/O | Serial: Two (2) x RS232 USB: Four (4) x USB 3.0 and two (2) USB 2.0 |
| Operating System | Windows Professional 7 SP1, 64-bit, English |
| Expansion | One (1) PCI Slot |
| Power Requirements | Input: 100 VAC to 240 VAC, 5 A to 3 A, 50/60 Hz Output Power Rating: 250 W |
| Environmental | Operating Temperature: 0° C to +60° C (32° F to 140° F) Storage Temperature: –20° C to +80° C (–4° F to 176° F) Humidity: 95% RH at 40° C (104° F), non-condensing Vibration: 1 Grms Shock: 10 G, with 11 ms duration, half sine wave EMC: CE, FCC Class A |
Monitor
| Resolution | 20 MP, maximum |
| Image Type | Color Image |
| Field of View | 170° |
| Imaging Time After Exit Trigger | < 1 s |
| Maximum Vehicle Speed | 80.0 kph (49.70 mph) Recommended: <50.0 kph (31.07 mph) |
| Compatibility | Chassis Height: ≥ 80.0 mm (0.26 ft) Chassis Width: ≤ 4500.0 mm (14.80 ft) |
| Load-Bearing | 10 tons (22,000 lb) |
| Case Material | Stainless Steel |
| Power Supply | 100 VAC to 240 VAC |
| Illumination | 250 W Dynamic LED Array |
| Weight | 15.0 kg (33.07 lb) |
| Dimensions | 490.0 mm x 398.0 mm x 88.0 mm (19.29 in. x 15.67 in. x 3.46 in. ) |
| Operating Temperature | –35° C to +70° C (–31 °F to 158° F) |
| Operating Humidity | < 90% RH |
| Ingress Protection | IP68 |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
