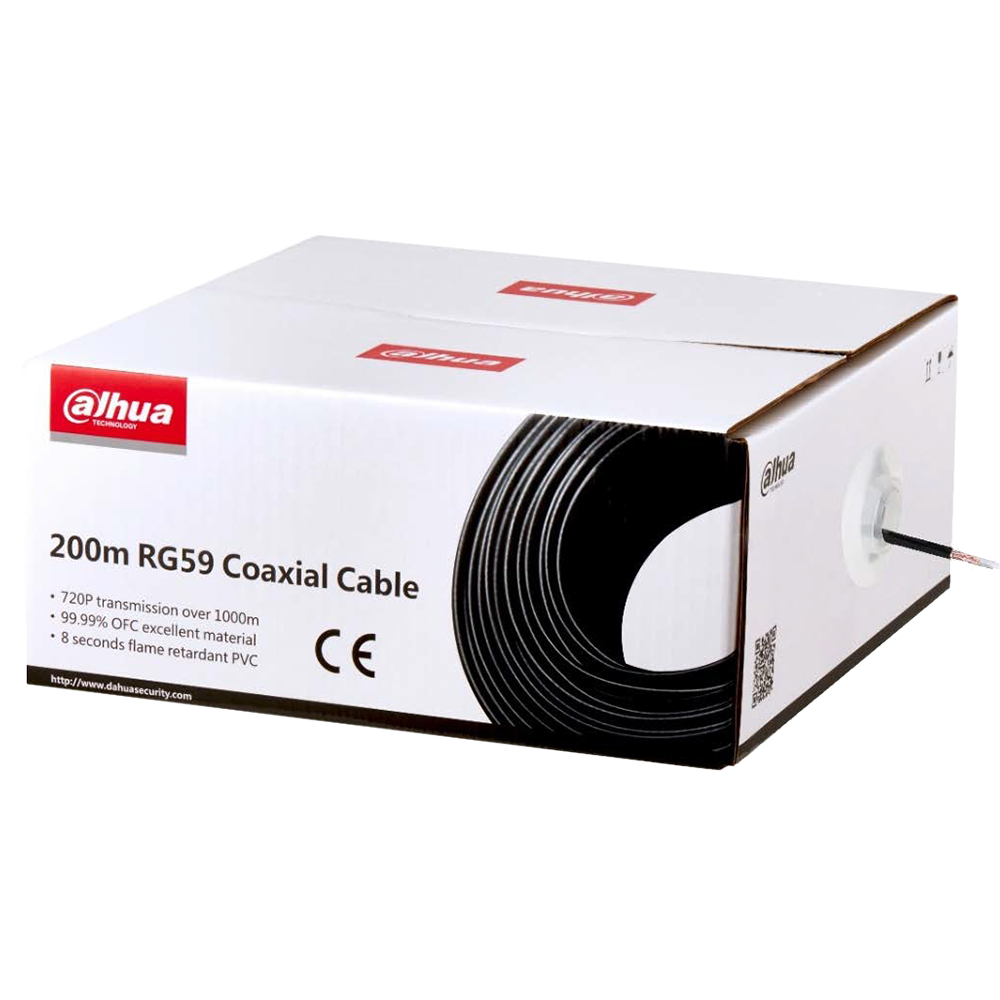

Type: RG59 Conductor: OFC/Braid: CCA Length: 200m Color: Black , RG59 Coaxial Cable
Features :
- 200 m (656.17 ft) RG59 Coaxial Cable
- Over 1000 m (3280.84 ft) Transmission Distance (at 720p)
- 99.99% Oxygen-free Copper
- Cable Sheath Flame Retardant for 8 Seconds
Conductor
| Material | Oxygen-free Copper (OFC) |
| Wire Gauge | 20 AWG (0.80 mm [0.031 in.]) |
Insulation
| Material | FPE |
| Diameter | 3.70 mm ± 0.05 mm (0.015 in. ± 0.0002 in.) |
Tape
| Material | Aluminum Foil |
| Thickness | 0.04 mm (0.0016 in.) |
Braid
| Material | Copper-clad Aluminum |
| Structure | 0.12 mm (0.0047 in.) x 64 (16 x 4)) |
Jacket
| Material | PVC |
| Minimum Average Thickness | 0.90 mm (0.035 in.) |
| Diameter | 6.10 mm ± 0.20 mm (0.24 in. x ± 0.008 in.) |
| Color | Black |
General
| Length | 200.0 m (656.17 ft) |
| Mark Spacing | 1.0 m (3.28 ft) |
| Impedance | 75 Ω ± 2 Ω |
Name
Description
Size
Downloads
File
Datasheet
0.4mb
