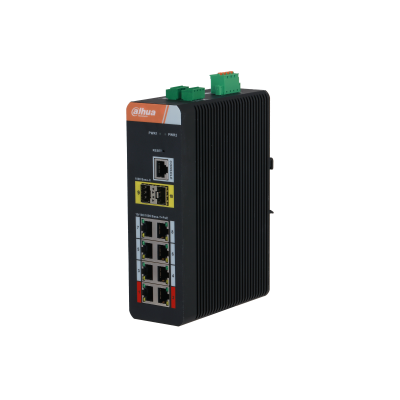

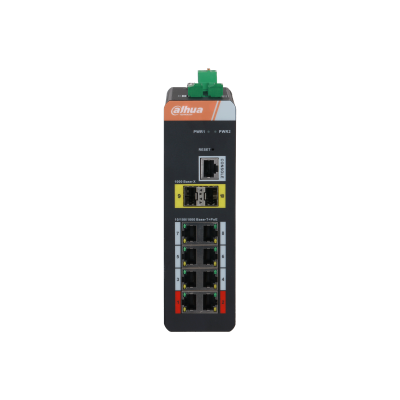

Dahua - DH-PFS4210-8GT-DP - 8-Port Industrial PoE Gigabit Switch
Part number:
DH-PFS4210-8GT-DP
Price:

The switch is IP40-rated and DIN-rail mountable. It supports dual power input for power redundancy and wide working temperature range. The switch also provides high EFT and ESD protection for industrial networking applications such as outdoor security surveillance, ITS, power, factory and other outdoor or harsh environments.



The DH-PFS4210-8GT-DP is an 8-port Gigabit PoE Industrial Switch supports the IEEE 802.3af/at standard. Two of the ports support Hi-PoE to provide 60 W via a single port. The switch DH-PFS4210-8GT-DP is a Layer 2 managed industrial PoE switch and supports Web, SNMP and also CLI network management. The switch also supports ring network redundancy using standard STP/RSTP/MSTP protocols and also supports rich features such as VLAN, Link Aggregation, Port Mirroring, Flow Control, IGMP Snooping, SNMP, ROMN, ACL, QoS, and Static IP Routing.



Features:



  • Layer 2 Managed Industrial PoE Switch
  • Supports IEEE802.3af, IEEE802.3at, and Hi-PoE (60 W) Standards
  • Supports STP/RTSP/MSTP for Network Redundancy
  • Rich L2 Features, Including: VLAN, Link Aggregation, IGMP Snooping
  • Web, SNMP, and CLI Management
  • Ability to Daisy Chain Positive Terminals
  • IP40 Ingress Protection, Fully-sealed Metal Enclosure
  • Dual Power Input for Power Redundancy
  • Wide Temperature Range for Industrial Applications
Hardware
Included Power AdapterNo
PoEYes
Ethernet Port8
Optical Port2
Ethernet Port Speed10 Mbps/100 Mbps/1000 Mbps
Optical Port Speed1000 Mbps
Console Port1
Power Supply Mode48 V–57 V DC
Operating Temperature–40 °C to +75°C (–40 °F to +167 °F)
Operating Humidity10%–90% (RH)
Power ConsumptionIdling: ≤ 6 W
Full load: 120 W
Performance
LayerL2
ManagedYes
Switching Capacity28 Gbps
Packet Forwarding Rate14.88 Mpps
Packet Buffer Size4 Mbits
Communication StandardIEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
MAC Table Size8K
Function
PoE ProtocolIEEE 802.3af (PoE); IEEE 802.3at (PoE+); Hi-PoE; IEEE 802.3bt
PoE PowerPort 1-2: ≤ 90 W
Port 3-8: ≤ 30 W
Total: ≤ 120 W
PoE Power Consumption ManagementPower consumption management
PoE power on and off
Power off when PoE power is overloaded
Green PoE
PoE Pin Assignment1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Long Distance PoE TransmissionYes
Jumbo Frame9,000 bytes
Spanning Tree ProtocolERPS
VLAN Function802.1Q
Flow ControlFull-duplex flow control (back pressure)
Full-duplex flow control (PAUSE)
Link AggregationStatic link aggregation; LACP
Port MirroringMultiple-to-one port mirroring
MulticastYes
DHCP FunctionDHCP client
DHCP-Server
DHCP-Snooping
SecurityUser management
HTTPS
SSH
SNMP V1/V2C/V3
RMON
ACL
IP source guard
Port/VLAN-based ARP check
Static ARP check
Dynamic ARP check
802.1x
Loop protection
QoSCoS/DPL/PCP/DEI-based QoS
8 output queue for each port
Port shaping
Port tag remarking
DSCP-based QoS
MaintenanceUploading/downloading configuration files
Online upgrade
System logs
Device ManagementWeb (HTTP and HTTPS protocol); SNMP
General
Statics ProtectionAir discharge: 8 kV
Contact discharge: 6 kV
Lightning ProtectionCommon mode: 6 kV
Differential mode: 4 kV
Net Weight1.25 kg (2.76 lb)
Gross Weight1.52 kg (3.35 lb)
Product Dimensions125.4 mm × 53.5mm ×175.0 mm (4.9” × 2.1”× 6.9") (L × W × H)
Packing Dimensions254 mm × 287 mm × 101 mm (10.00” × 11.3”× 3.97") (L × W × H)
