DH-PFS4226-24ET-240 - EOL
Part number:
DH-PFS4226-24ET-240
Price:

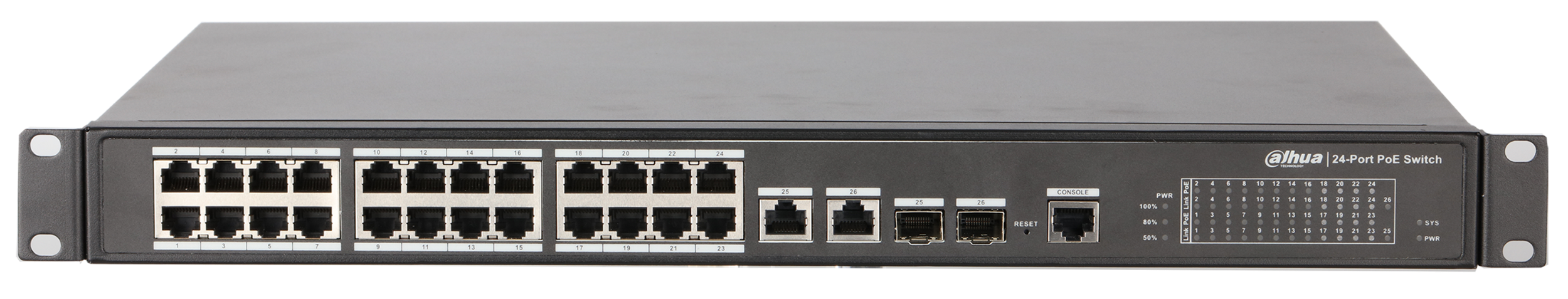

Dahua - DH-PFS4226-24ET-240 - 24-Port Managed PoE Switch
Features:
- Layer 2 Management PoE Switch
- PoE budget: 240W
- Supports PoE, PoE+, Hi-PoE
- One Port Supports Hi-PoE (can be used with the PoE extender – PFT1300)
- 250-Meter Long-distance PoE Transmission
- PoE Management, PoE Setting/Event Statistics/Green PoE
- Search and Upgrade via ConfigTool
- Supports Web Management
- Lightning Protection Design
- Non-blocking Video Transmission
| Ethernet Ports | Two (2) 10/100/1000 Base-T (Combo Port) Two (2) 1000 Base-X (Combo Port) 24 x 10/100 Base-T Ports (PoE Power Supply) |
| PoE Power Consumption | Ports 1 and 2: Hi-PoE (60 W), PoE+, PoE Maximum per Port: ≤ 30 W Total Power Consumption: ≤ 240 W |
| PoE Protocol | PoE (IEEE802.3af), PoE+ (IEEE802.3at), Hi-PoE |
| Switching Capacity | 8.8 Gbps |
| Packet Forwarding Rate | 6.55 Mpps |
| Power Requirements | 100 VAC to 240 VAC |
| Working Temperature | -10° C to 55° C (14° F to 131° F) |
| Application Humidity | 10% to 90% |
| Lightning Protection | Common Mode: 4 KV Differential Mode: 2 V |
| Dimensions (W x D x H) | 440.0 mm x 300.0 mm x 44.0 mm (17.32 in. x 11.81 in. x 1.73 in.) |
| Weight | 3.51 kg (7.74 lb) |
