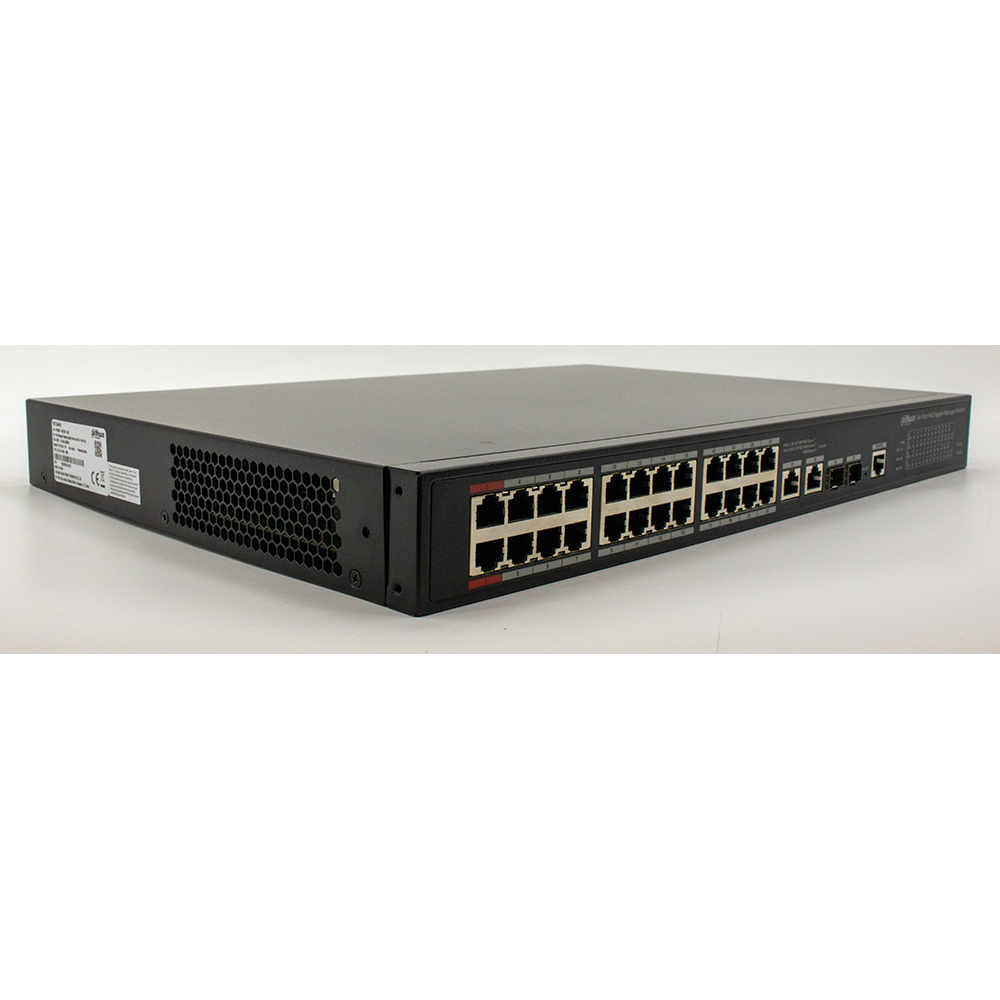

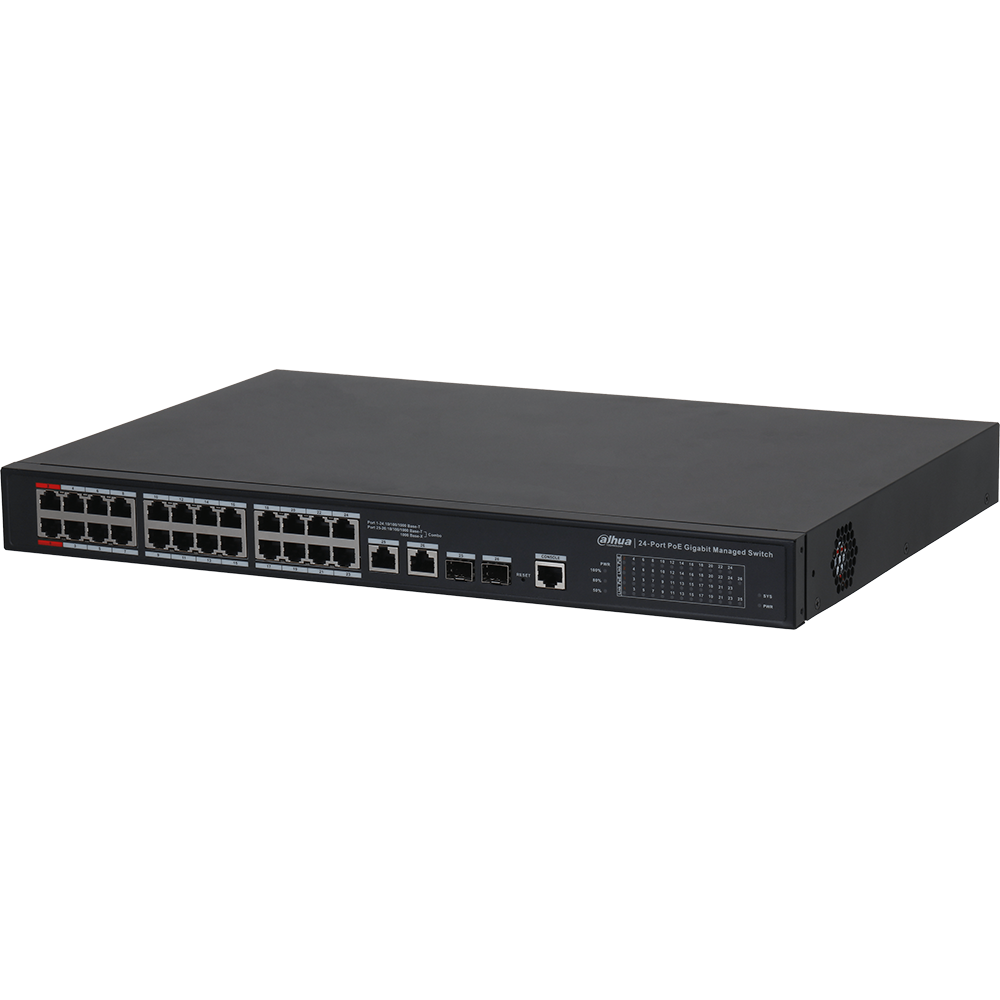

The 24-port managed desktop switch is designed for field transmission applications and for high-definition video. The switch is equipped with a high-performance switching engine, a large buffer, low transmission delay, and high reliability. In addition to the 24 PoE ports, the switch offers two (2) gigabit uplink combo ports with a PoE budget of 360 W. The switch also delivers powerful network management functions including CLI, iLinksView, and Web and network management software based on SNMP.

The switch supports IEEE 802.3bt technology that delivers 90 W via a PoE port and drives high-power infrastructure for smart building systems, safe cities, thin clients, and many more applications. With this standard, the switch can power IT and IoT devices that demand increased power consumption resulting in lower installation and wiring costs.

Features:

• Layer 2 Network Management PoE Ethernet Switch
• Total PoE Budget 360W
• Twenty-Four (24) 100 Mbps Ethernet Ports and Four (4) 1000 Mbps Uplink Ports (2 RJ45 + 2 Optical Combo)
• Supports IEEE802.3af, IEEE802.3at, Hi-PoE, and IEEE802.3bt Standards
• Supports PoE 2.0: Up to 90 W Output per Red Port, Long-Distance Transmission Up to 820 ft, PoE Watchdog, Intelligent PoE
