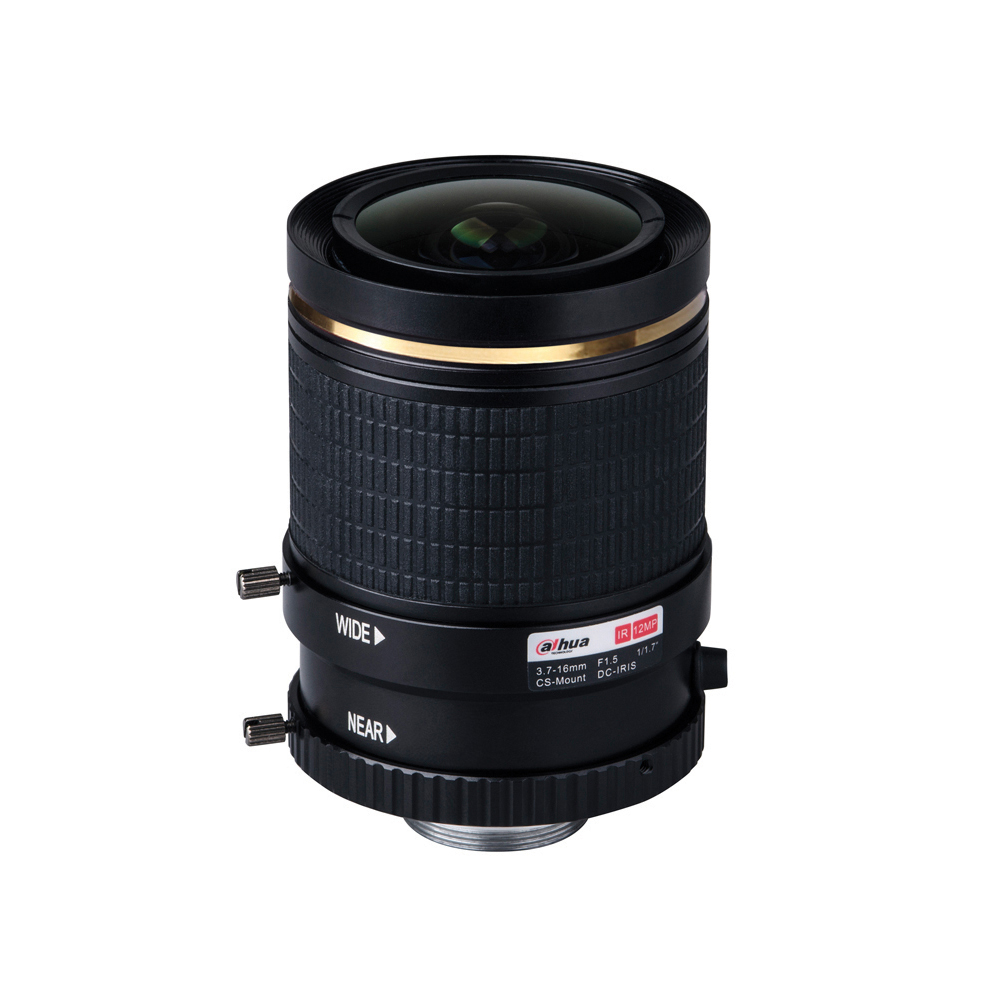

12MP 3.7 mm to 16 mm Vari-focal Lens
Features :
- Image Format: 1/1.7-in.
- Focal Length: 3.7 mm to 16 mm
- Aperture: F1.5
- Field Angle: W: 145° x 109° x 79°, T: 35.6° x 28.5° x 21.4°
- M.O.D.: 0.5 m
- TV Distortion: -30 % (Wide)
- IR Correction: Yes
- Lens Control
- Focus: Manual
- Zoom: Manual
- Iris: DC-Iris
- Mount: CS
- Dimension: ø54.0 mm x 82.80 mm (ø2.13 in.x 3.26)
- Weight: 270 g (0.60 lb)
- Operating Temperature: -30° C to +70° C (-22° F to 158° F)
| Image Format | 1/1.7-in. |
| Focal Length | 3.7 mm to 16 mm |
| Resolution | 12 MP |
| Aperture | F1.5 |
| Mount | CS |
| Field of View (D x H x V) | Wide:145.0° x 109.0° x 79.0° Tele: 35.6° x 28.5° x 21.4° |
| Lens Control | Focus: Manual Zoom: Manual Iris: DC-Iris |
| IR Correction | Supported |
| Minimum Object Distance | 0.50 m (1.64 ft) |
| Dimensions | 54.0 mm x 82.85 mm ( 2.12 in. x 3.26 in.) |
| Weight | 0.27 kg (0.60 lb) |
| Operating Temperature | –30° C to 70° C (–22° F to 158° F) |
| Operating Humidity | < 90% RH |
