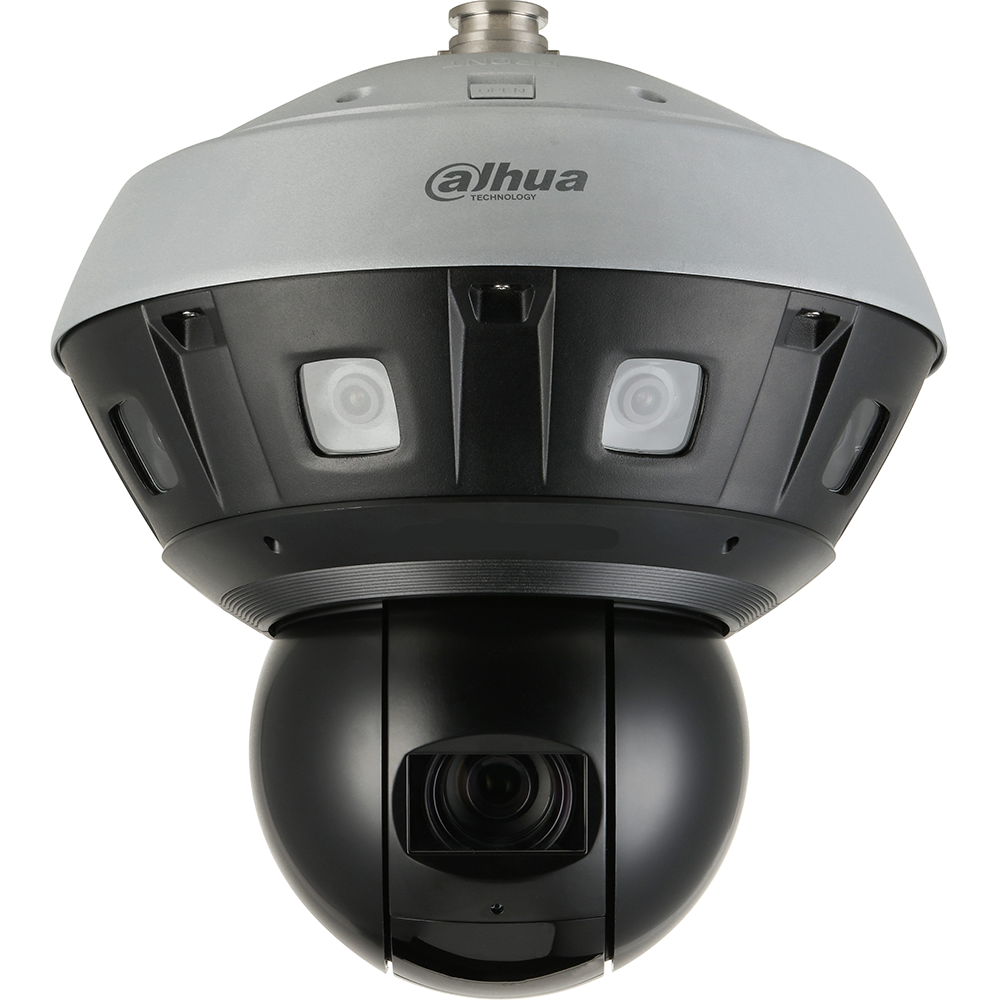

Dahua - DH-PSDW81642M-A360 - 8 x 2MP Multi-Sensor Panoramic Network Basic Starlight Camera + PTZ Camera
Part number:
DH-PSDW81642M-A360
Price:

The Dahua Panoramic Multi-sensor plus PTZ camera combines eight (8) 2 MP sensors working in tandem to create a comprehensive 360° view, and a high-speed PTZ camera to focus on a specific area of the scene. With its all-in-one design, the camera provides a 360° panorama and provides region of interest details at the same time. The camera offers the Intelligent Video System (IVS), a built-in video analytic algorithm that delivers intelligent functions to monitor a scene for tripwire violations and intrusion detection, and Smart Tracking technology that integrates the width of the panoramic scene with the tracking capability of the PTZ camera. The Multi-sensor plus PTZ camera can replace multiple single-sensor cameras providing a higher return on investment.



Features:

  • Panoramic Camera: Eight (8) 1/1.8-in. 2 MP Progressive-scan CMOS Imagers for a 360° Panoramic View
  • PTZ Camera: One (1) 1/1.8-in 4 MP Progressive-scan CMOS Imager
  • Triple-stream Encoding
  • 8192 x 1800 at 30 fps (Panoramic) plus 2560 x 1440 at 30 fps (PTZ)
  • Smart H.265+ and Smart H.264+ Dual Codecs
  • Starlight Technology for Ultra-low Light Sensitivity
  • Crowd and Vehicle Density
  • ArcticPro Series Camera – Operational down to –40° C (–40° F)
  • IP66 Ingress Protection
  • Zoom Priority for Optimal IR Coverage at Any Zoom Level
  • Intelligent Video System (IVS) with Smart Track
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Panoramic Camera
Image SensorEight (8) 1/1.8-in. 2 MP CMOS Sensors
Effective Pixels8192(H) x 1800(V)
Scanning SystemProgressive
Electronic Shutter SpeedAuto, Manual: 1/3 s to 1/100,000 s
Minimum IlluminationColor: 0.01 lux at F2.0
Pan/Tilt Range

Pan: 0˚ to 360˚, endless

Tilt: -20˚ to 90˚

Auto flip: 180˚

Manual Speed ControlPan: 0.1° /s to 240° /s Tilt: 0.1° /s to 120° /s
Presets300
PTZ Mode5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed SetupHuman-oriented Focal Length and Speed Adaptation
Power-up ActionAuto restore to previous PTZ and lens status after power failure
Idle MotionActivate Preset, Scan, Tour, Pattern if there is no command in the specified period
ProtocolDH-SD, Pelco-P/D (Auto recognition)

Lens

Lens TypeFixed
Mount TypeM12
Focal Length5 mm
Maximum ApertureF2.0
Angle of ViewHorizontal: 360° Vertical: 84°
Close Focus Distance1.20 m (3.94 ft)

Video

CompressionSmart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG
Streaming CapabilityThree (3) Streams
Output Channels²

Two (2) Channels:

• One (1) Channel for Stitched Panoramic Video

• One (1) Channel for PTZ Video

Resolution
Panoramic Camera

8192 x 1800, 7680 x 1680, 5760 x 1264, 4800 x 3840,

4096 x 900, 3840 x 832, 3200 x 2560, 2560 x 560, 2048 x 452, 1600 x 1280

PTZ Camera

4 MP (2560 x 1440), 1080p (1920 x 1080),

1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240)

Frame Rate
Main StreamPanoramic Camera: 8192 x 1800 at 30 fps PTZ Camera: 4 MP at 30 fps
Sub Stream 1Panoramic Camera: 3840 x 832 at 30 fps PTZ Camera: D1 or CIF at 30 fps
Sub Stream 2

Panoramic Camera: 4800 x 3480 at 30 fps

PTZ Camera: 1080p, 1.3 MP, or 720p at 30 fps

Bit Rate ControlCBR, VBR
Bit RatePanoramic

H.265: 256 Kbps to 26216 Kbps

H.264: 512 Kbps to 42995 Kbps

PTZH.265: 110 Kbps to 9216 Kbps H.264: 184 Kbps to 15104 Kbps
Day/NightAuto (ICR), B/W, Color
BLC ModeBLC, HLC, WDR
Dynamic RangePanoramicTrue WDR (120 dB)
PTZDigital WDR
White BalancePanoramicAuto, Natural, Street Lamp, Outdoor, Manual, Regional
PTZAuto, Indoor, Outdoor, Manual, Sodium Lamp, Natural, Street Lamp
Gain ControlAuto, Manual, Aperture Priority, Gain Priority, Shutter Priority
Noise Reduction3D DNR
Motion DetectionOff, On
Region of InterestOff, On (4 Zones)
DefogSupport, PTZ camera only
Digital Zoom16x, PTZ camera only
Privacy MaskingPanoramicOff, On (4 Areas, Rectangle)
PTZOff, On (8 Areas, Rectangle)
