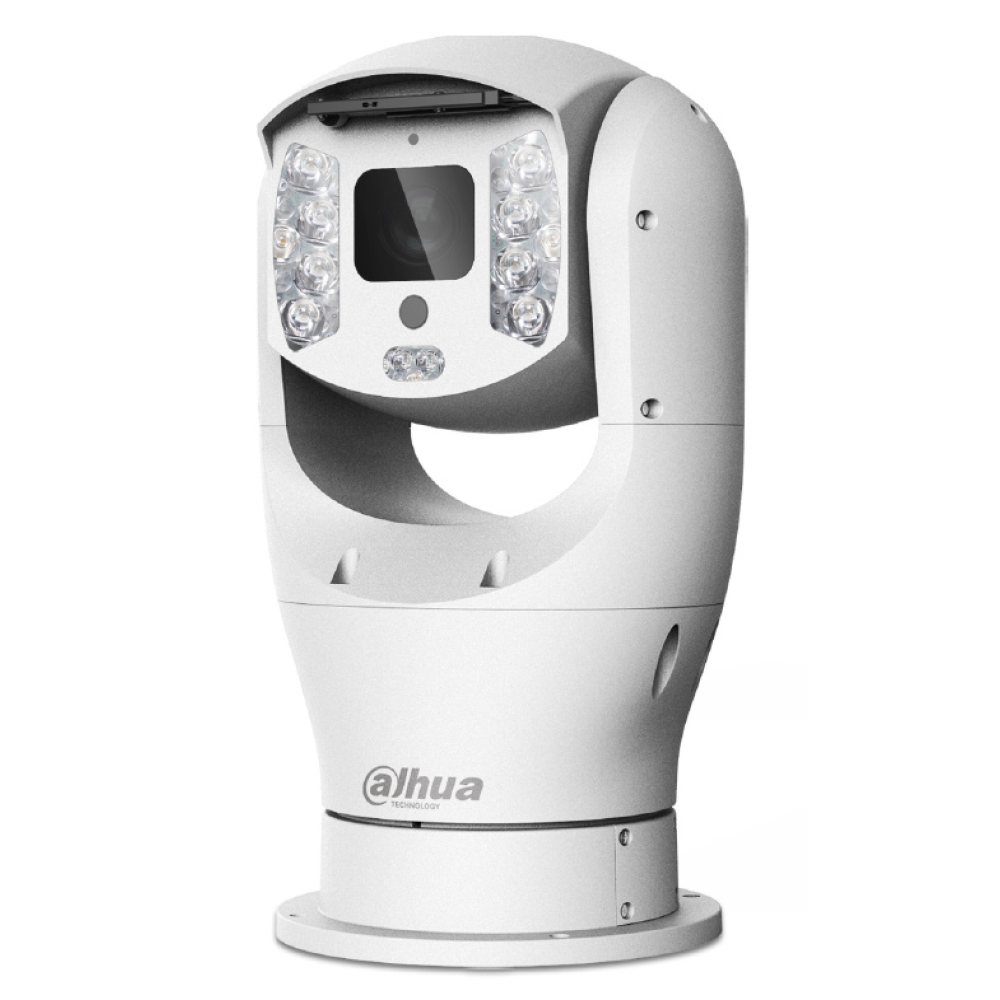

The Dahua 2 MP Network Positioning System offers high-resolution video and accurate pan/tilt/zoom positioning for long-range video surveillance. The camera is certified to IP68 and to NEMA 4X offering protection in the harshest environments, ideal for use in coastal and marine applications, chemical plants, and other caustic environments. The camera features Smart H.265+ video compression, reducing bandwidth and storage requirements without sacrificing video quality. For challenging low-light applications, Dahua’s Starlight Ultra-low Light Technology offers best-in-class light sensitivity, capturing details in low-light environments. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.
Features:
- 1/2.8-in. 2 MP STARVIS™ CMOS Sensor
- Powerful 40x Optical Zoom
- Starlight Technology for Ultra-low Light Sensitivity
- Predictive Focus Algorithm
- Triple-stream Encoding
- Smart H.265+ and H.264 Dual Codecs
- 1080p at 60 fps Maximum Resolution
- Ultra-wide Dynamic Range (140 dB)
- Intelligent Video System (IVS) with Auto-tracking
- ArcticPro Series Camera – Operational down to –50° C (–58° F)
- IP68 Ingress Protection
- NEMA 4X Certification
- Designed for Extreme Temperature Environments
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Camera
| Image Sensor | 1/2.8-in. STARVIS™ CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| Scanning System | Progressive |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.2 0 lux at F1.2 (IR on) |
| S/N Ratio | More than 55 dB |
| IR Distance | Up to 300.0 m (984.25 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | Eight (8) |
Lens
| Focal Length | 4.5 mm to 180 mm |
| Max. Aperture | F1.2 to F3.5 |
| Angle of View | Horizontal: 67.5° to 1.7° |
| Optical Zoom | 40x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm (3.94 in. x 39.37 in.) |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless Tilt: 0° to 360° endless Effective Tilt Angle: –55° to 223° Auto Flip: 180° |
| Manual Control Speed | Pan: 0.1° to 120° /s; Tilt: 0.1° to 60° /s |
| Preset Speed | Pan: 120° /s; Tilt: 60° /s |
| Presets | 300 |
| PTZ Mode | 5 Patterns, 8 Tours, Auto Pan, Auto Scan |
| Speed Setup | Proportional Pan/Tilt Speed to Zoom Ratio |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset, Scan, Tour, Pattern if there is no command in the specified period |
| Protocol | DH-SD, Pelco-P/D (Auto recognition) |
Video
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Streaming Capability | Three (3) Streams |
| Resolution | 1080p (1920 x 1080), 1.3 MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), CIF (352 x 240) |
| Frame Rate | Main Stream: 1080p, 1.3 MP, or 720p at 60 fps |
| Sub Stream 1: D1 or CIF at 30 fps | |
| Sub Stream 2: 1080p, 1.3 MP, or 720p at 30 fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.265/H.264: 256 K to 8192 Kbps |
| Day/Night | Auto (ICR), Color, B/W |
| Backlight Compensation | BLC, HLC, Ultra WDR (140 dB) |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control | Auto, Manual |
| Noise Reduction | Ultra DNR (2D/3D) |
| Advanced Features | Motion Detection, Region of Interest, Electronic Image Stabilization (EIS), Defog, Smart Wiper |
| Digital Zoom | 16x |
| Flip | 180° |
| Privacy Masking | Up to 24 areas |
Network
| Ethernet | RJ-45 (100 Base-TX/1000 Base-T) |
| Protocol | IIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Maximum User Access | 20 Users |
| Edge Storage | Network Attached Storage (NAS), Local PC for Instant Recording, Micro SD Card Slot, maximum 128 GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | SmartPSS, DSS |
| Mobile Operating System | IOS, Android |
