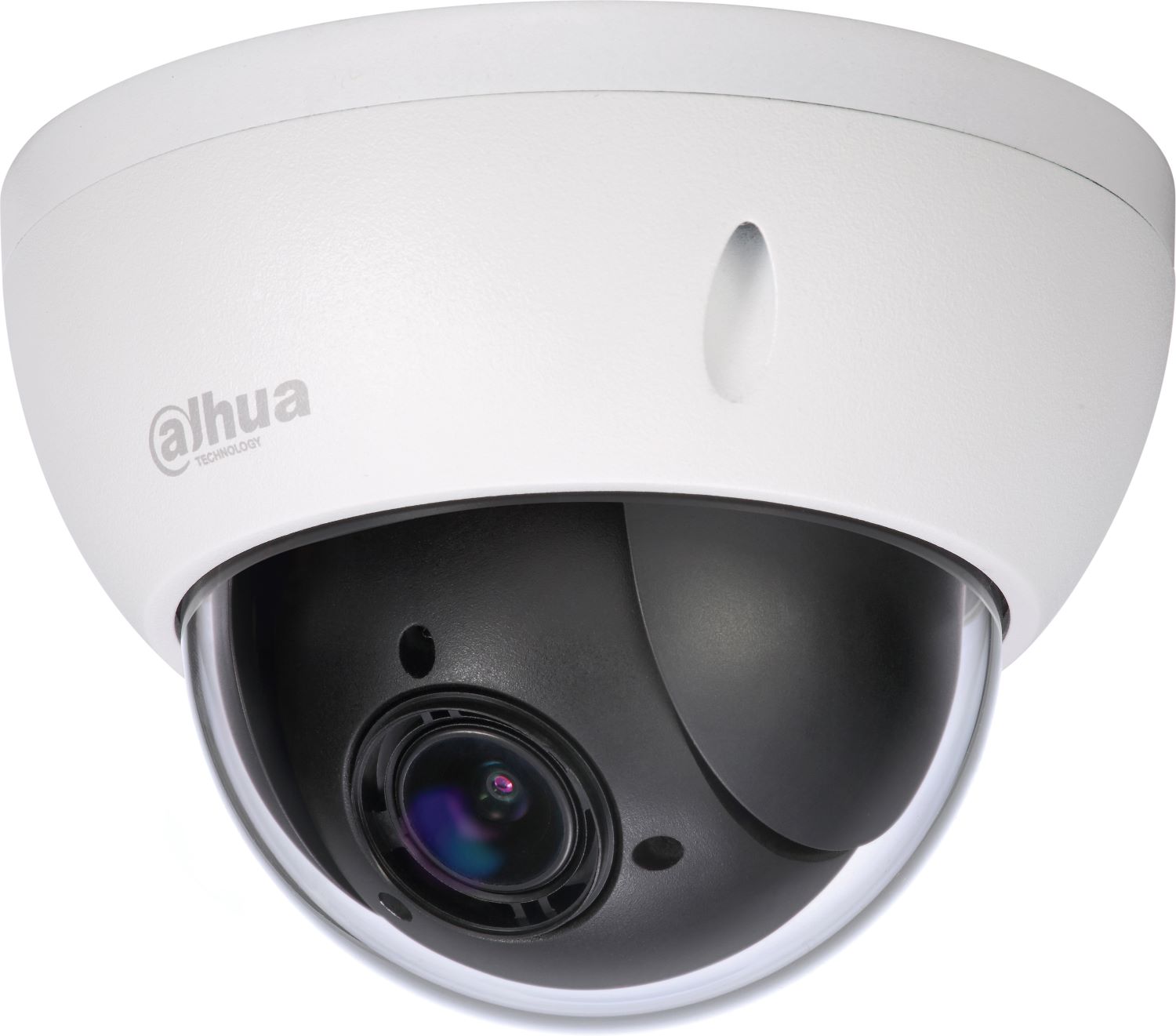

The 2MP high-resolution Pan/Tilt/Zoom camera, with a 4x optical zoom lens, uses a high performance sensor to provide clear images with abundant detail and exceptional color rendition. The camera features a HD/SD dual-output and a multi-language On-screen Display.
Features:
- 1.27-in. 2 MP CMOS Sensor
- 1080p at 30 fps and 720p at 60 fps Maximum Resolution
- Powerful 4x Optical Zoom
- True WDR (120 dB)
- HD and SD Switchable
- IP66 Ingress Protection and IK10 Vandal Resistant
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Technical Specification
|
Image Sensor |
1/2.7" CMOS |
|
Effective Pixels |
1920 (H) x 1080 (V), 2 MP |
|
Scanning System |
Progressive |
|
Electronic Shutter Speed |
1/1 ~ 1/30,000s |
|
Minimum IlluminationMiim Illumination |
Color: 0.05Lux@F1.6; B/W: 0.005Lux@F1.6; |
|
S/N Ratio |
More than 55dB |
Lens
|
Focal Length |
2.7mm~11mm (4x Optical zoom) |
|
Max Aperture |
F1.6 |
|
Angle of View |
H: 112.5°～30° |
|
Focus Control |
Auto / Manual |
|
Close Focus Distance |
100mm~ 1000mm |
Video
|
Resolution |
30fps@1080p, 30/60fps@720p |
|
Video Output DH-PFB303W Wall mount |
1-channel BNC HDCVI high definition video output/ CVBS standard definition video output |
|
Day/Night |
Auto (ICR) / Color / B/W |
|
BLC Mode |
BLC / HLC / True WDR (120 dB) |
|
White Balance |
Auto, ATW, Indoor, Outdoor, Manual |
|
Gain Control |
Auto / Manual |
|
Noise Reduction |
Ultra DNR (2D/3D) |
|
Digital Zoom |
16x |
|
Flip |
180° |
Certifications
|
Certifications |
CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Interface
|
Audio Interface |
N/A |
|
RS485 |
1 |
|
Alarm |
N/A |
Electrical
|
Power Supply |
DC12V, 1.5A |
|
Power Consumption |
18 W |
Environmental
|
Operating Conditions |
-30°C ~ +60°C (-22°F ~ +140°F) Less than 90% RH |
|
Storage Condition |
-30°C ~ +60°C (-22°F ~ +140°F) Less than 90% RH |
|
Ingress Protection & Vandal Resistance |
IP66, IK10 |
Construction
|
Casing |
Metal |
|
Dimensions |
Φ122mm x 89mm (Φ4.80" x 3.50") |
|
Net Weight |
0.60 kg (1.32 lbs) |
|
Gross Weight |
0.65 kg (1.43 lbs) |
