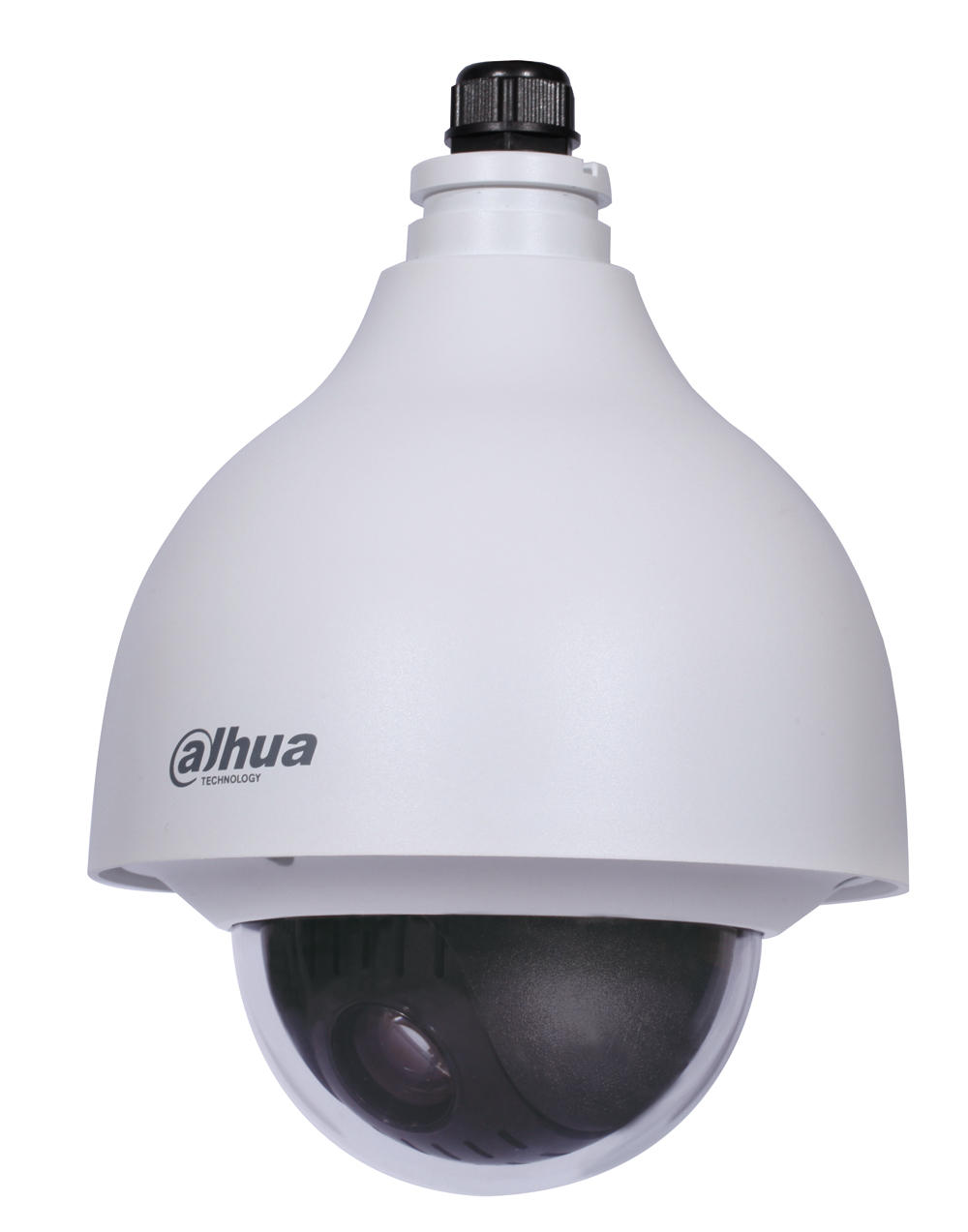

The 2MP PTZ camera features a 1/2.7-in. CMOS imager with a 12x optical zoom lens for capturing short-distance video surveillance.
The PTZ camera is equipped with True WDR for applications with direct sunlight or glare and a true day/night IR cut filter for clear images in varying lighting conditions.
For a more efficient surveillance system, the camera featuresconboard analytics (IVS) so that violations to user-set rules can be quickly identified.
Features:
- 1/2.7-in, 2 MP CMOS Senser
- Maximum Resolution of 720p at 60 fps and 1080p at 30 fps
- Triple Stream Encoding
- Powerful 12x Optical Zoom
- True Wide Dynamic Range
- Intelligent Video System
- Alarm Interface
- ArcticPro Series Camera – Operational down to –40° C (–40° F)
- IP66 Ingress Protection and IK10 Vandal Resistance
- PoE+ Support
Camera
| Image Sensor | 1/2.7 in. CMOS |
| Effective Pixels | 1920(H) x 1080(V), 2 MP |
| RAM/ROM | 256 MB / 128 MB |
| Scanning System | Progressive |
| Minimum Illumination | Color: 0.05 Lux at F1.6; B/W: 0.005 Lux at F1.6 |
| S/N Ratio | More than 55 dB |
Lens
| Focal Length | 5.1 mm to 61.2 mm |
| Max. Aperture | F1.6 to F3.0 |
| Angle of View | H: 59.3° to 5.2° |
| Optical Zoom | 12x |
| Focus Control | Auto, Manual |
| Close Focus Distance | 100 mm to 1000 mm |
Video
| Compression | Smart H.264+, H.264, MJPEG | |
| Streaming Capability | 3 Streams | |
| Resolution | 1080p (1920 × 1080), 720p (1280 × 720), D1 (704 × 480), CIF (352 × 240) | |
| Frame Rate | Main Stream: 1080p, D1 at 30 fps, 720p at 60 fps | |
| Sub Stream 1:D1/CIF at 30 fps | ||
| Sub Stream 2: 720p/D1/CIF at 30 fps | ||
| Bit Rate Control | CBR, VBR | |
| Bit Rate | Smart H.264+, H.264: 448 K to 8192 Kbps, MJPEG: 5120 K to 10240 Kbps | |
| Day, Night | Auto(ICR), Color, B/W | |
| Backlight Compensation | BLC, HLC, WDR(120dB) | |
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | |
| Gain Control | Auto, Manual | |
| Noise Reduction | Ultra DNR (2D, 3D) | |
| Motion Detection | Support | |
| Region of Interest | Support | |
| Defog | Support | |
| Digital Zoom | 16x | |
| Flip | 180° | |
| Privacy Masking | Up to 24 areas |
PTZ
| Pan/Tilt Range | Pan: 0° to 360° endless; Tilt: -2° to 90°, auto flip 180° |
| Manual Control Speed | Pan: 0.1° to 300°/s; Tilt: 0.1° to 120°/s |
| Preset Speed | Pan: 300°/s; Tilt: 200°/s |
| Presets | 300 |
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan |
| Speed Setup | Human-oriented focal Length, speed adaptation |
| Power up Action | Auto restore to previous PTZ and lens status after power failure |
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Protocol | DH-SD |
Network
| Ethernet | RJ-45 (10, 100Base-T) |
| Protocol | IPv4, IPv6, HTTP, HTTPS, SSL, TCP, IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast, Multicast |
| Max. User Access | 20 users |
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, 128GB |
| Web Viewer | IE10, Google, Firefox, Safari |
| Management Software | Smart PSS, DSS |
| Smart Phone | iPhone, iPad, Android, Windows Phone |
