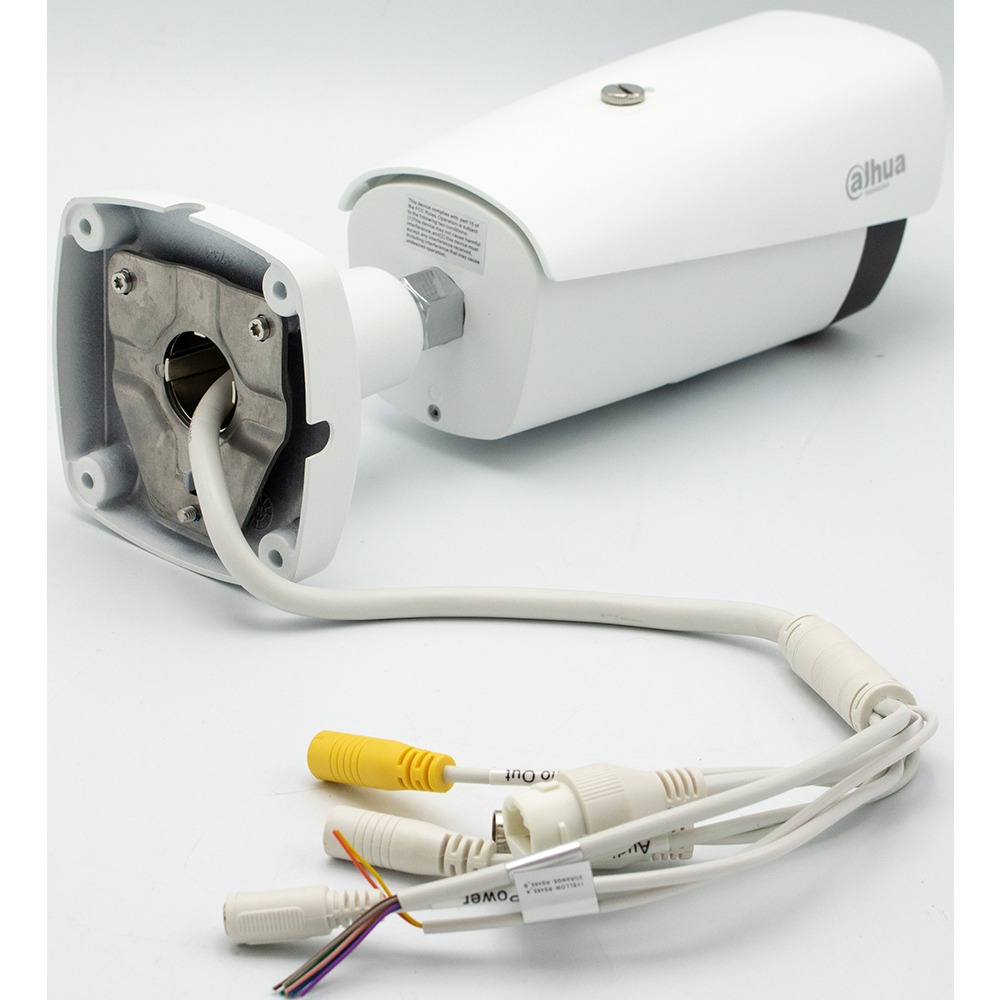

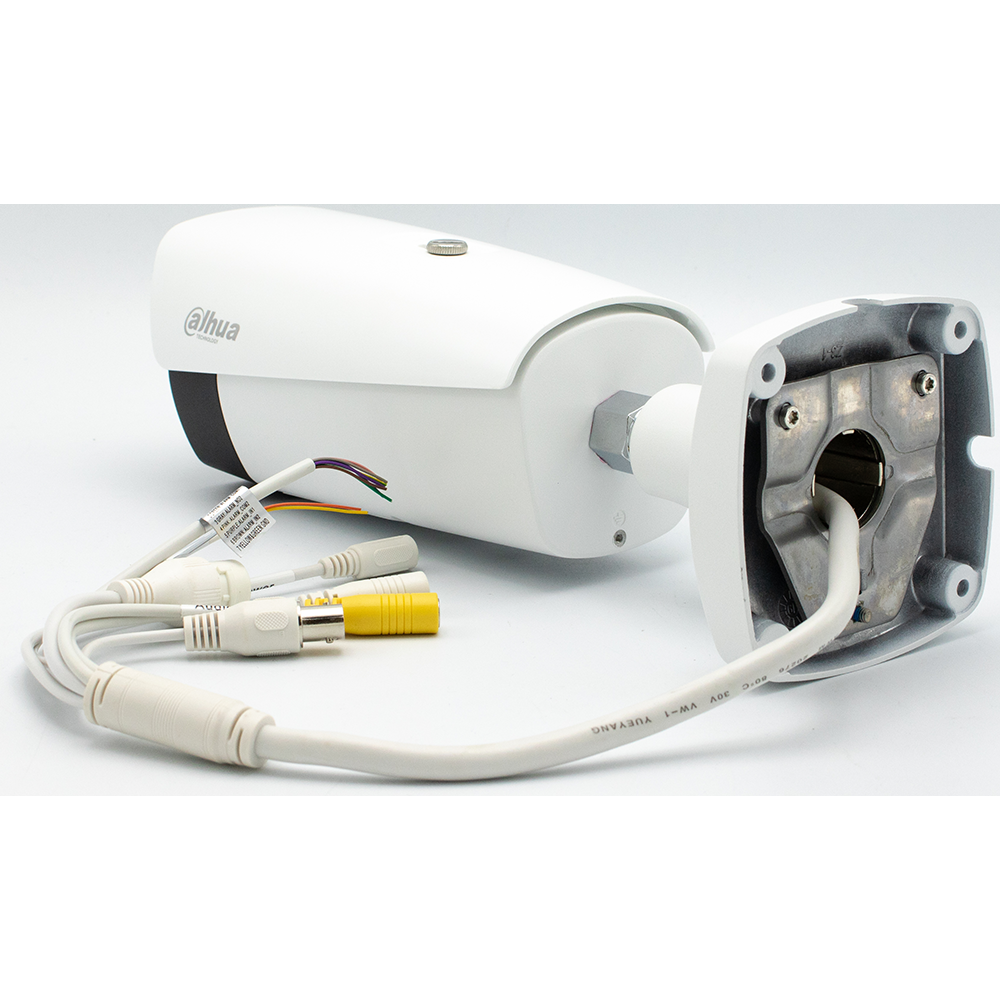

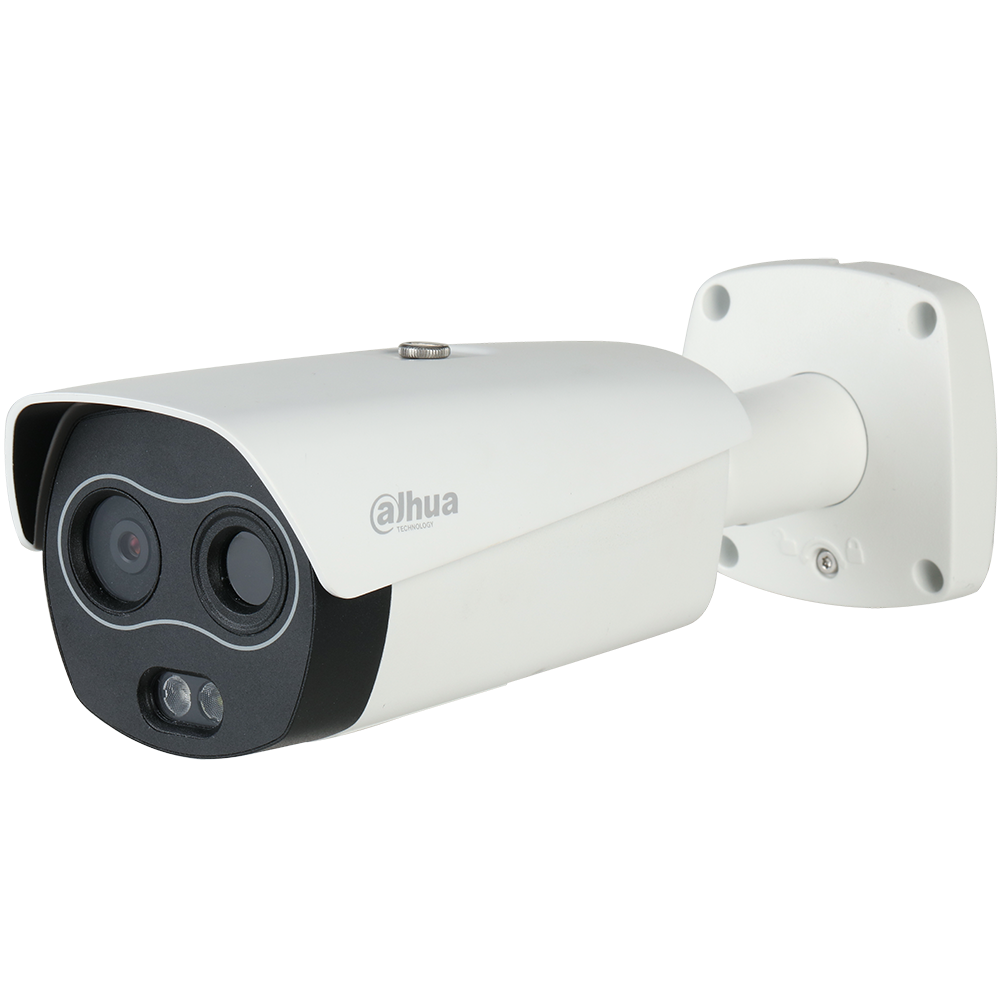

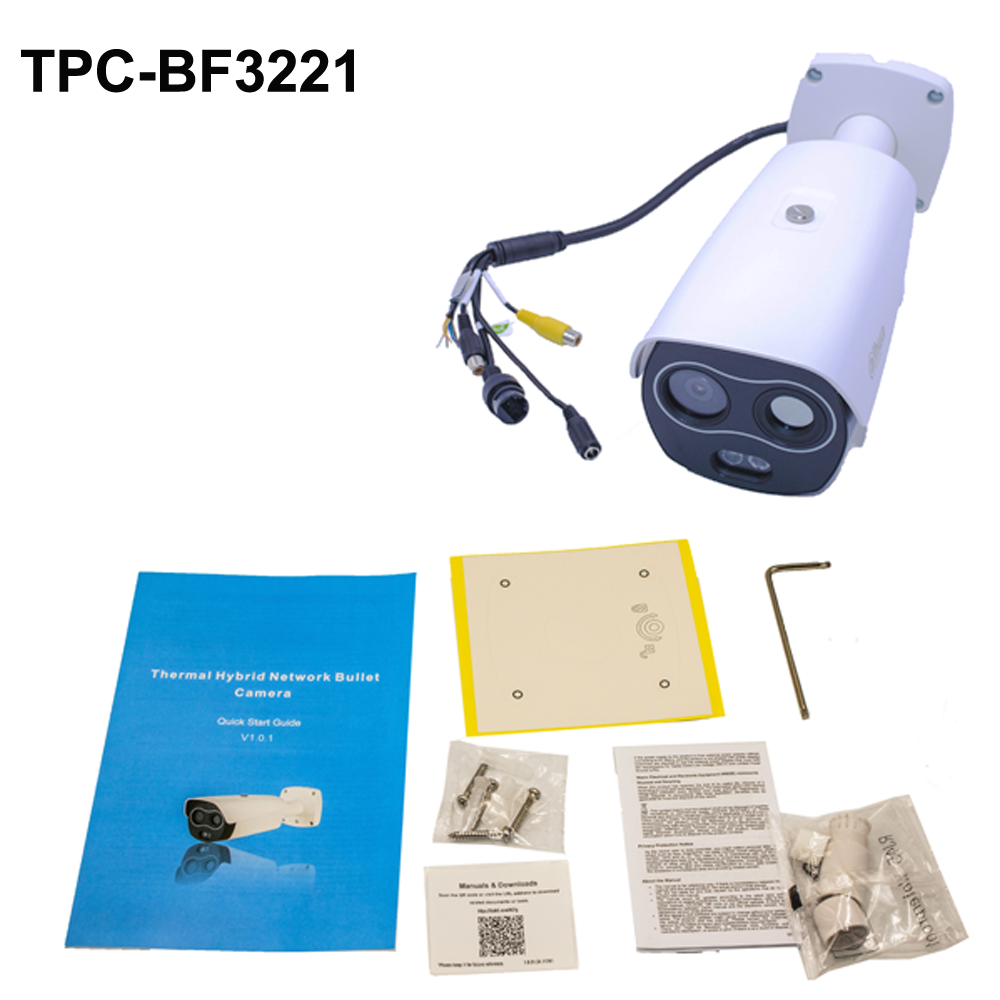

Dahua - DH-TPC-BF3221-T - 256 x 192 Hybrid Thermal ePoE Network Bullet Camera
Part number:
DH-TPC-BF3221-T
Price:
The Hybrid Thermal Network camera combines an uncooled VOx 256 x 192 thermal sensor with a 2 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an athermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog, and snow. The visible sensor with an IR illuminator delivers superior video in any lighting condition.
Thermal Camera
- 256 x 192 VOx Uncooled Thermal Sensor Technology
- Athermalized Lens, Focus-free
- 7 mm Fixed Thermal Lens
- ≤ 50 mK Thermal Sensitivity
Visible-light Camera
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 8 mm Fixed Lens
- Maximum IR Distance 35 m (114 ft)
System Features
- Active Alarm
- Supports ROI, Motion Detection, and Color Palettes
- Enhanced Power and Data Transmission Distances (ePoE)
- IP67 Ingress Protection
Thermal Camera
| Image Sensor | Uncooled VOx Microbolometer |
| Effective Pixels | 256 (H) x 192 (V) |
| Pixel Size | 12 µm |
| Thermal Sensitivity (NETD) | ≤ 50 mK at f/1.1 |
| Spectral Range | 8 µm to 14 µm |
| Image Setting | Brightness, Sharpness, ROI, AGC, FFC, 3D DNR |
| Color Palettes | 18, including: Whitehot, Blackhot, Icefire, Fusion, Rainbow, Globow, Ironbow1, and Sepia |
Thermal Lens
| Lens Type | Fixed |
| Focus Control | Athermalized, Focus-free |
| Focal Length | 7 mm |
| Field of View | Horizontal: 24° Vertical: 18° |
Visible-light Camera
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.005 lux at F1.9 B/W: 0.0005 lux at F1.9 0 lux with IR On |
| IR Distance | 35.0 m (114.83 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
Visible-light Lens
| Focal Length | 8 mm |
| Maximum Aperture | F1.9 |
| Angle of View | Horizontal: 40° Vertical: 22° |
Video
| Compression | H.265, H.264, MJPEG | |
| Frame Rate | Main Stream | |
| Thermal | 1280 x 1024, 1024 x 768, 640 x 480, 256 x 192 at 30 fps, 1280 x 960 (default) | |
| Visible | 1920 x 1080, 1280 x 720, 704 x 480 at 30 fps | |
| Sub Stream | ||
| Thermal | 640 x 480, 256 x 192 at 30 fps | |
| Visible | 704 x 480, 352 x 240 at 30 fps | |
| Bit Rate Control | CBR, VBR | |
| Bit Rate | H.264: 640 Kbps to 8192 Kbps | |
| Day/Night | Auto (ICR), Color, B/W | |
| BLC Mode | BLC, HLC, WDR | |
| White Balance | Auto, Manual | |
| Motion Detection | Off, On (4 zones, Rectangle) | |
| Region of Interest | Off, On (4 zones) | |
| Defog | On, Off | |
| Flip | 180° | |
| Mirror | Off, On | |
| Privacy Masking | Off, On (4 areas, Rectangle) |
Network
| Ethernet | RJ-45 (10/100 Base-T) |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF |
| Interoperability | ONVIF Profile S & G, API |
| Streaming Method | Unicast, Multicast |

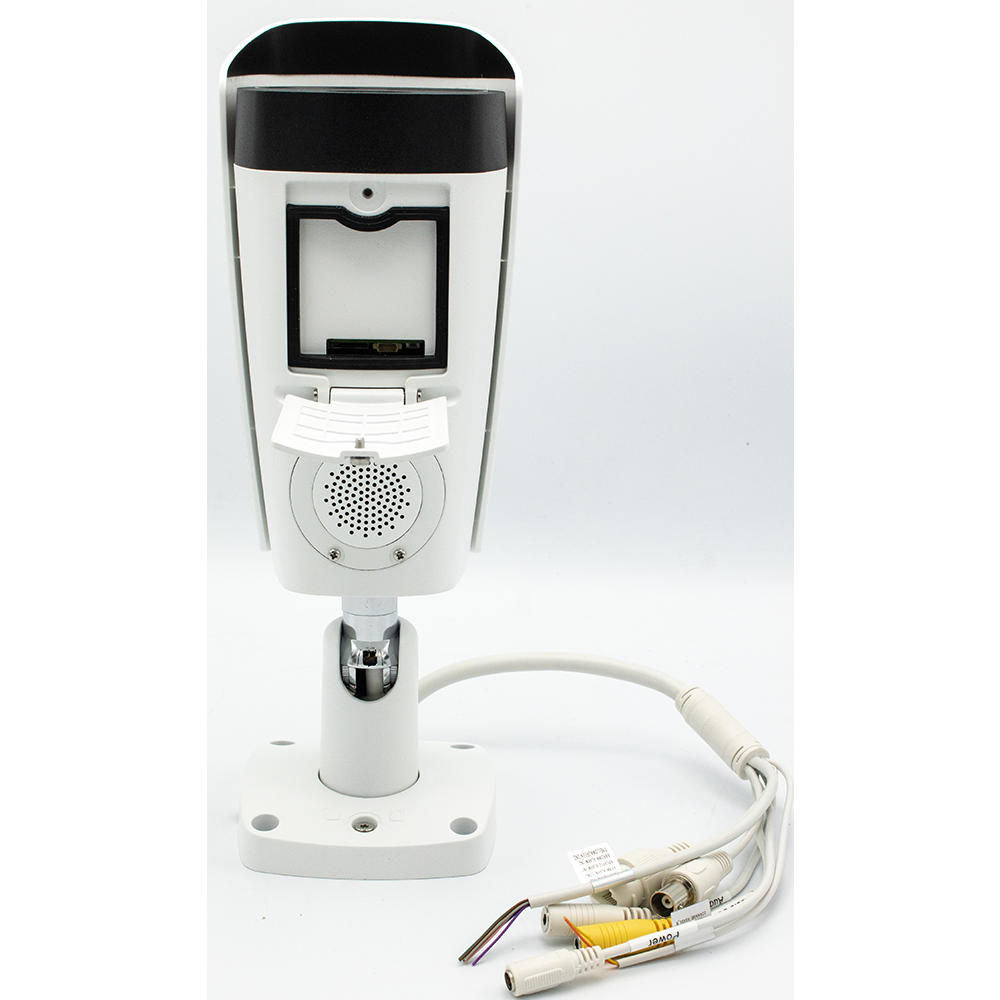

| Edge Storage | MicroSD Card slot (up to 256 GB) |
| Maximum User Access | 20 Users |
| User Management | Supports 20 users atone time and users are classified as one of tow groups: administrator or user |
| Security | Authorized username and password; attached MAC address; encrypted HTTPS; IEEE 802.1x; controlled network access |
| Web Viewer | IE 8 or later, Explorer with IE Core Google: 42 and the earlier Firefox: 42 and the earlier Safari: 10 and the earlier |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
File
Quick_Guide
1.3mb
