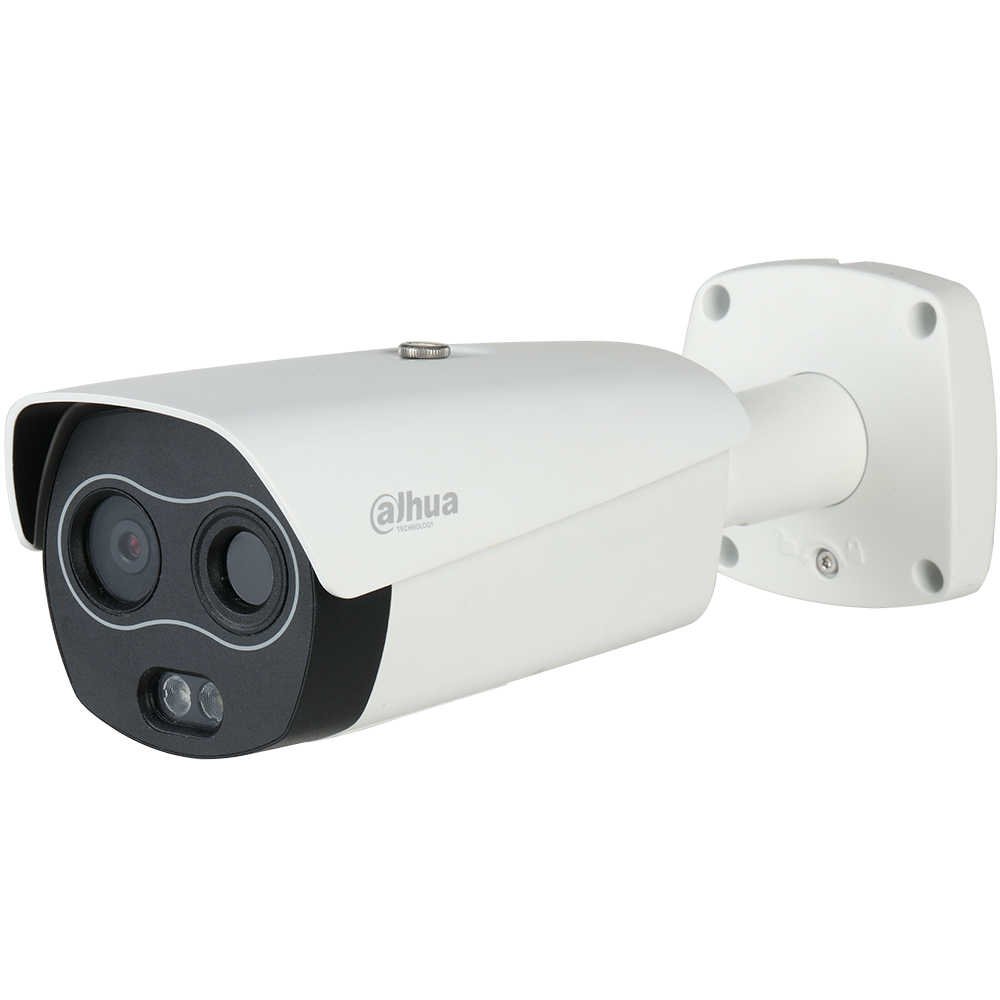

The Hybrid Thermal Network camera combines an uncooled VOx 300 x 400 thermal sensor with a 2 MP visible-light sensor for cost-effective, long-range surveillance in a rugged all-in-one package. The thermal imager coupled with an athermalized, focus-free lens produces crisp images in total darkness and sees through rain, fog, and snow. The visible sensor with an IR illuminator delivers superior video in any lighting condition.
Features:
Thermal Camera
- 400 x 300 VOx Uncooled Thermal Sensor Technology
- Athermalized Lens, Focus-free
- 13 mm Fixed Thermal Lens
- ≤ 40 mK Thermal Sensitivity
Visible-light Camera
- 1/2.8-in. 2 MP Progressive-scan CMOS Sensor
- 8 mm Fixed Lens
- Maximum IR Distance 35 m (114 ft)
System Features
- Active Alarm
- Supports ROI, Motion Detection, and Color Palettes
- Enhanced Power and Data Transmission Distances (ePoE)
- IP67 Ingress Protection
Thermal Camera
| Image Sensor | Uncooled VOx Focal Plane Detector |
| Effective Pixels | 300 (H) x 400 (V) |
| Pixel Size | 17 µm |
| Thermal Sensitivity (NETD) | ≤40 mK |
| Spectral Range | 8 µm to 14 µm |
| Image Settings | Electronic Thermal Image Stabilization Digital Detail Enhancement |
| Color Palettes | 18, including: Whitehot, Blackhot, Icefire, Fusion, Rainbow, Globow, Ironbow1, and Sepia |
Thermal Lens
| Lens Type | Fixed-focal |
| Focus Control | Athermalized, Focus-free |
| Aperture | F1.0 |
| Focal Length | 13 mm |
| Angle of View | Horizontal: 30.0° Vertical: 22.60° |
Visible-light Camera
| Image Sensor | 1/2.8-in. CMOS |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Electronic Shutter Speed | 1/1 s to 1/30,000 s |
| Minimum Illumination | Color: 0.002 lux at F1.9 B/W: 0.0002 lux at F1.9 0 lux with IR On |
| IR Distance | 35.0 m (114.83 ft) |
| IR On/Off Control | Auto, Manual |
| IR LEDs | One (1) |
