Image Sensor

Uncooled VOx Focal Plane Detector

Effective Pixels

640 (H) x 512 (V)

Pixel Size

17 µm

Thermal Sensitivity (NETD)

< 40 mK

Spectral Range

8 µm to 14 µm

Image Setting

Brightness, Sharpness, ROI, AGC, FFC, 3D DNR

Color Palettes

18, including:

Whitehot, Blackhot, Icefire, Fusion, Rainbow,

Globow, Ironbow1, and Sepia

Thermal Lens

Lens Type

Fixed

Focus Control

Athermalized, Focus-free

Focal Length

7.5 mm

13 mm

25 mm

Angle of View

H: 91.2°

H: 48.9°

H: 24.6°

V: 70.3°

V: 38.8°

V: 19.8°

Detection

221 m

382 m

735 m

(725 ft)

(1253 ft)

(2411 ft)

Effective Distance,

Recognition

57 m

98 m

189 m

human

(187 ft)

(322 ft)

(620 ft)

(1.80 m x 0.50 m)¹

28 m

49 m

95 m

Identification

(92 ft)

(161 ft)

(312 ft)

Detection

558 m

1020 m

1961 m

(1608 ft)

(3346 ft)

(6434 ft)

Effective Distance,

Recognition

147 m

255 m

490 m

vehicle

(482 ft)

(837 ft)

(1608 ft)

(4.0 m x 1.40 m)¹

74 m

127 m

245 m

Identification

(243 ft)

(417 ft)

(804 ft)

Temperature Measurement

Range

Low

–20° C to 150° C (–4° F to 302° F)

High

0° C to 550° C (32° F to 1022° F)

Accuracy

±2.0° C (±3.6° F),

when operating temperature is between

–20° C to 60° C (–4° F to 140° F)

Mode

Spot, Line, Area

Supports 12 Rules Simultaneously:

Rule

• Spot: 12

• Line: 12

• Area: 12

7.5 mm

13 mm

25 mm

Temperature Measurement Distance

Target Size: 0.1 m x 0.1 m,

4.10 m

7.60 m

14.70 m

Recommended Distance

(13.45 ft)

(24.93 ft)

(46.26 ft)

Target Size: 0.3 m x 0.3 m,

12.40

22.90 m

44.10 m

Maximum Distance

(40.68 ft)

(75.13 ft)

(144.69 ft)

Rapid Temperature Rise Detection Distance

Target Size: 0.2 m x 0.2 m,

22.0 m

39.0 m

75.0 m

Recommended Distance

(72.18 ft)

(127.95 ft)

(246.06 ft)

Target Size: 0.2 m x 0.2 m,

46.40 m

80.50 m

154.80 m

Maximum Distance

(152.23 ft)

(264.10 ft)

(507.87 ft)

Target Size: 2.0 m x 2.0 m,

220.0 m

390.0 m

750.0 m

Recommended Distance

(721.78 ft)

(1279.53 ft)

(2460.63 ft)

Target Size: 2.0 m x 2.0 m,

464.0 m

805.0 m

1548.0 m

Maximum Distance

(1522.31 ft)

(2641.08 ft)

(5078.74 ft)

Compression

H.265, H.264, H.264H, H.264B, MJPEG

Main Stream

1280 x 1024, 720p, or 640 x 512 at 30 fps

Frame Rate

Sub Stream

640 x 512, 640 x 480, or 400 x 300 at 30 fps

Bit Rate Control

CBR/VBR

Bit Rate

H.264: 640 Kbps to 8192 Kbps

Noise Reduction

2D, 3D

Gain Control

Auto, Manual

Advanced Features

Electronic Thermal Image Stabilization,

Digital Detail Enhancement

Motion Detection

Off, On (4 zones, Rectangle)

Region of Interest

Off, On (4 zones)

Digital Zoom

4x

Flip

90°, 180°, 270°

Mirror

Off, On

Privacy Masking

Off, On (4 areas, Rectangle)

Audio

Compression

G.711a, G.711Mu, AAC, PCM

Network

Ethernet

RJ-45 (10/100 Base-T)

Protocol

HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP;

DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS;

UPnP; NTP

Interoperability

ONVIF, CGI, Dahua SDK

Streaming Method

Unicast/Multicast

Maximum User Access

20 Users (64 Mbps)

Edge Storage

FTP

Micro SD Card Slot, maximum 128 GB

Web Browser

IE 8 or later

Management Software

DSS

Mobile Operating System

Android, IOS

Safety

UL 60950-1

CAN/CSA C22.2 No. 60950-1-07

EN 60950:2000

Electromagnetic Compatibility

47 CFR FCC Part 15 Subpart B

ANSI C63.4 - 2009

(EMC)

Canada ICES-003 Issue 5

CISPR Pub. 22

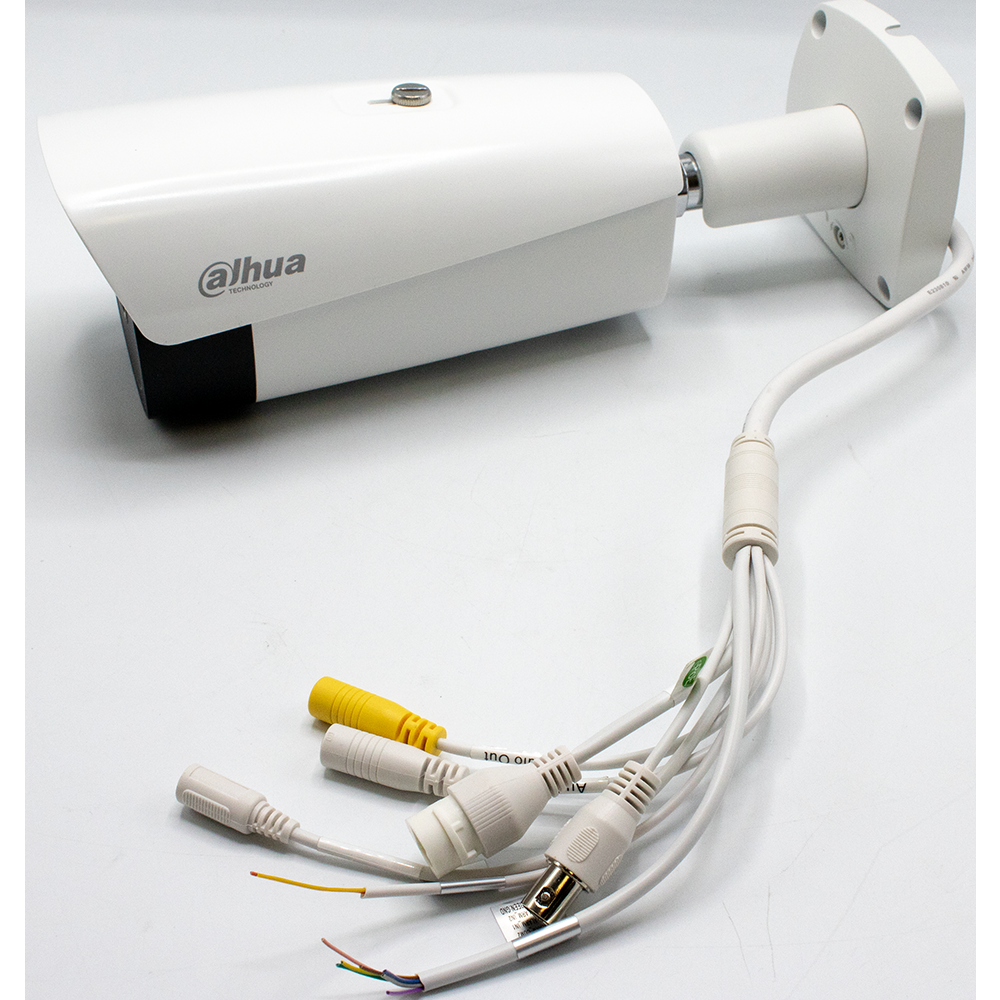

Video

One (1) Port BNC (CVBS) use for camera installation

Audio

Input: One (1) Channel, 3.5 mm Jack

Output: One (1) Channel, 3.5 mm Jack

RS485

One (1) Port

Alarm

Input: Two (2) Channels

Output: Two (2) Channel

Electrical

Power Supply

12 VDC ±20%, 1.2 A; or PoE (IEEE 802.3af), ePoE

Power Consumption

Basic: 5.0 W

Maximum 13 W

Environmental

Operating Condition

–40° C to +70° C (–40° F to +158° F)

Less than 95% RH

Storage Conditions

–50° C to +80° C (–58° F to +176° F)

Ingress Protection

IP67

Surge Protection

Surge: 6 KV

Electrostatic, contact: 8 KV

Electrostatic, air: 15 KV

Construction

Casing

Metal

Camera

291.0 mm x 103.80 mm x 97.20 mm

(11.46 in. x 4.09 in. x 3.83 in.)

Dimensions

365.0 mm x 175.0 mm x 176.0 mm

Packaging

(14.37 in. x 6.89 in. x 6.93 in.)

Net Weight

1.40 kg (3.09 lb)

Gross Weight

1.90 kg (4.19 lb)

• Tampering with the camera.

Standard Features

• Camera loses or changes focus drastically.

• Error writing to an onboard Micro SD card.

• Error sending or receiving data over the network.

• Unauthorized access to the camera.

Premium Features

Tripwire

A target crosses a user-defined line.

Intrusion

A target enters or exits a defined perimeter.

Advanced Features

Rapid Temperature Rise

Detects a rapid rise in temperature over a short time and

Detection

issues an alarm for a potential fire.

Cold/Hot Spot Trace

Indicates the coldest and the hottest spot of the scene.

Human/Vehicle

Detects human or vehicle violations using Tripwire or

Classification

Intrusion detection methods.
