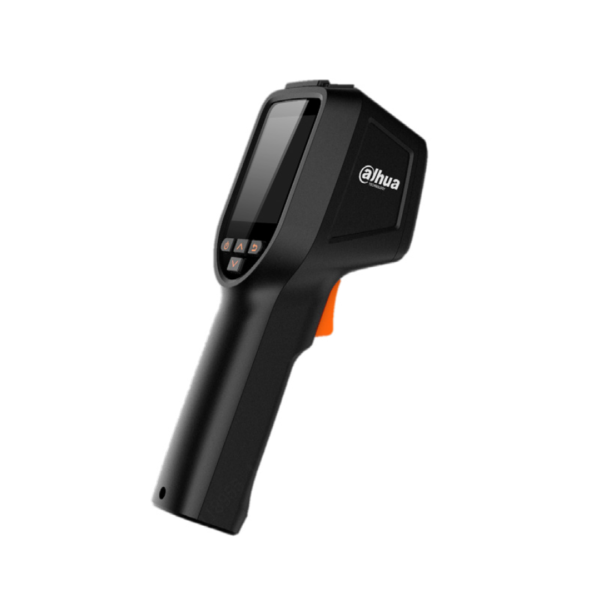

DH-TPC-HT2201 - EOL
This product has been discontinued.
Part number:
DH-TPC-HT2201
Price:
Dahua thermal cameras characterized by non-contact, multi-objective, rapid, and no risk to temperature testers, etc. It can be conveniently deployed in public places with dense personnel, and can be used for efficient and safe preliminary screening of temperature anomalies.
Features:
- 256 x 192 Uncooled VOx Thermal Sensor Technology
- 3.5 mm Fixed Athermalized Lens, Focus-free
- ±0.5° C (±0.9° F) Temperature Accuracy
- ≤ 50 mK Thermal Sensitivity
- Contactless Temperature Measurement
- Connect Handheld Device to a Computer and Monitor via USB
- Rechargeable Lithium-Ion Battery
- Requires 15 to 20 Minutes to Warm-up
- IP54 Ingress Protection
Thermal
| Detector Type | Uncooled VOx |
| Effective Pixels | 256 × 192 |
| Pixel Pitch | 12 μm |
| Spectral Range | 8 μm–14 μm |
| Thermal Sensitivity (NETD) | ≤50 mK@f/1.0 |
| Focal Length | 3.5 mm |
| Field of View | 37.8° × 50.6° |
| Focus Mode | Athermalized |
| Aperture | F1.0 |
| Color Palettes | 4(Whitehot/Blackhot/Rainbow//Ironbow) |
Image Display

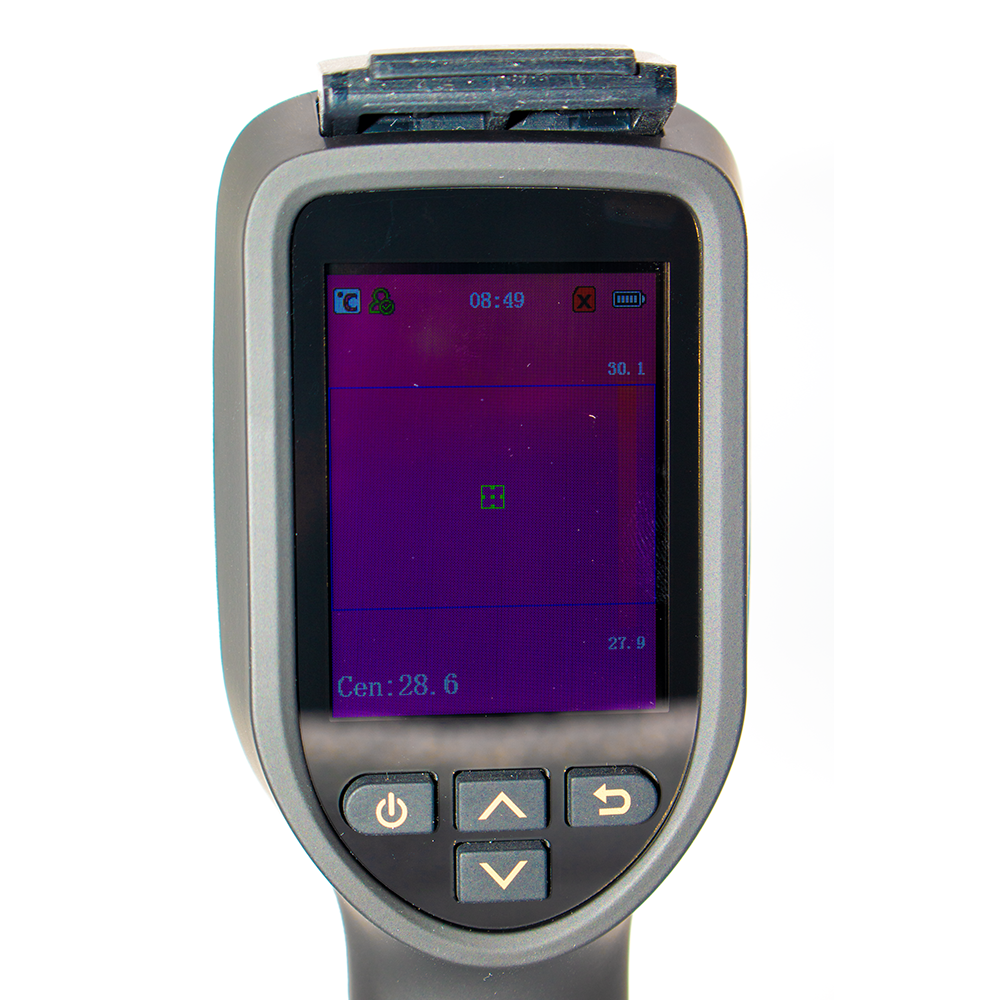

| Display | 2.4' LCD |
| Resolution | 320 × 240 |
Temperature Measurement
| Temperature Measurement Range | 30°C ~ 45°C (95°F-113°F) |
| Temperature Accuracy | ±0.5°C (Operating Temperature 15°C ~35°C ) |
| Temperature Mode | Center/Max. Temperature |
| Temperature Measuring Distance | Min.0.5m |
Name
Description
Size
Downloads
File
Data Sheet
0.3mb
File
Quick Start Guide
0.8mb
File
Flyer
1.2mb

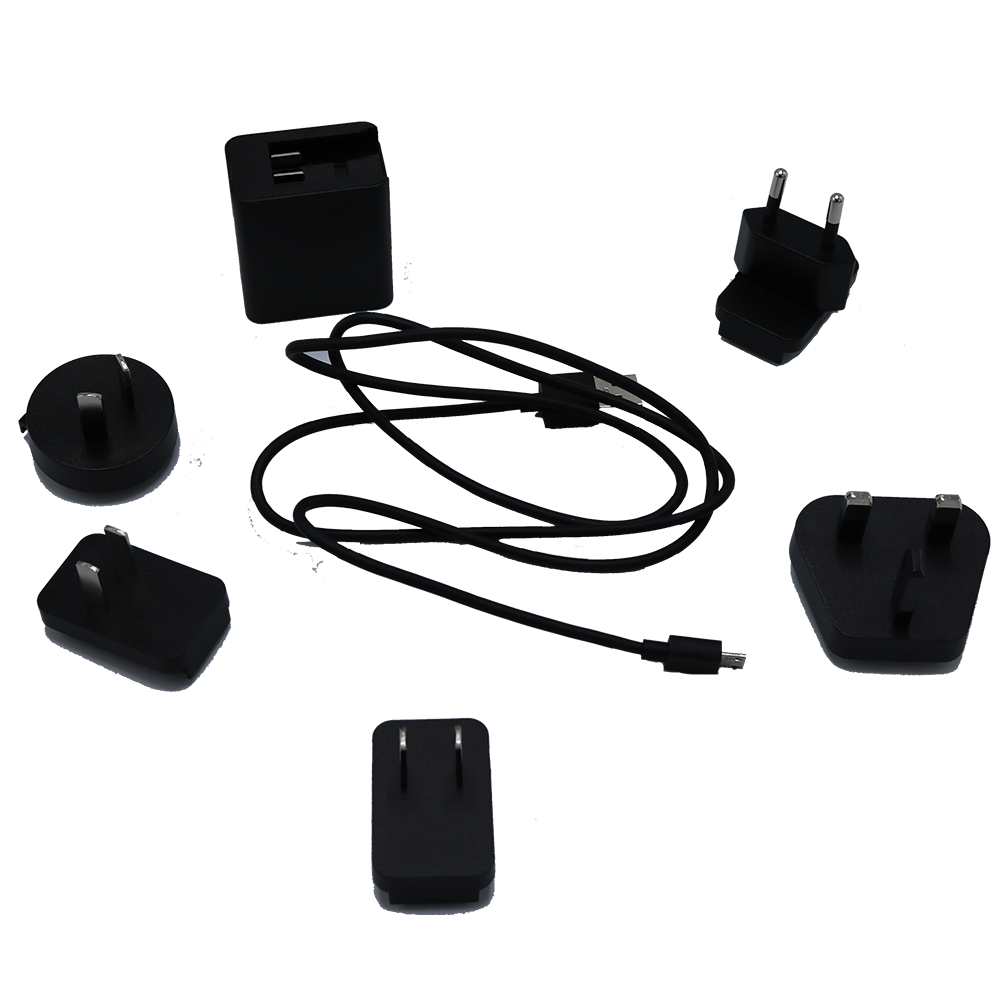

accessories
