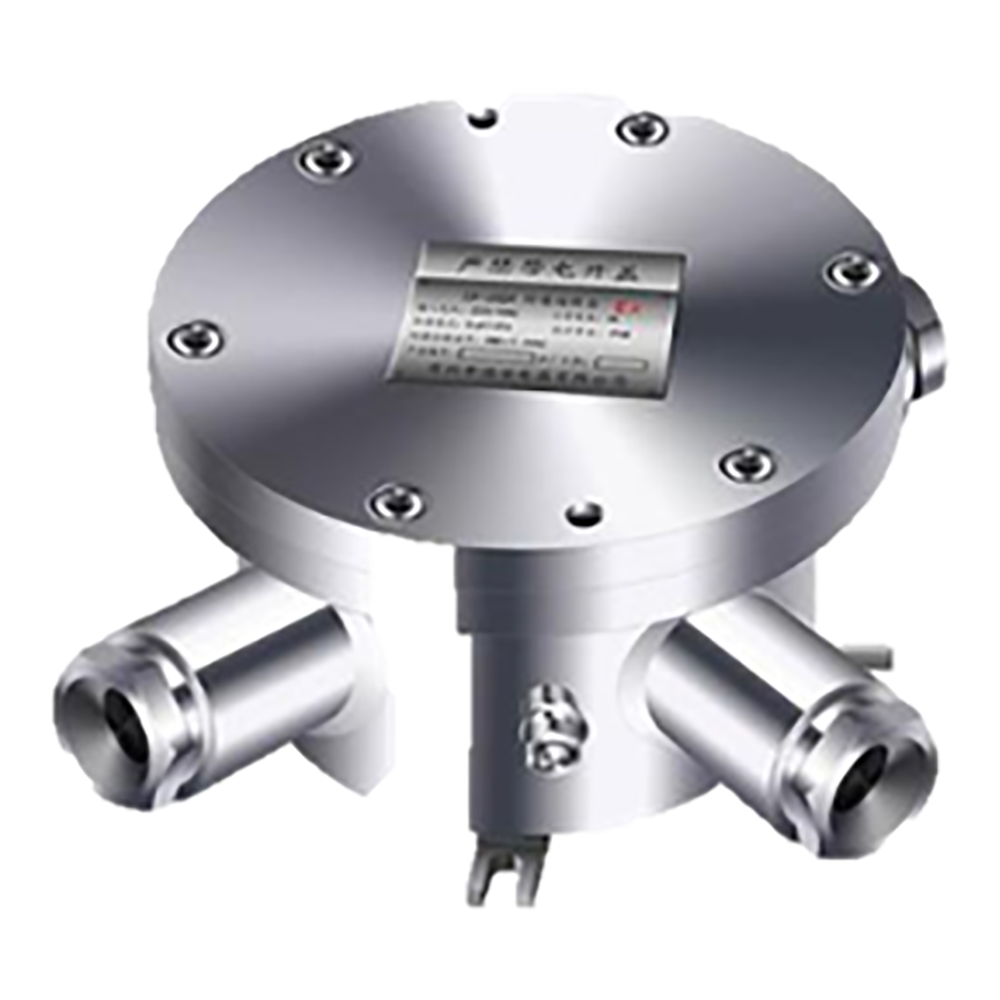

Dahua - DH-ZA-JXD4 - Junction Box for Explosion-protected Cameras
Part number:
DH-ZA-JXD4
Price:
316L Stainless steel junction box, IP68, 4 holes for cable connection (G-3/4-in.), -40º~+60º, Less than 95% RH (+25º), Certification No.: ZAJX-D4CNEx11.0529, Internal Dimensions: 100mm (L) x 100mm (W) x 75mm (H)
Features:
- 316L Stainless Steel Construction
- External Dimensions: ø187.0 mm x 84.0 mm (ø7.36 in. x 3.31 in.)
- Four (4) Cable Ports, G-3/4-in. Cable Entry Standard
- IP68 Ingress Protection
- Designed for Extreme Temperature Environments
- For Use with Explosion-protected Cameras
| Material | 316L Stainless Steel |
| Dimensions | |
| External | ø187.0 mm x 84.0 mm,(ø7.36 in. x 3.31 in.) |
| Internal (L x W x H) | 100.0 mm x 100.0 mm x 75.0 mm,(3.94 in. x 3.94 in. x 2.95 in.) |
| Pipe Thread | G-3/4 in |
| Weight | 3.20 kg (7.05 lb) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F) |
| Humidity | Less than 95% RH |
| Ingress Protection | IP68 |
