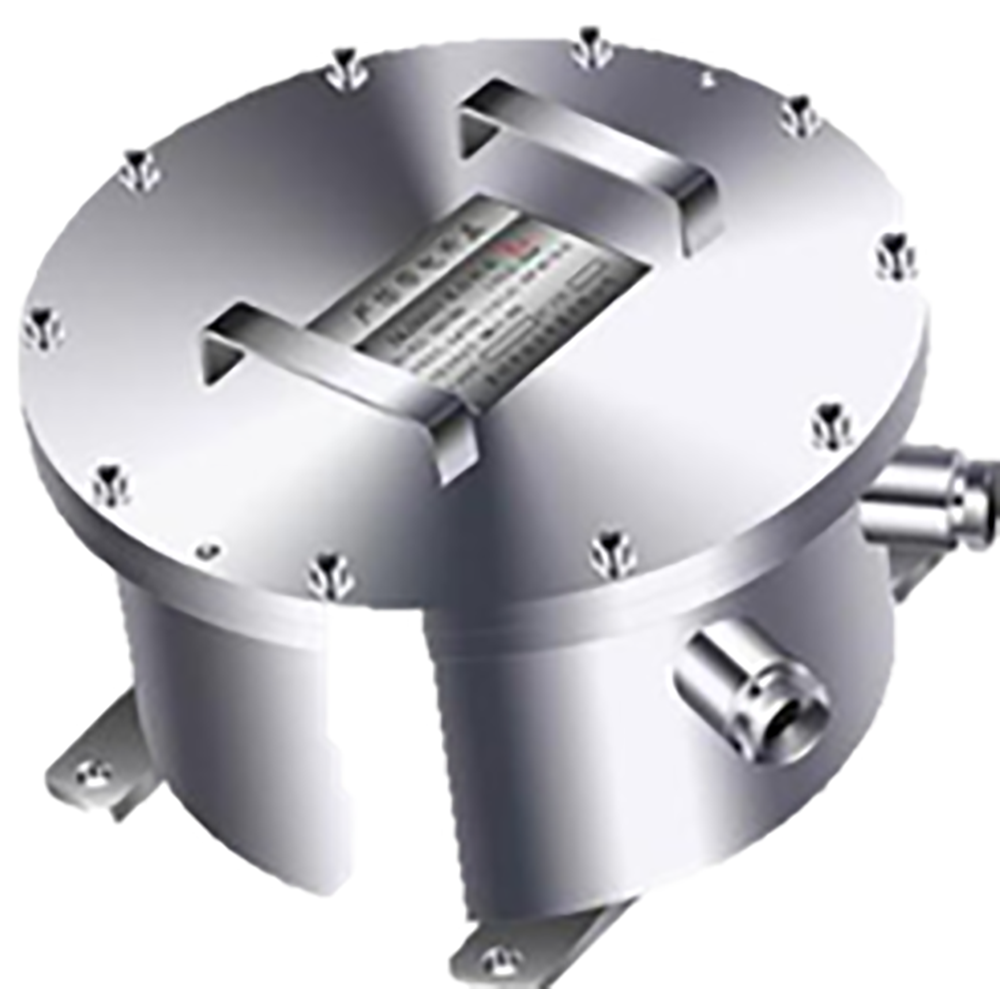

Dahua - DH-ZAJ300 - Junction Box (for use with Explosion-protected Cameras)
Part number:
DH-ZAJ300
Price:
316L Stainless steel junction box, IP68, 4 holes for cable connection (G-3/4-in.), -40º~+60º, Less than 95% RH (+25º), Certification No.: ZAJ300CNEx12.0005, Internal Dimensions: 234mm (L) x 234mm (W) x 119mm (H)
Features:
- 316L Stainless Steel Construction
- External Dimensions: ø347.0 mm x 177.0 mm (ø13.66 in. x 6.70 in.)
- Six (6) Cable Ports, G-3/4-in. Cable Entry Standard
- IP68 Ingress Protection
- Designed for Extreme Temperature Environments
- For Use with Explosion-protected Cameras
| Material | 316L Stainless Steel |
| External | ø347.0 mm x 177.0 mm (ø13.66 in. x 6.70 in.) |
| Internal (L x W x H) | 234.0 mm x 234.0 mm x 119.0 mm (9.21 in. x 9.21 in. x 4.69 in.) |
| Pipe Thread | G-3/4 in. |
| Weight | 14.70 kg (32.41 lb) |
| Operating Temperature | –40 °C to 60 °C (–40 °F to 140 °F), |
| Humidity | Less than 95% RH |
