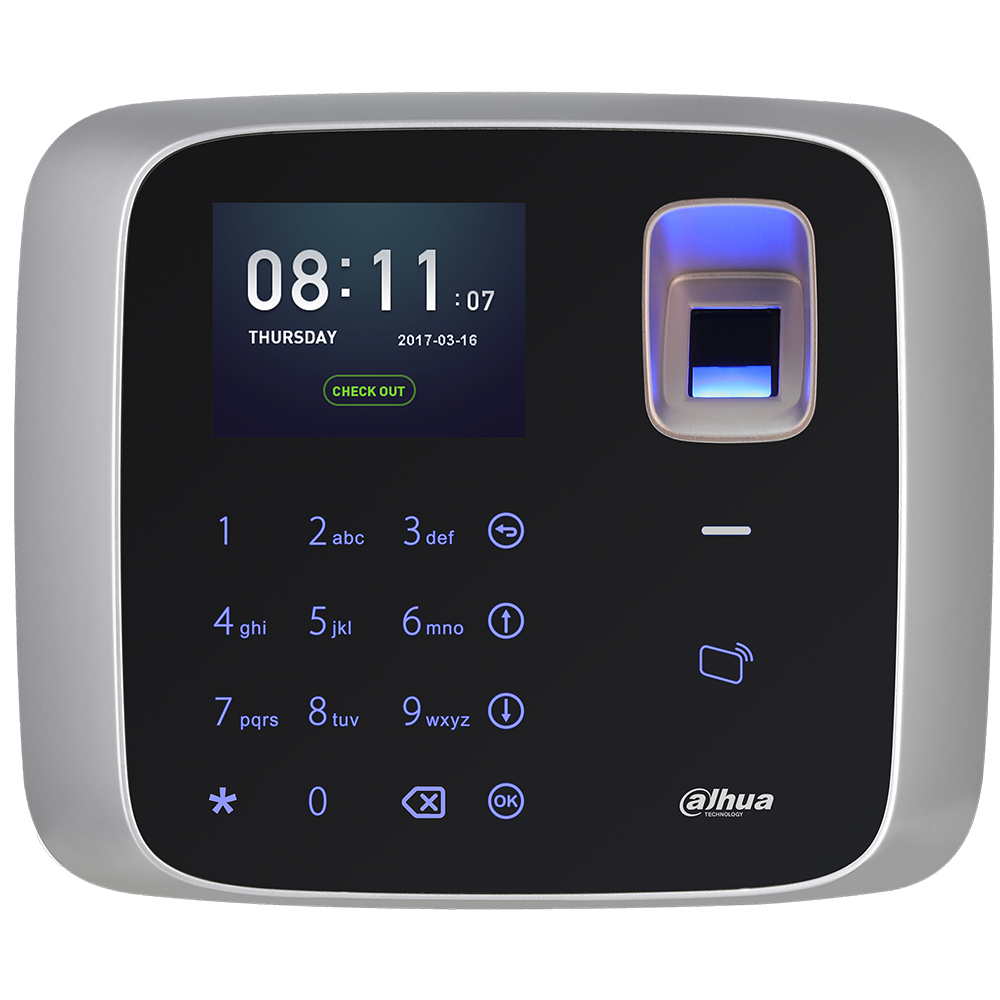

DHI-ASA2212A - EOL
This product has been discontinued.
Part number:
DHI-ASA2212A
Price:
Standalone Time and Attendance
Features:
- Supports Card, Password, and Fingerprint Credentials
- Supports MIFARE 13.56 MHz Cards
- Batch Functionality to Add Users
- Built-in Camera to Capture Real-time Photos
- Time-out/Time-in Management
- Touchscreen Keypad and LCD Display
- T9 Input Method
- Users Allowed to Query Attendance Records
- Download Attendance Report to USB Drive
- Upgrade Firmware via USB Drive
System
| Main Processor | ARM9 |
| Memory | 128 MB RAM + 32 MB Flash |
Interface
| Inputs | One (1) Exit Button |
| Output | One (1) Relay (for lock or external bell) |
| USB | host |
| Camera | 1.3 MP, Built-in |
Card Reader
| Format | IC (MIFARE) |
| Range | 3 cm to 8 cm (1.18 in. to 3.15 in.), maximum |
Fingerprint Reader
| Response Time | ≤ 0.5 s |
| FAR | ≤ 0.00004% |
| FRR | ≤ 0.15% |
Capacity
| Fingerprints | 3000 |
| Users | 1000 |
| Records | 150000 |
Functions
| Attendance Mode | Fixed / Flexible |
| Relay Mode | Simple Access Control or External Bell |
| User Level | User / Administrator |
| State Key Switch | Check-in, Check-out, Break-in, Break-out, OT-in, OT-out |
Name
Description
Size
Downloads
File
Data Sheet
0.7mb
File
Manual
1.2mb
