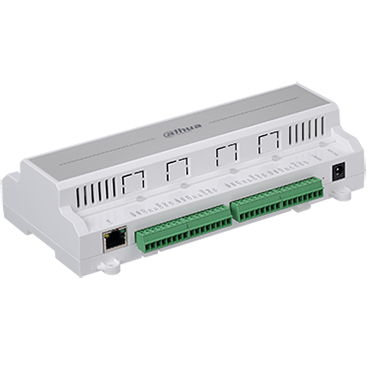

DHI-ASC1204B - EOL
This product has been discontinued.
Part number:
DHI-ASC1204B
Price:
Four-door Access Controller
Features:
- Removable terminal blocks support ease of wiring
- Scalable up to 64 four-door controllers managed by SmartPSS
- Supports controlled lock down of all connected access doors
- Easily integrate biometrics to secure sensitive locations
- Enable anti-passback and multi-door interlock to control traffic in high security applications
System
| Main Processor | 32-bit ARM Cortex-M3 |
| Memory | 16 MB (32 MB external) |
Input/Output Ports
| Inputs | Nine (9) Normally Open, Supervised Inputs, 0 VDC to 5 VDC nominal: • Four (4) Door Sensors • Four (4) Exit Buttons • One (1) Alarm |
| Outputs | Five (5) Dry Relays: • Four (4) Lock Relays Form C, 3 A at 24 VDC maximum¹ • One (1) Alarm Relay, Switching Signal Type, 1 A at 24 VDC maximum |
| Readers | Four (4) Reader Inputs • 11 VDC to 13 VDC, current limited • 300 mA, maximum per port |
Capacity
| Card Holders | 100000 |
| Events | 150000 |
Functions
| Unlock Modes | Card, Fingerprint, Password, Card + Password, Card or Password, Card + Fingerprint, Fingerprint + Password, and By Period |
| User Management | General, VIP, Guest, Patrol, Black List, Duress |
| Alarm Function | • Door time-out Alarm • Intrusion Alarm • Duress Alarm • Tamper Alarm |
| Schedule Settings | Schedule: 128 Groups Period: 128 Groups Holiday: 128 Groups |
Interface
| Reader Compatibility | |
| Wiegand Reader Data | 24 AWG, 5 conductor stranded cable without shield, 40.0 m (131.23 ft), maximum |
| RS485 Reader Data | 24 AWG, 120 Ω Impedance, 3 conductor stranded cable without shield, 100.0 m (328.08 ft) maximum. Use a separate power supply to extend the RS485 reader data up to 1000.0 m (3280.84 ft), maximum |
| Network Compatibility | TCP/IP, RJ-45 (10/100 Mbps) |
Operations
| Power Supply | External 9 VDC to 15 VDC, 500 mA Power Supply is Required |
| On-board Lithium Battery | 3 V, 220 mAh, CR2032 |
| Operating Temperature | –30° C to +60° C (–22° F to +140° F) |
| RTC | Support |
