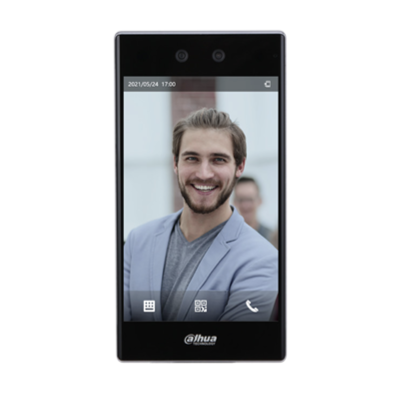

The DHI-ASI8213SA-W is an advanced Video Access Controller with a 2MP HD dual-camera system for superior video quality. This device, which runs on the powerful Android 11 platform, provides a variety of identification options, including cutting-edge facial detection and QR codes access. With its sleek 8-inch touch 2.5D screen designed for seamless interaction, you can navigate with ease. It is tough and ready for any environment, with an IP65 rating for dependable outdoor installation. The device also includes a discretely integrated IC card reader and a full-featured video intercom, combining all of your access control requirements into a single advanced unit.
Features:
- Built-in Android 11 OS
- 8-in. LCD with 800 × 1280 resolution
- 2MP dual-lens CMOS camera with True WDR (120 dB)
- Supports 100,000 users, 100,000 faces, 500,000 cards, 50 administrators, and 300,000 records
- Face, IC card, password, and QR code unlock methods
- Recognizes faces 0.3 m to 3.0 m away (0.98 ft to 9.84 ft)
- Face Detection+ accuracy rate of 99.9%
- Average 1:N comparison time of 0.2
| Main Processor | Embedded Processor |
| Network Protocol | RTSP, DNS, P2P, UPnP, RTIP, RTMP, SIP, SSH, HTTP/ HTTPS, ONVIF |
| OSDP Protocol | Supported |
| Interoperability | ONVIF, CGI |
| Card Type | IC Card |
| Management System | Stand-alone, DSS Pro, DSS Agile VDP, DMSS |
| Web Configuration | Supported |
| Auto Registration | Supported |
| Peripheral Card Reader | Supported |
| Performance | |
| Card Reading Distance | 5 cm (1.97 in.) (IC card) |
| Face Detection+ Height Range | 0.9 m to 2.4 m (2.95 ft to 7.87 ft) |
| Face Detection+ Distance | 0.3 m to 3 m (0.98 ft to 9.84 ft) |
| Face Detection+ Accuracy | 99.9% |
| Face Detection+ Time | 0.2 s |
| User | 100,000 |
| Face Image | 100,000 |
| Card | 500,000 |
| Password | 100,000 |
| Record | 300,000 |
| RS-485 | One (1) |
| RS-232 | One (1) |
| Wiegand | One (1), Input or Output (Configurable) |
| USB | One (1) USB 2.0 (Type-C) |
| Network Port | One (1) RJ-45 10/100/1000 Mbps Ethernet |
| Exit Button | One (1) |
| Door Status Detection | One (1) |
| Lock Control | One (1), open by default |
| Display Size | 8-in. LCD |
| Touch Technology | Capactive |
| Display Resolution | 800 (H) x 1,280 (V) |
| Image Sensor | 1/2.8-in. 2MP CMOS (Dual-lens Camera) |
| Backlight Compensation | Auto IR, True WDR (120 dB) |
| Unlock Mode | Card, Face, Remote, Password, QR Code, Combination |
| Voice Prompt | Supported |
| Remote Verification | Supported |
| Restricted/Trust List | Supported |
| WiFi | Supported |
| Advertisement Display | Supported |
| Real-time Monitoring | Supported |
| Capture Function | Supported |
| Power Supply | VDC, 2 A | |
| Power Consumption | ≤ 8 W (Standby), ≤ 10 W (Working) | |
| Environmental | ||
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) | |
| Operating Humidity | 0%–90% (RH), non-condensing | |
| Operating Altitude | m to 1,300 m (0 ft to 4,265.09 ft) | |
| Operating Environment | Indoor, Outdoor | |
| Ingress Rating | IP65 | |
| Certifications | ||
| Standards | FCC 47CFR§2.1091 KDB-447498 D01 V06 CFR 47 Part 15 Subpart C CFR 47 Part 15 Subpart B | |
| Construction | ||
| Casing Material | PC | |
| Product Dimensions | 237.4 mm × 122.6 mm × 24.8 mm (9.35 in. × 4.83 in. × 0.98 in.) | |
Packaging Dimensions (H × W × D) | Carton | mm × 164 mm × 72 mm (11.77 in. × 6.46 in. × 2.83 in.) |
| Protection Box | mm × 320 mm × 360 mm (15.35 in. × 12.60 in. × 14.17 in.) | |
| Gross Weight | 1.02 kg (2.25 lb) | |
| Installation | Wall Mount (Included), Floor Mount, Turnstile Mount, 86 Case Mount | |
