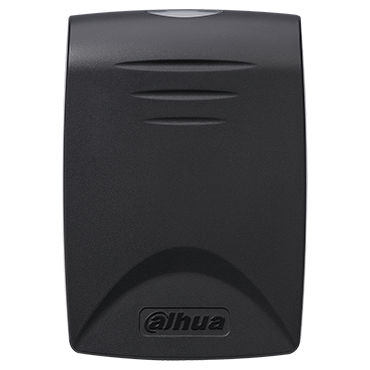

DHI-ASR1100B - EOL
This product has been discontinued.
Part number:
DHI-ASR1100B
Price:
Wiegand26/34 bits RS-485 protocol, 13.56MHz (Mifare), Water-proof design, Red and Green indicator LEDs, Watch dog function ensure device free from halting, Surface mounted installation, UL Approved
Features :
- Wiegand Protocol
- Default IC (MIFARE) Card
- Waterproof Design
- Watch Dog Function for Tamper Detection
- Audible and Visual Indicators
- Surface-mount Installation
System
| Main Processor | 8-bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
Reader
| Format | 13.56 MHz MIFARE |
| Distance | 6.0 cm to 8.0 cm (2.36 in. to 3.15 in.), maximum |
| Response Time | < 0.1 s |
Interface
| To Controller | Wiegand or RS485 |
Electrical/Environmental
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Operating Temperature | -30° C to +60° C (-22° F to +140° F) |
| Ingress Protection | IP67, water-resistant |
Construction
| Color | Black |
| Dimensions | 72.0 mm x 102.0 mm x 18.0 mm (2.83 in. x 4.02 in. x 0.71 in.) |
| Net Weight | 0.20 kg (0.44 lb) |
