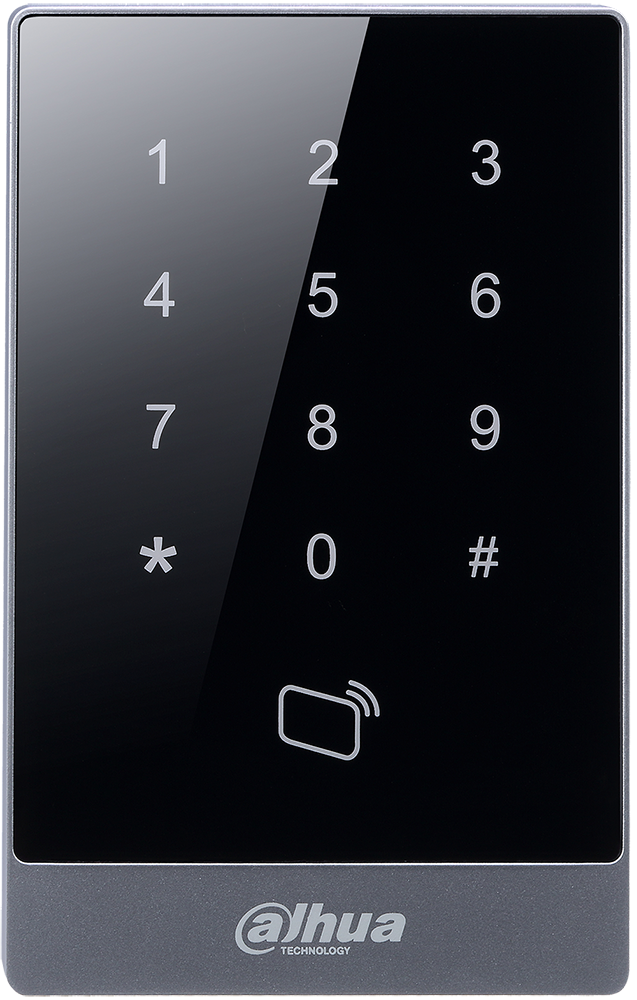

Wiegand26/34 bits protocol, 13.56MHz (Mifare), Red and Green LEDs, Sensitive touch keypad with blue backlight, Watch dog function ensure device free from halting, Beep Buzzer and LED indicator, Surface mounted installation, UL Approved
Features :
- Wiegand 34 and RS485 Protocols
- MIFARE 13.56 MHz Card
- Watch Dog Function for Tamper Detection
- Sensitive Touch Keypad with Blue Backlight
- Audible and Visual Indicators
- Surface-mount Installation
System
| Main Processor | 8-bit |
| LCD Display | Blue Backlight |
| Audible Indicator | Buzzer |
Reader
| Format | 13.56 MHz MIFARE |
| Distance | 6 cm to 8 cm (2.36 in. to 3.15 in.), maximum |
| Response Time | < 0.1 s |
| Keypad | Sensitive Touch Keypad 12 Keys (1 to 9, *, #) |
Interface
| To Controller | Wiegand 34 RS485 |
Electrical/Environmental
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Operating Temperature | -30° C to +60° C (-22° F to +140° F) |
| Operating Humidity | ≤ 95% |
Construction
| Color | Black |
| Dimensions | 135.70 mm x 86.80 mm x 12.70 mm (5.34 in. x 3.42 in. x 0.50 in.) |
| Net Weight | 0.25 kg (0.55 lb) |
