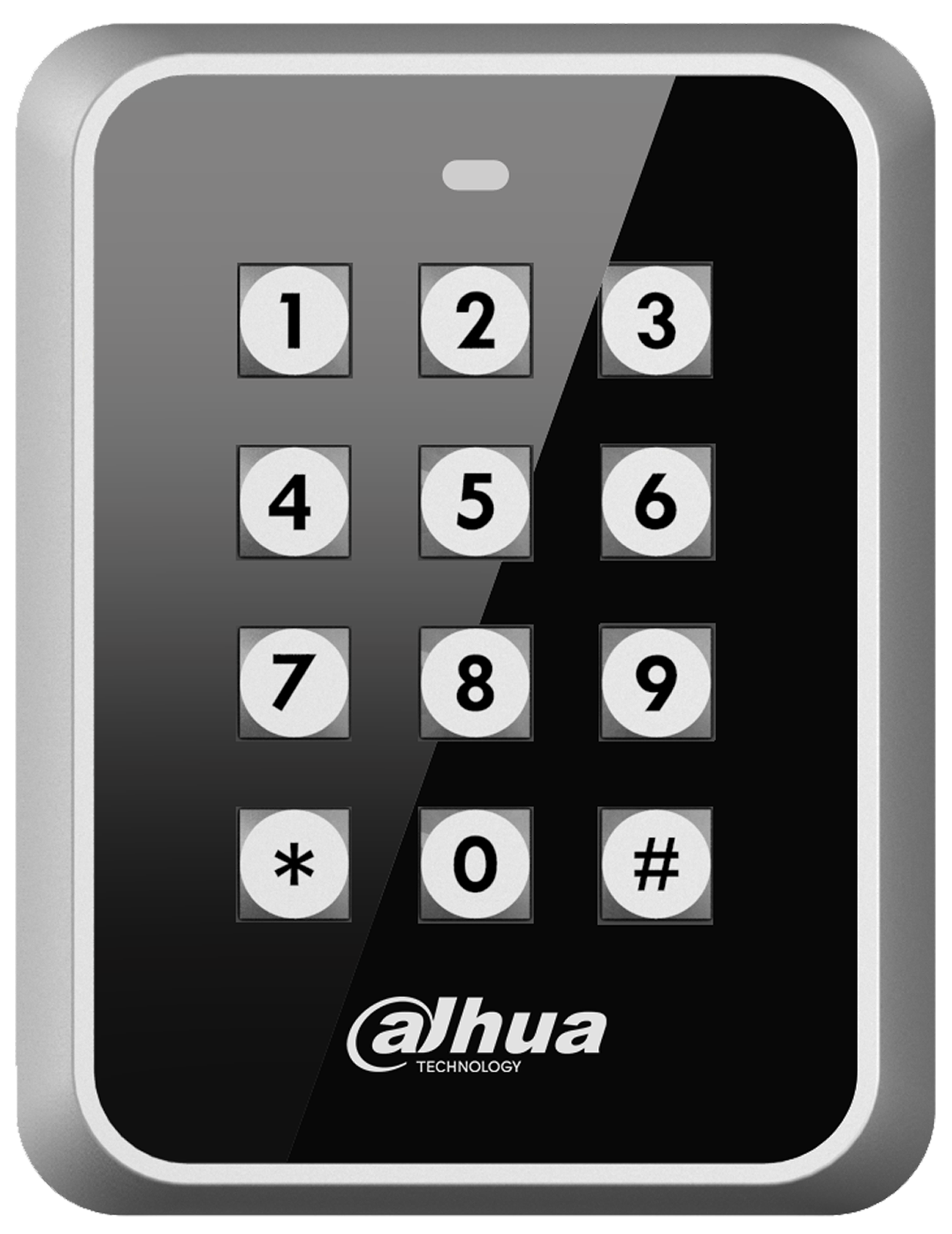

DHI-ASR1101M - EOL
This product has been discontinued.
Part number:
DHI-ASR1101M
Price:
Wiegand26/34 bits RS-485 protocol, 13.56MHz (Mifare), All-metal buttons with blue backlight, Red and Green indicator LEDs, Watch dog function ensure device free from halting, Surface mounted installation, UL Approved
Features :
- Wiegand 34 or RS485 Protocol
- MIFARE 13.56 MHz Card
- Watch Dog Function for Tamper Detection
- Metal Keypad Buttons with Blue Backlight
- Audible and Visual Indicators
- Surface-mount Installation
System
| Main Processor | 8-bit |
| LCD Display | Red and Green LED Indicators, Blue Backlight |
| Audible Indicator | Buzzer |
Reader
| Format | 13.56 MHz MIFARE |
| Distance | 6.0 cm to 8.0 cm (2.36 in. to 3.15 in.), maximum |
| Response Time | < 0.1 s |
| Keypad | Metal Button Keypad 12 Keys (1 to 9, *, #), Key 5 has Braille Markings |
Interface
| To Controller | Wiegand 34 or RS485 |
Certifications
| Safety | EN 60950-1:2006+A11:2009+A1:2010+A12:2001+A2:2013 UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 |
| Electromagnetic Compatibility (EMC) | FCC CFR 47 Part 15 subpart B EN 55032:2015 EN 55024:2010+A1:2015 EN 50130-4:2011+A1:2014 EN 6100-3-2:2014, EN 6100-3-3:2013 |
Electrical/Environmental
| Power Supply | 9 VDC to 15 VDC, 100 mA |
| Operating Temperature - | -30° C to +60° C (-22° F to +140° F) |
| Operating Humidity | ≤ 95% |
| Vandal Resistance | IK08 |
Construction
| Color | Black |
| Dimensions | 110.10 mm x 85.20 mm x 26.0 mm (4.33 in. x 3.35 in. x 1.02 in.) |
| Net Weight | 0.50 kg (1.10 lb) |
