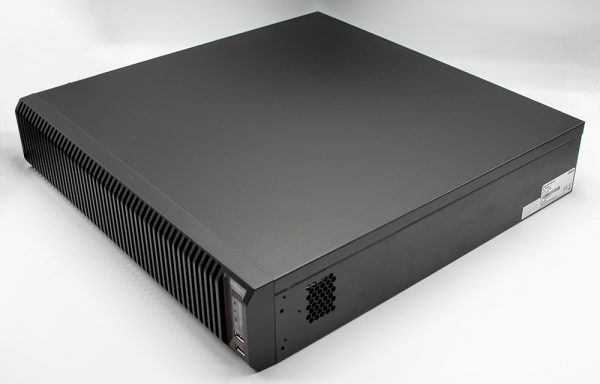

Dahua - DHI-IVSS7008-1T - 128ch Intelligent Video Surveillance Server
Part number:
DHI-IVSS7008-1T
Price:

The Dahua Intelligent Video Surveillance Server Series (IVSS) combines Deep Learning algorithms, a powerful Graphics Processing Unit (GPU), and an advanced Network Video Recorder (NVR) into an all-in-one Artificial Intelligence server. Dahua built the IVSS series from the ground-up as a dedicated AI surveillance server that eliminates the complications of browser updates, incompatible camera plug-ins, incompatible flash memory, and outdated Web technology.



The integrated GPU module and advanced deep learning algorithms perform powerful video structure analysis with metadata, achieve precision human facial analysis, and support four (4) channels of real-time face recognition based on a database that stores up to 100,000 faces. IVSS technology captures, records and categorizes various facial features, including age, gender, expression, and whether the target face wears glasses or sports facial hair; compares the data to faces in the database, and displays real-time facial recognition data.



IVSS offers advanced features to customize the powerful Artificial Intelligence for different applications. For example, facial feature filtering displays only those faces that meet target criteria and Stranger Mode detects a face not stored in the database and triggers an alarm, takes a snapshot, or records the face for further scrutiny. The IVSS is ideal for applications that require entrance/exit management, where knowing who is coming and going is a valuable asset.



Features:

  • Intel Dual-core Processor
  • Maximum 400 Mbps Incoming Bandwidth
  • 128 IP Channel Video Access
  • Facial Database Management, Stores up to 100,000 Faces
  • Facial Recognition Processing on Up to Four (4) Channels
  • Stranger Mode to Detect Faces not Stored in Database
  • Search by Image
  • 2U, 8 HDD Ports (up to 10 TB per disk)
  • Supports RAID 0/1/5/10
  • Three (3) HDMI and One (1) VGA Video Outputs
  • 5-year Warranty (for products sold through an authorized Dahua dealer)

System

Main ProcessorIntel Dual-core Processor
Memory8 GB, up to 32 GB
Operating SystemEmbedded LINUX

Artificial Intelligence

Face RecognitionUp to Four (4) Channels
MetadataStructured data for gender, age, expression, glasses, moustache, and mask
Stranger Mode• Detects a face not stored in the IVSS database.
• Similarity Threshold set manually.
Trigger EventsBuzzer, snapshot, recording
Search by Image• Up to ten (10) target face image searches simultaneously.
• Supports Similarity Threshold for each target face image.
Database Management20 Face Databases
• 100,000 total face images.
• Stores name, gender, birthday, nationality, address, ID information for each face picture.
Database ApplicationEach database can be applied to video channels independently.

Audio and Video

IP Camera Input128 Channels
AudioInput: One (1) Channel, RCA
Output: (2) Channels, RCA

Display

InterfaceThree (3) HDMI Outputs One (1) VGA Output
Native Output ResolutionHDMI (all outputs) : 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
VGA : 1920 × 1080 , 1280 × 1024, 1280 × 720
Maximum Decoding20 Channels of 1080p at 30 fps
Multi-screen DisplayUp to 36 Splits for each screen
On-screen DisplayCamera Title, Time, Camera Lock, Motion Detection, Recording

Recording

CompressionH.265, H.264, MJPEG, MPEG4
Supported IP Camera Resolution12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p
Maximum Incoming Bandwidth400 Mbps
Maximum Recording Bandwidth320 Mbps
Record ModeSchedule (Continuous Event)

Video Detection and Alarm

Trigger EventsRecording, Snapshot, Buzzer
Video DetectionMotion Detection, MD Zones: 396 (22 × 18); Tampering
Alarm Inputs16 Channels
Relay OutputsEight (8) Channels
