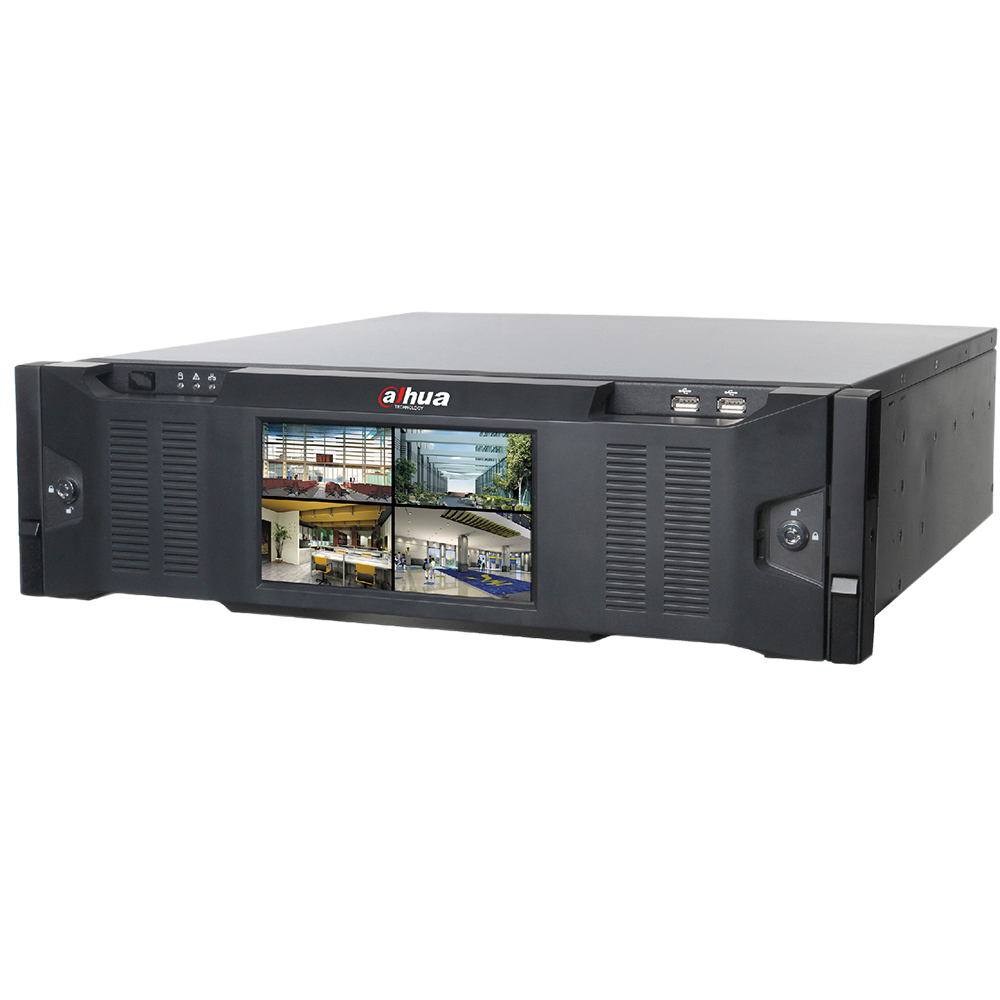

The Dahua Intelligent Video Surveillance Server Series (IVSS) combines Deep Learning algorithms, a powerful Graphics Processing Unit (GPU), and an advanced Network Video Recorder (NVR) into an all-in-one Artificial Intelligence server. Dahua built the IVSS series from the ground-up as a dedicated AI surveillance server that eliminates the complications of browser updates, incompatible camera plug-ins, incompatible flash memory, and outdated Web technology.
The integrated GPU module and advanced deep learning algorithms perform powerful video structure analysis with metadata, achieve precision human facial analysis, and support 16 channels of real-time face recognition based on a database that stores up to 300,000 faces. IVSS technology captures, records and categorizes various facial features, including age, gender, expression, and whether the target face wears glasses or sports facial hair; compares the data to faces in the database, and displays real-time facial recognition data.
IVSS offers advanced features to customize the powerful Dahua Analytics for different applications. For example, facial feature filtering displays only those faces that meet target criteria and Stranger Mode detects a face not stored in the database and triggers an alarm, takes a snapshot, or records the face for further scrutiny. The IVSS is ideal for applications that require entrance/exit management, where knowing who is coming and going is a valuable asset.
Features:
- Intel Quad-core Processor
- Maximum 512 Mbps Incoming Bandwidth
- 256 IP Channel Video Access
- Facial Database Management, Stores up to 300,000 Faces
- Analytics+ Functions – Facial Recognition on 16 Channels or Perimeter Protection on 32 Channels or a Combination of the Two (increased analytic channels available with additional modules)
- Stranger Mode to Detect Faces not Stored in Database
- Supports RAID 0/1/5/6/10
- SAS 3.0 for Storage Extension
- Three (3) HDMI and One (1) VGA Video Outputs
- Redundant Power
- 5-year Warranty (for products sold through an authorized Dahua dealer)
| System | |
| Main Processor | Embedded Micro Controller |
| Operating System | Embedded LINUX |
| Operating Interface | Web (PCAPP), Local GUI |
| Network | |
| Video Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression | G.711a, G.711u, PCM, G726 |
| Interface | Four (4) RJ45 Ports (10/100/1000 Mbps) Self-adaptive E |
| Network Port Mode | NIC Binding Mode, including: Multiple-address Mode, Load Balancing, Fault-tolerance |
| Network Protocol | HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, P2P |
| Interoperability | ONVIF (Profile S, T and G), CGI, SDK |
| Web Browser | PCAPP (other browser can only setup, no live view) |
| Mobile Operating System | iOS, Android |
Video
| Remote Connections | 256 Channels | |
| Network Bandwidth | Incoming | 512 Mbps |
| Recording | 384 Mbps | |
| Outgoing | 128 Mbps | |
| Supported Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF, QCIF | |
| Decoding Capability | 6 Channels of 12 MP at 20 fps 7 Channels of 12 MP at 15 fps 6 Channels of 8 MP at 30 fps 12 Channels of 8 MP at 15 fps 7 Channels of 6 MP at 30 fps 9 Channels of 5 MP at 30 fps 11 Channels of 5 MP at 25 fps12 Channels of 4 MP at 30 fps 18 Channels of 4 MP at 20 fps 19 Channels of 3 MP at 25 fps 12 Channels of 1080p at 60 fps 24 Channels of 1080p at 30 fps 36 Channels of 720p at 30 fps | |
| Video Output | VGA: One (1) Channel HDMI: Three (3) Channels Supports 4K Video Output VGA Out 1 and HDMI Out 1 send the same video stream | |
| Multi-screen Display | Maximum 36-channel Local Live View Maximum 16-channel PCAPP Live View Customized Display | |
| Third-party Support | ONVIF, RTSP, Sony, Panasonic, Axis, Arecont, Pelco, Canon, Samsung | |
| Multiple-Channel Playback | Maximum 16-channel Playback |
| Record Search | Video Detection Search, Manual Record, I/O Alarm, Intelligent Event, All Records |
| Storage Medium | Internal HDD SAS Disk Array Enclosure |
| Backup Method | HDD Peripheral USB Storage Device |
| Playback Function | Play, Pause, Stop, Fast Forward, Fast Backward, Reverse Play, Frame by Frame Play, Full-screen, Backup (clip/file), Snapshot, Digital Zoom, Audio On/Off |
| Power Supply | 100 VAC to 240 VAC ±20%, 50/60 Hz |
| Power Consumption | 110 W, without HDD and idling |
| Operating Conditions | 0° C to +45° C (32° F to 113° F), 10% to 90% RH |
| Storage Conditions | 0° C to +40° C (32° F to 104° F), 30% to 85% RH |
| Operating Altitude | 5000.0 m (16,404.20 ft) |
