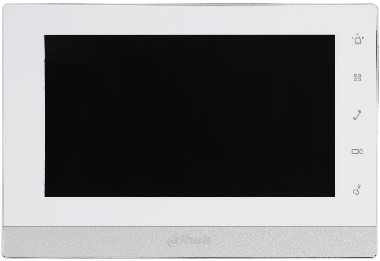

DHI-VTH1550CH-S
Part number:
DHI-VTH1550CH-S
Price:

The DHI-VTH1550CH-S indoor monitors allow tenants to view and talk with visitors, record call sessions, monitor the surroundings from outdoor stations and IP cameras and remotely unlock doors. Visitors can also leave messages, which can be retrieved from the indoor monitor or remotely using the iDMSS or gDMSS app. The DHI-VTH1550CH-S indoor monitor is used as part of a video intercom solution with compatible outdoor stations.



Features:

  • 7-inch Capacitive Touch Screen, 800 x 480 Resolution
  • Simplified Connection and Setup to Compatible Outdoor Stations
  • Monitor up to 32 IP Cameras
  • Integrated Micro SD Card Slot, maximum 32 GB
  • Perform Call Session Recordings and Take Snapshots of Live Video (requires SD card)
  • Setup and Activate up to Six (6) Alarm Inputs
  • Surface-mounted
System
Main ProcessorEmbedded Micro Processor
Operating SystemEmbedded Linux
Display
Viewing Area7-in. TFT LCD, Capacitive
Resolution800 x 400 (WVGA)
InputTouchscreen Technology, and Mechanical Keys
Interface
AudioInput: Omnidirectional Microphone Output: Embedded Speaker Two-way Talk
Audio CompressionG.711
AlarmInput: Six (6) Channels Output: One (1) Channel
MemoryMicro SD, 32 GB maximum
Network
Video CompressionH.264
Ethernet10/100 Mbps, Self-adaptive
Network ProtocolTCP/IP
Third-party Camera SupportONVIF H.264 Cameras, maximum resolution of 720p
Management SoftwareDSS Express/Pro
Certifications
Electromagnetic Compatibility (EMC)FCC CFR 47 Part 15 subpart B
ANSI C63.4 - 2009
EN 55022:2010, EN 55024:2010, EN 50130-4:2011,
EN 61000-6-3:2007, EN 61000-3-2:2006+A1:2009
EN 61000-3-3:2008, IEC 61000-4-2:2008,
IEC 61000-4-3:2010, IEC 61000-4-4:2012,
IEC 61000-4-5:2005, IEC 61000-4-6:2008,
IEC 61000-4-8:2009, IEC 61000-4-11:2004
Electrical
Power12 VDC Can receive power from DHI-VTNS1060A, or Use a separate 12 VDC power supply
Power ConsumptionStandby: < 4 W Operation: < 6 W
Environmental
Operating Temperature-10° C to +55° C (14° F to +131° F)
Operating Humidity10% to 90%, Relative
Construction
Dimensions220.0 mm x 126.0 mm x 22.0 mm (8.66 in. x 4.96 in. x 0.87 in.)
Net Weight0.80 kg (1.76 lb)
InstallationSurface-mount
