DHI-VTNC3000A - EOL Replacement: DHI-VTNS2003B-2
This product has been discontinued. Replacement: DHI-VTNS2003B-2
Part number:
DHI-VTNC3000A
Price:

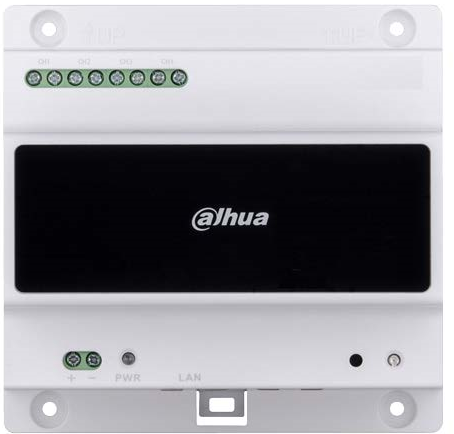

The DHI-VTNC3000A Network Controller is a specialized two-wire device that connects a mixture of indoor monitors and outdoor stations using standard two-wire cable. This device is designed to be used as part of a video intercom system.
Features:
- Four (4) two-wire Ports Provide Power and Signal to Video Intercom Systems
- One (1) RJ45 Port for LAN Connectivity
- Simple Installation Supports Surface or DIN-rail Mounting Applications
| Voltage | 24 V Requires a separate 24 VDC, 3 A power supply. |
| Power Consumption | 30 W, maximum Four-channel Output under Full Load |
| Operating Temperature | -10° C to +55° C (14° F to +131° F) |
| Dimensions | 107.85 mm x 110.55 mm x 65.80 mm (4.25 in. x 4.35 in. x 2.60 in.) |
| Net Weight | 0.50 kg (1.10 lb) |
