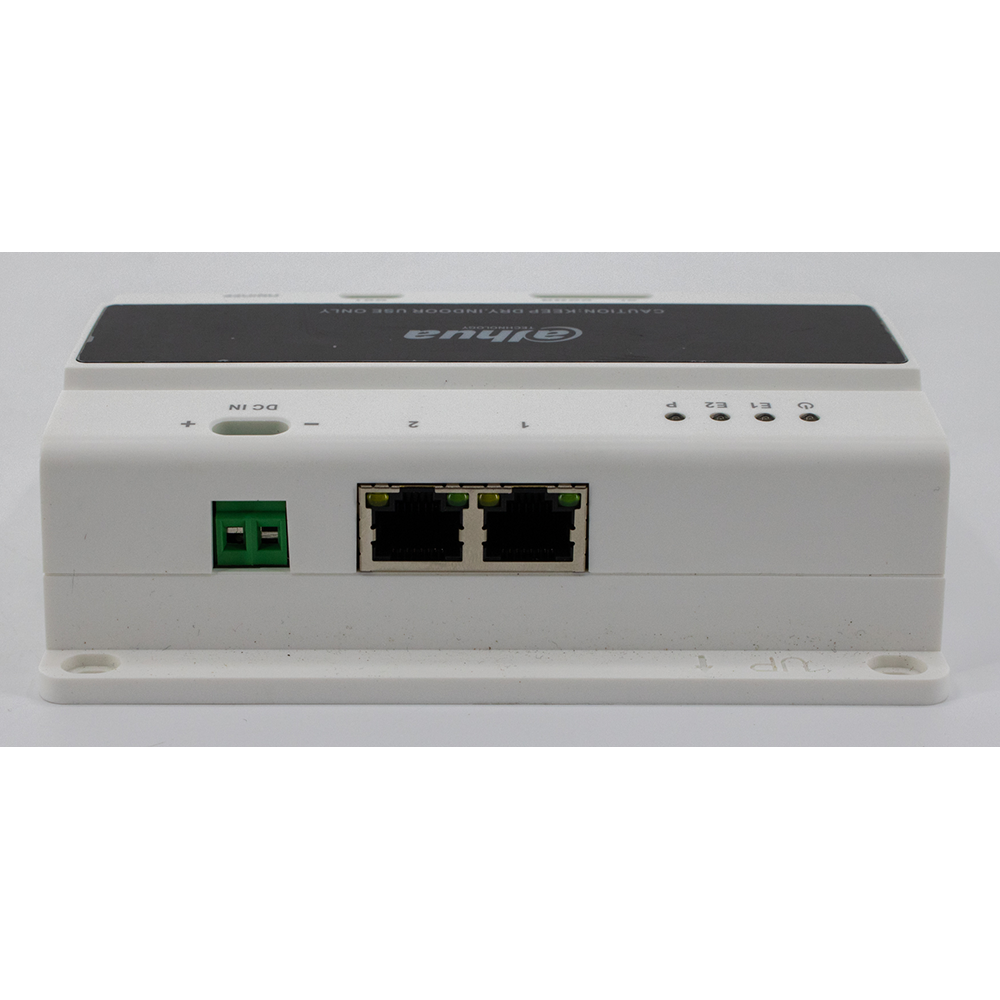

Dahua - DHI-VTNS2003B-2 - Two-wire Intercom Power Supply switch
Part number:
DHI-VTNS2003B-2
Price:
The two-wire power supply is a specialized device that connects a mixture of indoor monitors and outdoor stations using standard two-wire cable. This device is designed to be used as part of a video intercom system.
Features:
- 10-level Cascade via Two-wire Port
- Connect up to 20 Indoor Monitors and Two (2) Door Stations
- Supports Connection via an RJ45 Port
| Status Indicators | Power, Ethernet 1, Ethernet 2, P | |
| Communication Mode | Two-wire | |
| Cascade Ability | 10 | |
| Interface | ||
| Cascade | One (1) Two-wire Port | |
| Network | Two (2) RJ45 Ports, 10 Mbps/100 Mbps Ethernet | |
| Device | One (1) Two-wire Port | |
| Electrical | ||
| Power Supply | 48 VDC, 1 A to 3 A | |
| Power Consumption | ≤ 15 W (KIT) | |
| Environmental | ||
| Operating Temperature | –10° C to +55° C (14° F to +131° F) | |
| Operating Humidity | 10% to 95% (RH, non-condensing) | |
| Operating Altitude | 0 m to 3000.0 m (0 ft to 9842.52 ft) | |
| Construction | ||
| Material | PC + ABS | |
| Color | White | |
| Dimensions (L x H x W) | 131.12 mm x 103.0 mm x 40.0 mm | |
| (5.16 in. x 4.06 in. x 1.57 in.) | ||
| Net Weight | 0.25 kg (0.55 lb) | |
| Gross Weight | 0.39 kg (0.86 lb) |
