DHI-VTO1210C-X-S - EOL
This product has been discontinued.
Part number:
DHI-VTO1210C-X-S
Price:

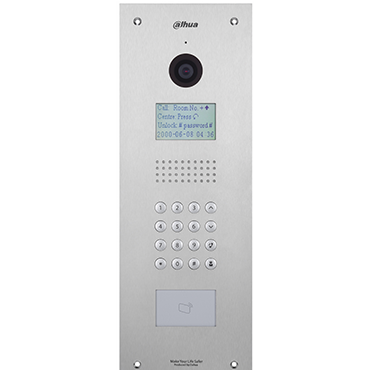

The DHI-VTO1210C-X-S Outdoor Station enables tenants to view and talk with visitors and remotely unlock doors from an in-unit color indoor monitor. Each outdoor station includes a built-in 13.56 MHz MIFARE® card access reader to allow tenants to securely gain access through exterior doors. Dahua Intercom devices are ideal for single-family homes as well as large residential complexes or commercial properties.
Features:
- 1.3 MP Wide Angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Connect Outdoor Stations to an NVR to Record Call Sessions from the Indoor Monitor
- Performs Door Unlock by Card
- Supports Secure Password Entry
- Stainless Steel Panel can be Surface- or Flush-mounted
- IP54 Ingress Protection and IK07 Vandal Resistance
System
| Main Processor | Embedded Micro Processor |
| Operating System | Embedded Linux |
Video
| Image Sensor | 1/2.7-in. 1.3 MP CMOS Sensor |
| Lens | 4 mm |
| Angle of View | Horizontal: 75° Vertical: 95° |
| Day/Night | Color Image |
Audio
| Input | Omnidirectional Microphone |
| Output | Built-in Speaker |
| Bi-directional Talk | Support for Dual-way Bi-directional Talk |
Display
| LCD Dimensions | 3-in. STN Screen |
| Resolution | 128 x 64 |
Operation
| Input | Mechanical Buttons |
| Reader | MIFARE® Card |
| Detection Distance | 0.60 m (1.97 ft) |
Interface
| Door Control | One (1) |
| Alarm | Two (2) Channels: One (1) Channel, Unlock Button One (1) Channel, Feedback |
| RS485 | One (1) Port |
Network
| Ethernet | 10/100 Mbps |
| Network Protocol | TCP/IP |
| Video Compression | H.264 |
| Audio Compression | G.711 |
Name
Description
Size
Downloads
File
Data Sheet
0.8mb
File
User Manual
1.8mb
