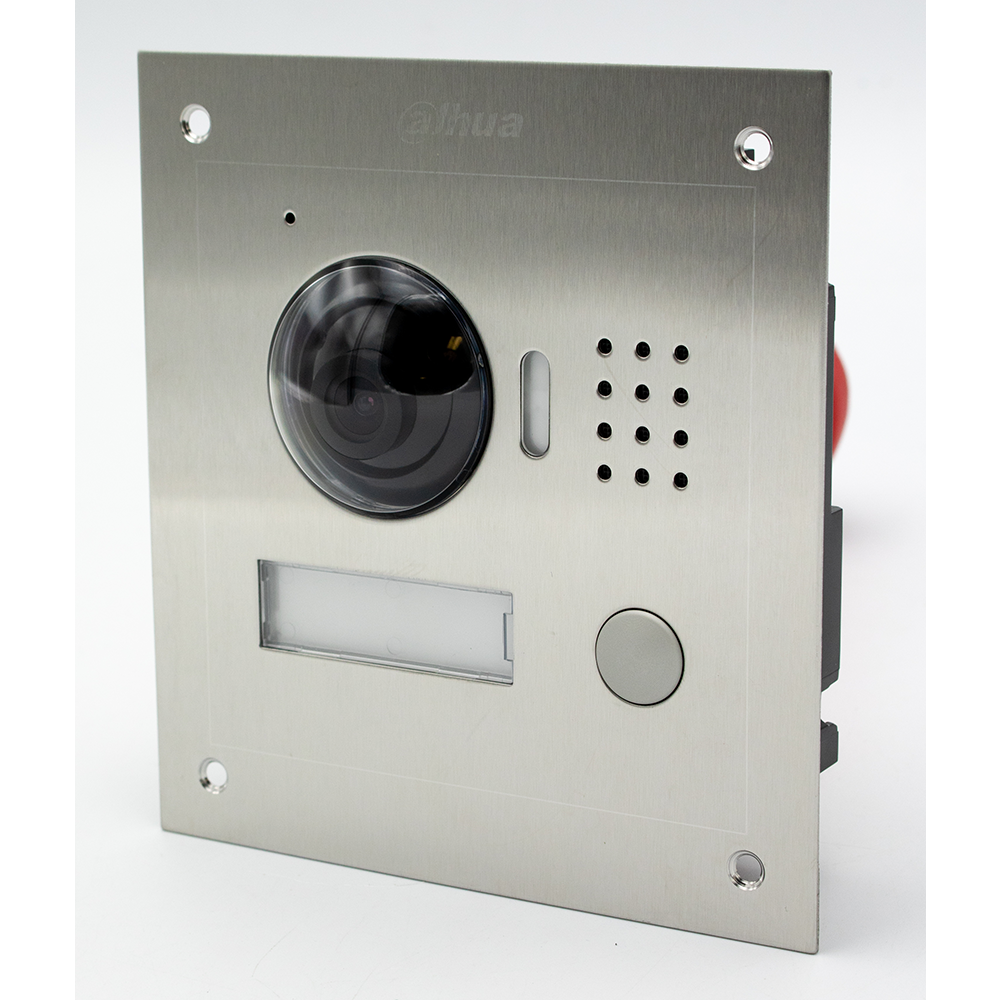

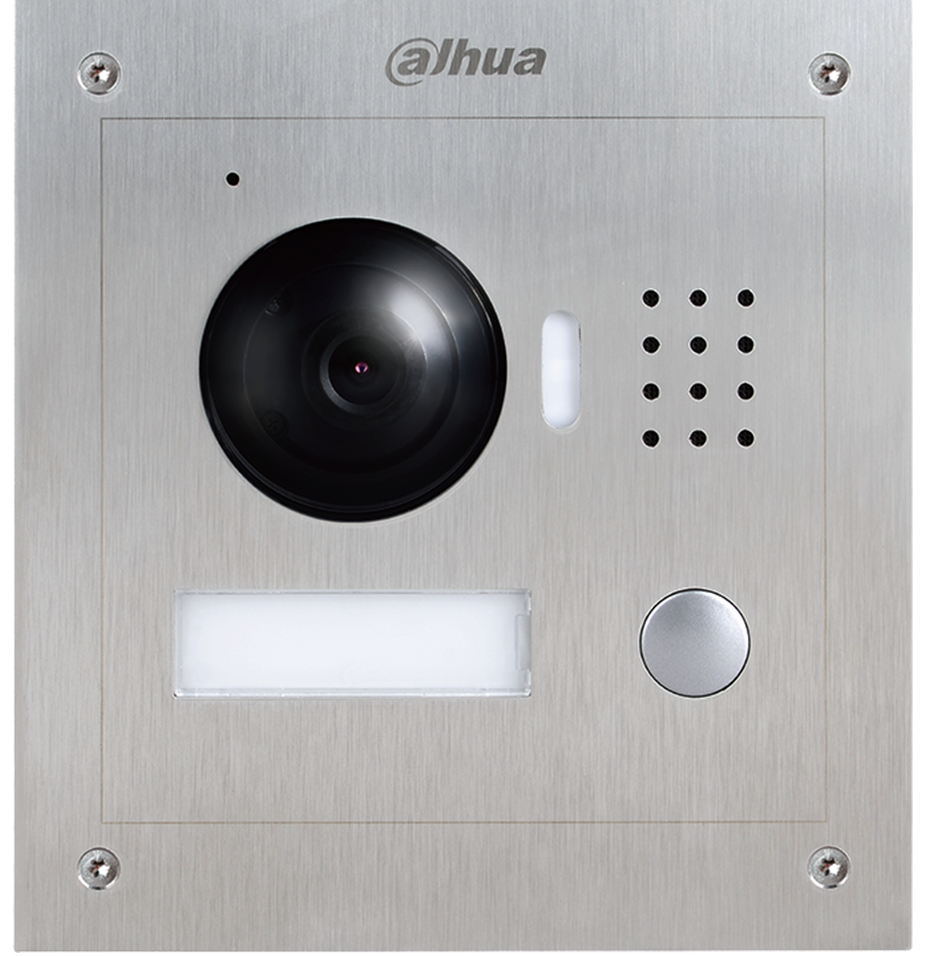

DHI-VTO2000A-S - EOL
This product has been discontinued.





Part number:
DHI-VTO2000A-S
Price:

The DHI-VTO2000A-S enables tenants to view and talk with visitors and remotely unlock doors all from an intuitive mobile app and an interior color indoor monitor. Each IP outdoor station includes a 1.3 MP wide angle camera with manual rear pivot, two-way talk and enables remote functions such as snapshot when ringing and video and audio message retrieval. Dahua Intercom devices are ideal for single-family homes as well as large residential complexes or commercial properties.



Features:

  • 1.3 MP Wide Angle Pivoting Camera with Night Vision
  • Built-in Microphone with Two-way Talk
  • Provides an Audible Alarm if Removed from the Wall
  • Connect Outdoor Stations to an NVR for Recording Call Sessions from the Indoor Monitor and for 24-hour Local Recording
  • Easily Leave and Retrieve Audio and Video Messages
  • View and Talk with Visitors and Remotely Unlock Doors Using the iDMSS/gDMSS App
  • Stainless Steel Panel can be Surface- or Flush-mounted
  • IP54 Ingress Protection and IK07 Vandal Resistance

System

Main ProcessorEmbedded Micro Processor
Operating SystemEmbedded Linux

Operation

InputSingle Mechanical Button
Door LockStatus Check Support (optional)

Video

Video CompressionH.264
Image Sensor1/3-in. 1.3 MP CMOS Sensor
Lens2.8 mm
Angle of ViewHorizontal: 90°
Vertical: 120°
Day/NightICR

Interface

AudioInput: Omnidirectional Microphone Output: Built-in Speaker
Two-way Talk
Audio CompressionG.711
Door ControlOne (1) Relay Out for Main Lock
Alarm InputTwo (2) Channels:
One (1) Channel, Unlock Button
One (1) Channel, Feedback
RS485One (1) Port
Tamper SwitchOne (1)

Network

Ethernet10/100 Mbps, Self-adaptive
Network ProtocolTCP/IP
