DHI-VTO2202F-P - EOL Replacement: DHI-VTO2202F-P-S2
This product has been discontinued. Replacement: DHI-VTO2202F-P-S2
Part number:
DHI-VTO2202F-P
Price:

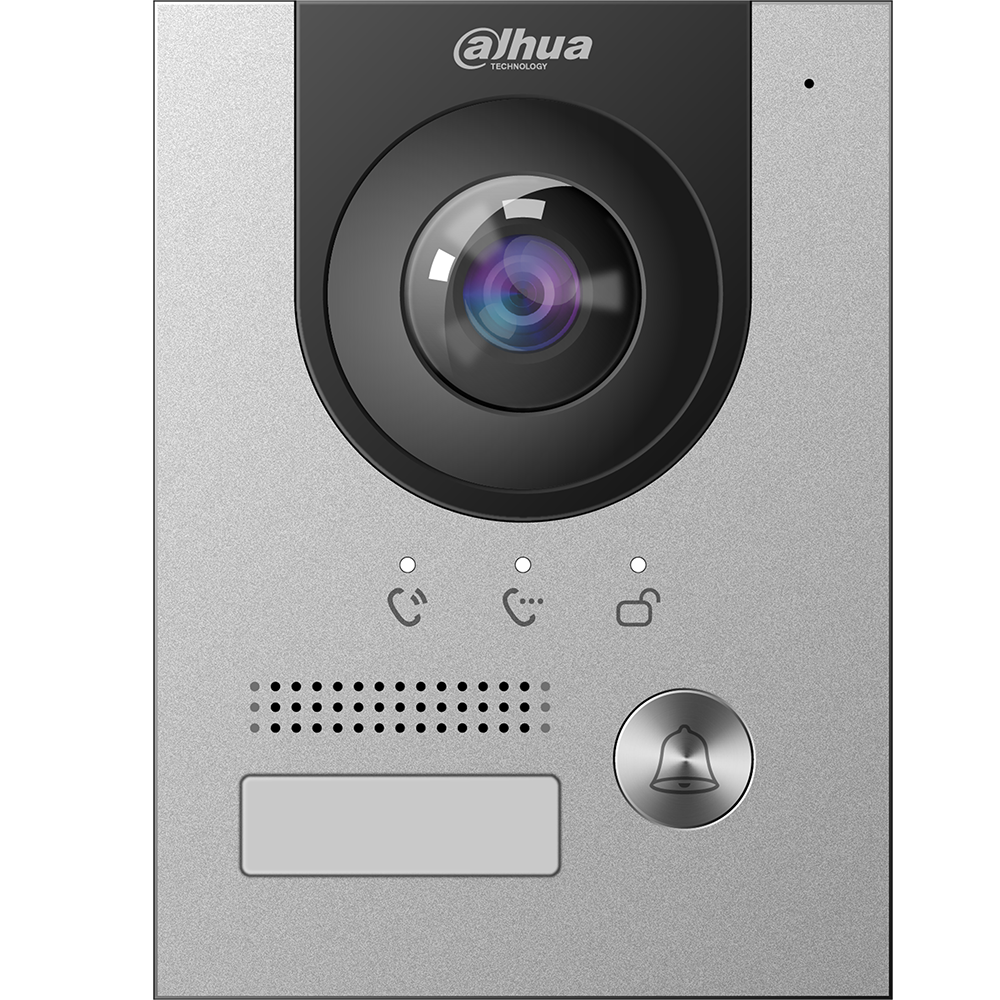

The DHI-VTO2202F-P enables tenants to view and talk with visitors and remotely unlock doors all from an interior color indoor monitor. The IP outdoor station includes a 2 MP wide-angle camera with, two-way talk, and enables remote functions such as snapshot when ringing and the ability to record video and audio messages to a VTH series monitor.
Features:
- 2 MP Wide-angle Camera with Night Vision
- Built-in Microphone with Two-way Talk
- Provides an Audible Alarm if Removed from the Wall
- Aluminum Panel can be Surface- or Flush-mounted
- IP65 Ingress Protection and IK07 Vandal Resistance
- Power via PoE
System
| Main Processor | Embedded Quad-core Processor |
| Operating System | Embedded Linux |
Audio and Video
| IP Camera Input | Eight (8) Channels |
| Two-way Talk | Input: One (1) Channel, RCA Output: One (1) Channel, RCA |
Display
| Interface | One (1) HDMI One (1) VGA |
| Native Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Maximum Decoding | Two (2) Channels of 4K/6 MP at 30 fps Three (3) Channels of 5 MP at 30 fps Four (4) Channels of 4 MP/3 MP at 30 fps Four (4) Channels of 1080p at 60 fps Eight (8) Channels of 1080p at 30 fps |
| Multi-screen Display | 1/4/8/9 |
| On-screen Display | Camera Title, Time, Video Loss, Camera Lock, Motion Detection, Recording |
Display
| Mode | Digital |
| Audio Compression | G.711U |
| Input | Built-in Omnidirectional Microphone |
| Output | Built-in Speaker |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Quick Start Guide
1.6mb
File
User Manual
1.2mb
File
Drawings
0.1mb
