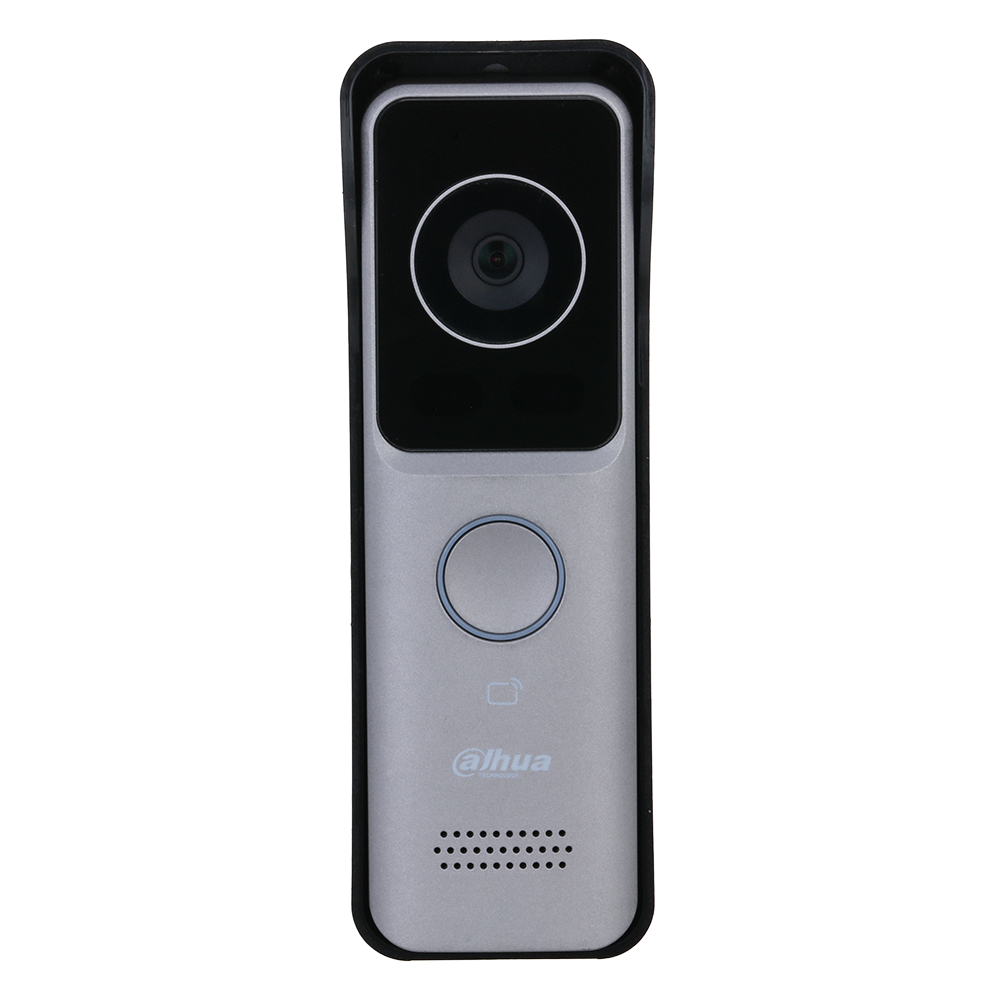

Dahua - DHI-VTO2311R-WP - Ultra Slim Wi-fi PoE Door Station
Part number:
DHI-VTO2311R-WP
Price:
Enhance your building’s security with our upcoming WiFi IP Door Station: the DHI-VTO2311R-WP. This cutting-edge IP WiFi video intercom system distinguishes itself from previous iterations of VTOs with its ultra slim form factor and enhanced functionality. It features a high-resolution 2MP camera and two-way audio communication, an IP65 ingress protection rating, and an integrated IC card reader to ensure that it works in all weather conditions and for any situation.
Features:
- 1/2.8-in. CMOS Sensor
- Built-in Microphone and Speaker for Two-way Audio Communication
- H.264 and H.265 Video Compression
- PoE Power Supply
- IC Card Unlock Ability
- IP65 Protection Rating
| Technical Specification | |
| System | |
| Main Processor | Embedded Processor |
| Button Type | Mechanical |
| Interoperability | ONVIF, CGI |
| Network Protocol | RTSP, DNS, P2P, UPnP, RTP, RTMP, SIP, SSH, HTTP/ HTTPS, ONVIF |
Camera
| Image Sensor | 1/2.8-in. CMOS | |
| Effective Pixels | 2MP | |
| Field of View | Horizontal | 110° |
| Vertical | 62° | |
| Diagonal | 133° | |
| BLC Mode | True WDR (120 dB) | |
| Noise Reduction | 2DNR, 3DNR | |
| Video Compression | H.264, H.265 | |
Video Resolution | Main Stream | 720p, WVGA, D1, and CIF |
| Sub Stream | 1080p, WVGA, D1, QVGA, and CIF | |
| Video Frame Rate | NTSC: 30 fps | |
| Video Bit Rate | 768 Kbps to 8 Mbps | |
| Light Compensation | Auto IR | |
| Day/Night | Auto (ICR), Color, B/W | |
Function
| Communication Mode | Full Digital |
| Unlock Mode | Card, Application, Indoor Monitor |
| Card Type | IC Card |
| Auto Snapshot | Supported with SD Card |
| Leave Videos | Supported with SD Card |
| Web Configuration | Supported |
| WiFi | Supported |
| Wireless Standard | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wireless Frequency Range | 2.4 GHz |
| Storage | MicroSD Card (Max. 256 GB) |
Performance
| Card Reading Distance | 0 cm to 3 cm (0 in. to 1.18 in.) |
| Issue Card Locally | Supported |
| Card Capacity | 3,000 |
| Tamper Alarm | Supported |
Interface
| Audio | Input | One (1) Port |
| Output | Built-in Speaker | |
| Exit Button | One (1) Port | |
| Door Status Detection | One (1) Port | |
| Lock Control | One (1) Port | |
| Network Port | One (1) RJ-45 10/100 Mbps Ethernet Port | |
Construction
| Casing | PC + ABS |
| Installation | Surface Mount |
| Protection | IP65 |
| Product Dimensions | 160 mm × 50 mm × 30 mm (6.30 in. × 1.97 in. × 1.18 in.) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
