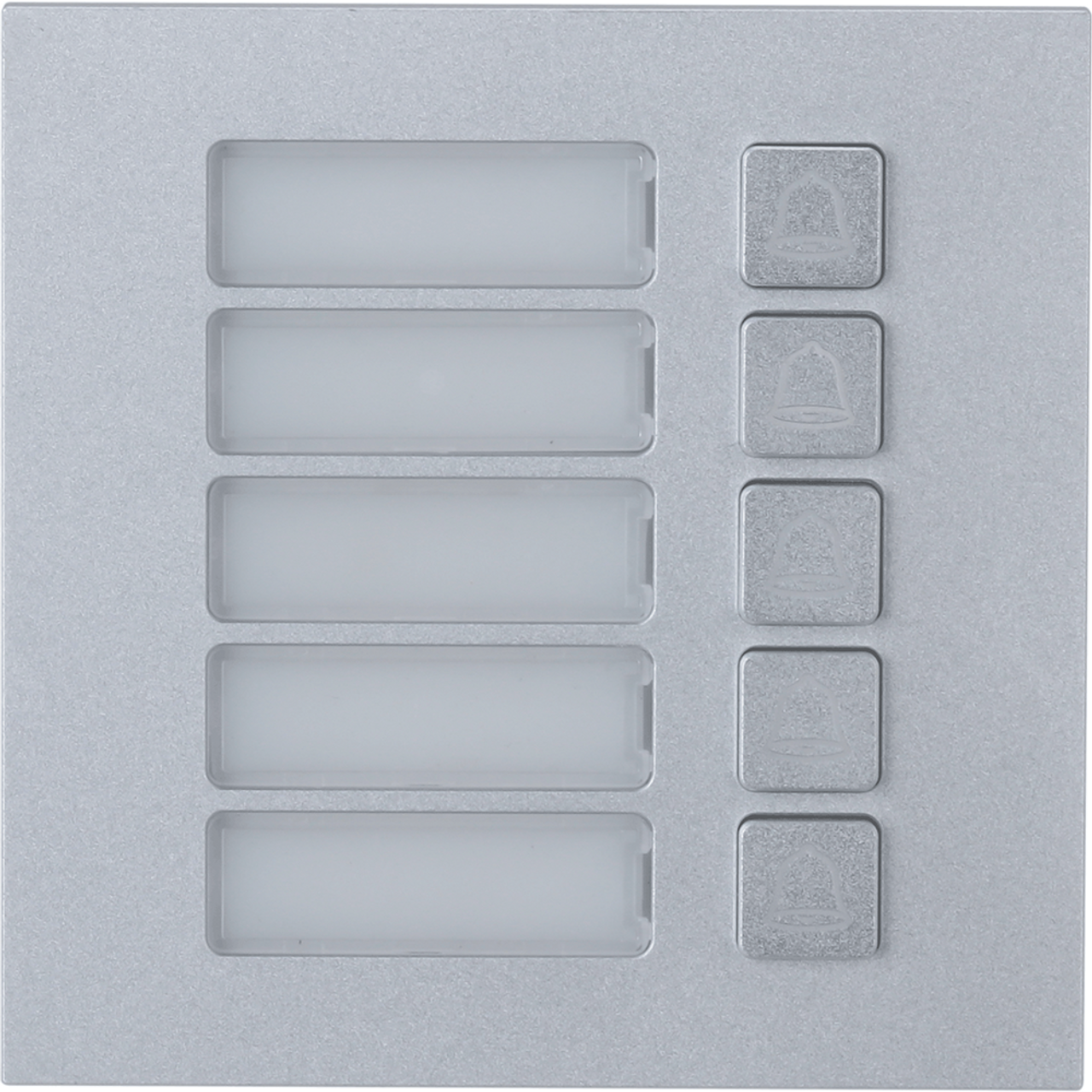

Dahua - DHI-VTO4202F-MB5 - Intercom Modular Outdoor Station, Five-call Buton Panel
Part number:
DHI-VTO4202F-MB5
Price:
Intercom Modular Outdoor Station, Five-call Buton Panel.
Features:
- Buttons: Mechanical, Metal
- Power Supply: 5 VDC (Provided with power by other modules)
- Power Consumption: 1 W
- Operating Temperature: –20°C to +60°C (–4°F to +140°F )
- Operating Humidity: 10% to 90%, Relative
- Ingress Protection: IP65
- Vandal Resistance: IK07
- Size: Full Panel
| Technical Specifications: Intercom Modules | ||||||||
| DHI-VTO4202F- MB5¹ | DHI-VTO4202F- MK | DHI-VTO4202F- MF | DHI-VTO4202F-MS | DHI-VTO4202F- ML | DHI-VTO4202F- MR | DHI-VTO4202F- MN | ||
| Function | Five-button Call Panel | Keypad | Fingerprint Reader | Information Text Display | Status Light Panel | IC Card Reader | Blank Panel | |
| Main Processor | Embedded MCU Processor | — | ||||||
| Button Type | Five Buttons, Mechanical | Metal Backlit Keyboard | — | — | — | — | ||
| Indicator Light | — | — | — | Three (3): Incoming Call Outgoing Call Unlock | — | — | ||
| Display | — | — | — | 3.0 in. STN | — | — | — | |
| Electrical | Power Supply | 5 VDC (Provided with power by other modules) | — | |||||
| Power Consumption | 1 W | — | ||||||
| Environmental | Operating Temp. | –20°C to +60°C (–4°F to +140°F ) | — | |||||
| Operating Humidity | 10% to 90%, Relative | — | ||||||
| Ingress Protection | IP65 | |||||||
| Vandal Resistance | IK07 | |||||||
| Dimensions | Full Panel 100.0 mm x 100.0 mm x 31.0 mm (3.94 in. x 3.94 in. x 1.22 in.) | Half Panel 100.0 mm x 49.90 mm x 28.50 mm (3.94 in. x 1.96 in. x 1.12 in.) | ||||||
