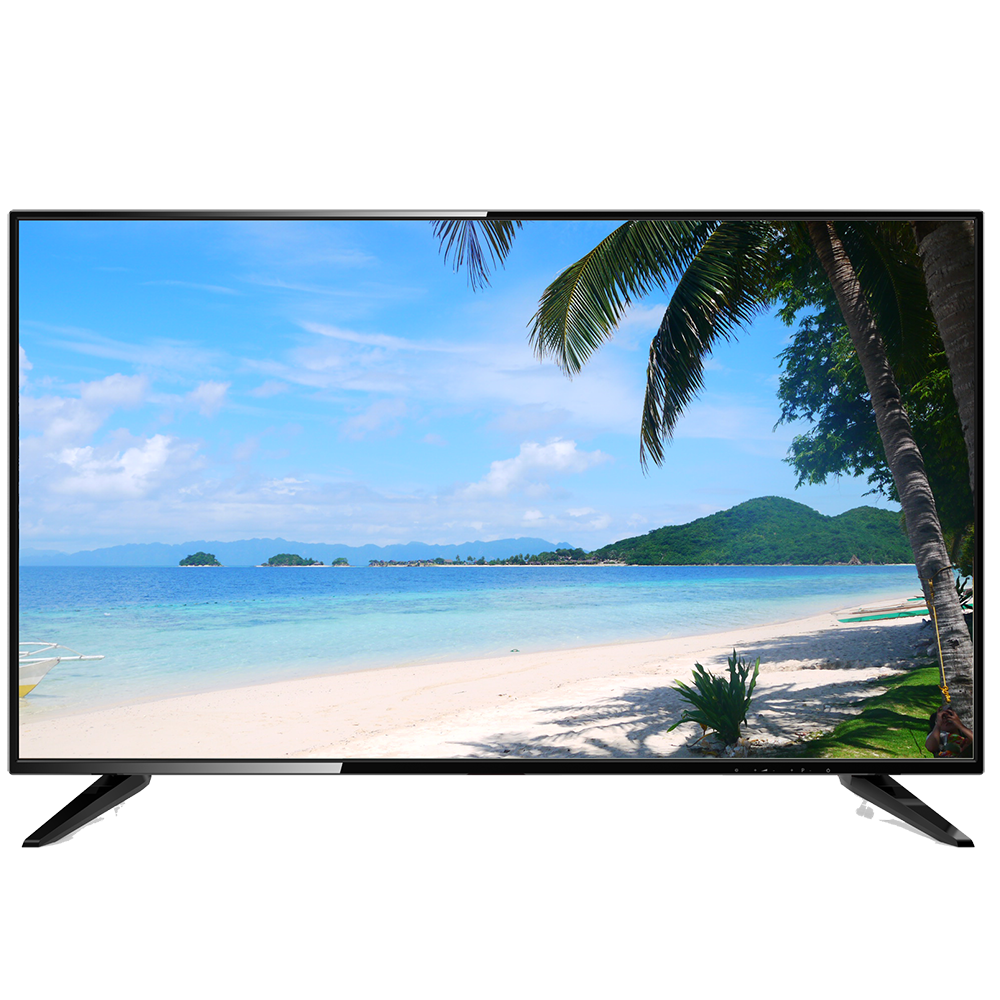

DHL43-F600 - EOL Replacement: DHI-LM43-F200
Part number:
DHL43-F600
Price:
- Industrial-grade DID LCD Panel for Continuous Operation
- 1920 x 1080p Resolution
- High-fidelity Digital Signal Processing for Vivid Video
- Built-in 3D Comb Filter and 3D Noise Reduction
- Fast Response Time (5 ms) with no Image Ghosting
- Built-in Speaker
- 16.7 Million Colors
- Supports HDMI and VGA Video Input
System
| Viewable Picture Area | 42.5 in. (measured diagonally) |
| Aspect Ratio | 16:9 |
| Resolution | 1920 x 1080 (Full HD) |
| Backlight | LED |
| Brightness/Luminance | 350 cd/m² |
| Contrast | 1200:1 |
| Angle of View | Horizontal: 178° Vertical: 178° |
| Response Time | 5 ms |
| Display Colors | 16.7 Million |
Interface
| Video Inputs | One (1) HDMI One (1) VGA (D-sub) |
| Audio | Input: One (1) Channel, RCA Output: Built-in Speaker |
Electrical
| Power Supply | 100 VAC to 240 VAC (±10%), 50/60 Hz |
| Consumption | Standard: 58 W Standby: ≤ 0.5 W |
Construction/Environmental
| Operating Conditions | 0° C to 40° C (32° F to 104° F) |
Name
Description
Size
Downloads
File
Datasheet
0.8mb
