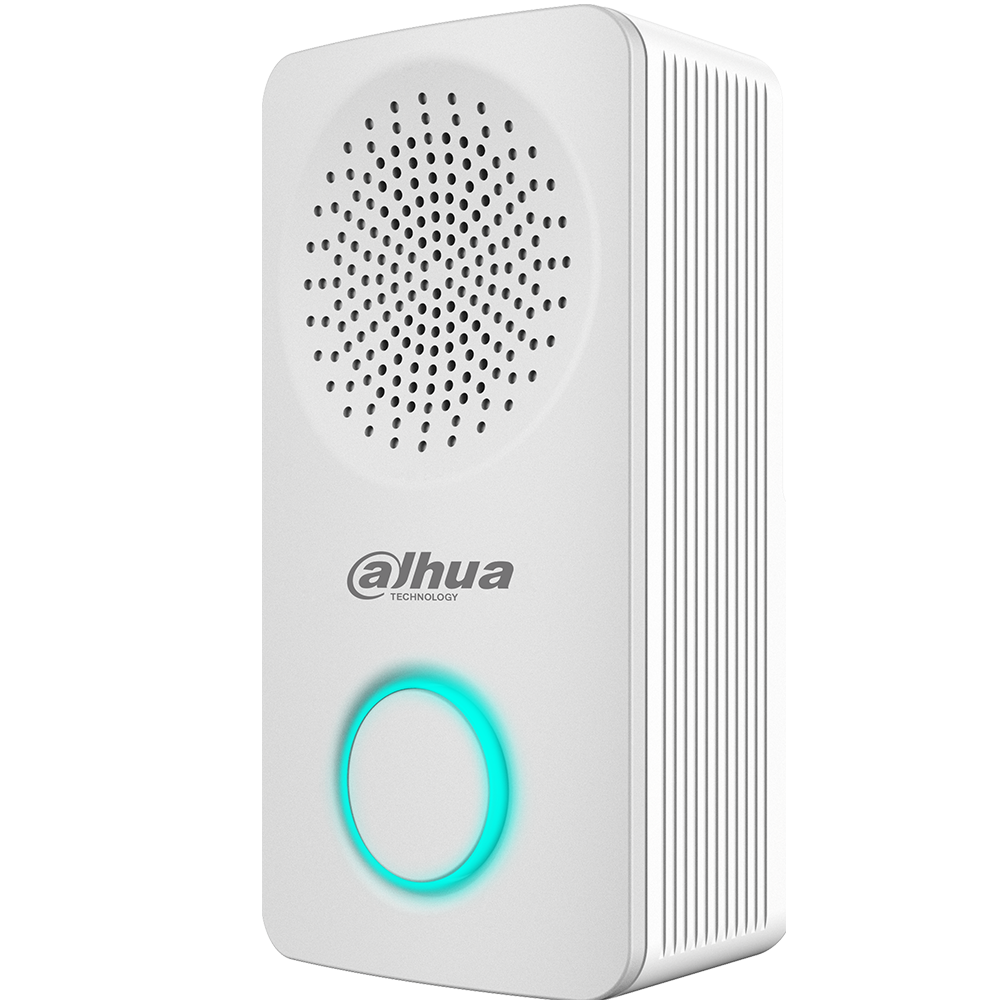

Dahua - DS11-USA - Wi-Fi Doorbell Chime
Part number:
DS11-USA
Price:
The DS11-USA WiFi Chime Kit is an indoor, standalone doorbell chime, compatible with the Dahua LincX2Pro DHI-DB11 WiFi Video Doorbell. Once configured, the DS11-USA sounds the ringtone when a visitor presses the Video Doorbell button. The DS11-USA easily connects to the Dahua DMSS mobile application and pairs to a DHI-DB11. Use the DMSS app to customize the ringtone.
Features:
- Compatible with DHI-DB11 WiFi Video Doorbell
- Indoor Doorbell Chime
- Built-in Speaker
- Multiple Ringtone Options
| WiFi | 2.4 GHz WiFi (IEEE802.11b/g/n) |
| Mobile Application | DMSS |
| Audio | Output: Built-in Speaker Multiple Ringtone Options |
| Interface | Reset Button Pairing Button LED Indicator |
| Power Supply | 120 VAC to 240 VAC, Wall-mounted Power Plug |
| Power Consumption | < 5 W |
| Operating Temperature | –10° C to +50° C (14° F to 122° F), Less than 95% RH |
| Dimensions | 99.0 mm x 52.0 mm x 37.50 mm, without plug (3.90 in. x 2.05 in. x 1.48 in.) |
| Weight | 0.20 kg (0.44 lb) |
