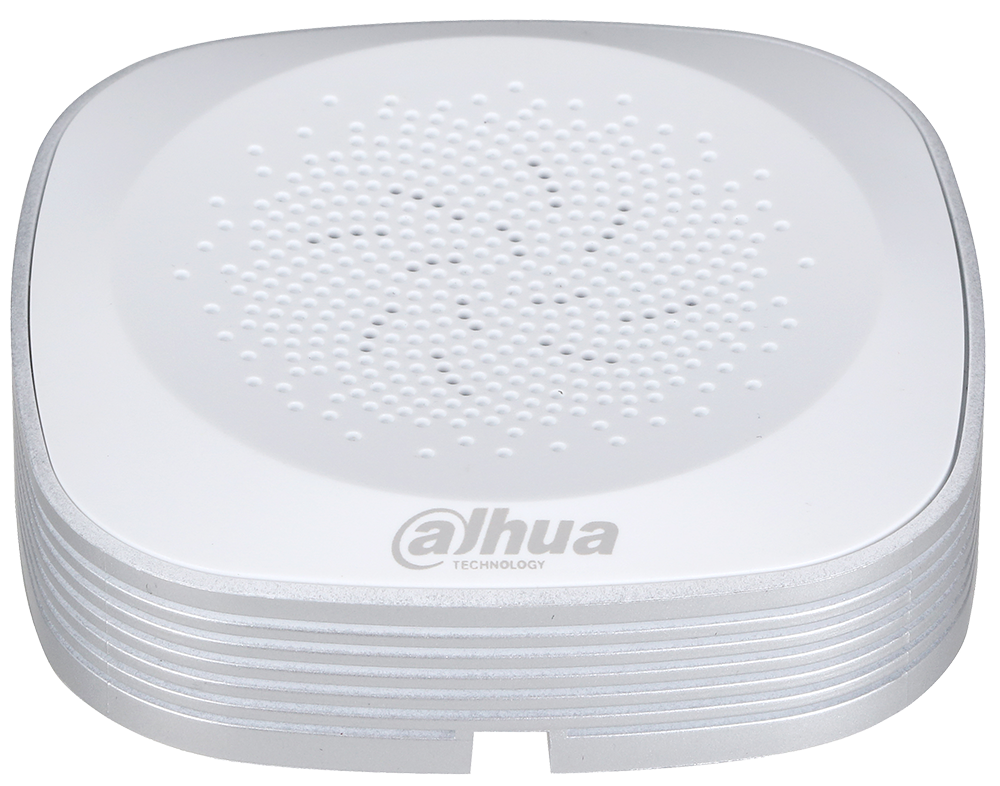

Dahua - HAP200 - High-fidelity Pickup
Part number:
HAP200
Price:
High-fidelity Pickup
Features:
- Omni-directional, High-fidelity Microphone
- ALC Processing Circuit
- Includes Basic Noise Reduction Technology
- Supports Cascading
- Best Fit for Spaces Between 10 m² (32.81 ft²) to 100 m² (328.10 ft²)
| Scope | 10.0 m² (32.81 ft²) to 100.0 m² (328.10 ft²) |
| Sensitivity | –30 dB |
| Frequency Response | 20 Hz to 20 KHz |
| Directional Characteristics | Omni-directional |
| SNR | 80 dB (1 m 40 dB Sound Source SPL) 50 dB (10 m 45 dB Sound Source SPL) 1 KHz at 1 Pa |
| Dynamic Range | 104 dB (1 KHz at Maximum dB SPL) |
| Maximum Sustainable Sound Pressure | 120 dB SPL (1 KHz, THD 1%) |
| Output Impedance | 600 Ω (non-equilibrium) |
| Output Signal Amplitude | 2.5 Vpp / –25 dB |
| Microphone | Electret Condenser Microphone |
| Working Voltage | 12 VDC (9 VDC to 18 VDC) |
| Working Current | 50 mA |
| Working Temperature | –25° C to +70° C (–13° F to 158° F) |
| Interface | Audio Out: RCA Cascade: RCA Power In: DC Connector |
| Outer Shell | PC and ABS Plastic |
