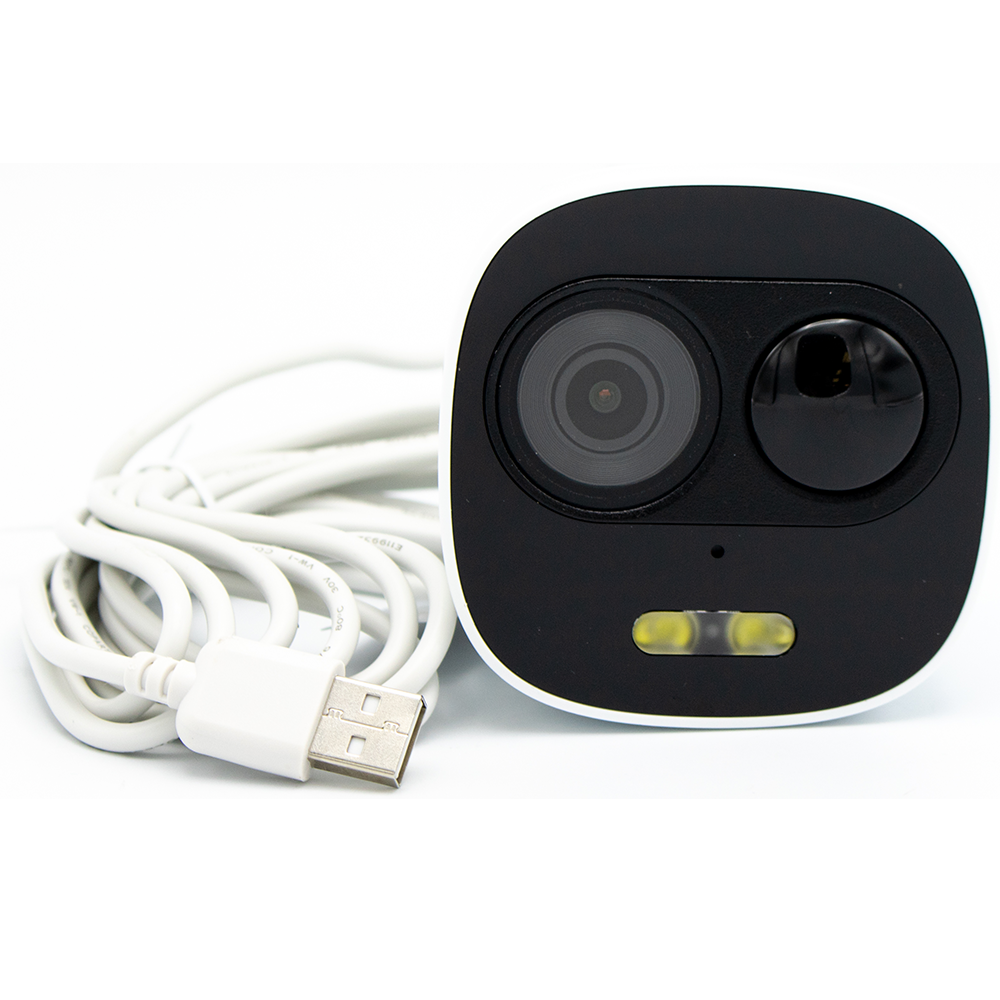

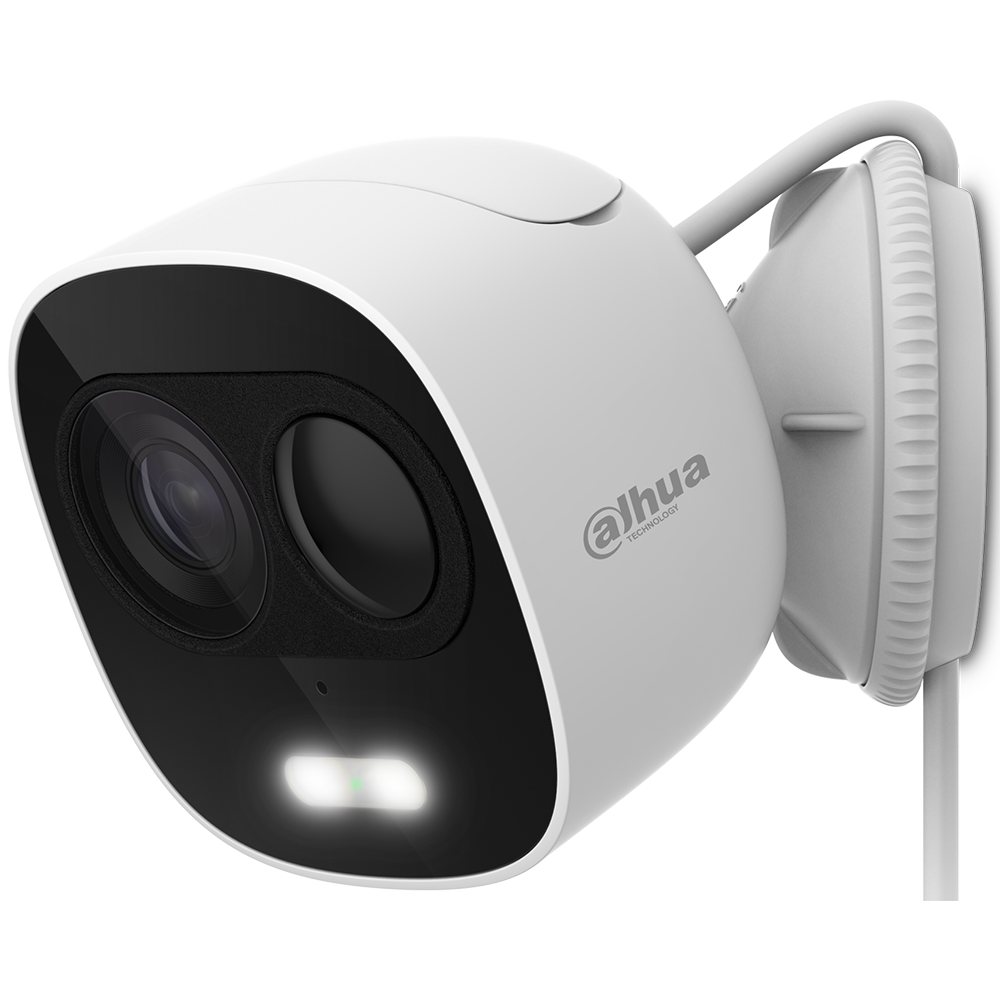

The IPC-C26EN Active Alarm camera is a component of the Dahua LincX2PRO camera series. The camera offers Passive IR motion detection and is capable of sounding a siren and turning on a spotlight when an intruder is detected. The device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application. The IPC-C26EN is certified to the IP65 Ingress Protection standard, making it the ideal camera for indoor and outdoor surveillance at homes and small retail or dining establishments.
Features:
- 1/2.7-in. 2 MP Progressive-scan CMOS Sensor
- 2.4 GHz, IEEE802.11b/g/n, 100 m (328 ft) Open Field WiFi
- H.265 and H.264 Dual Codecs
- 2 MP at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Passive IR Detector
- Built-in Microphone and Speaker
- Active Alarm with Integrated 110 dB Siren and Spotlight
- Maximum IR LED Length 10 m (33 ft)
- IP65 Ingress Protection
- Compatible with Alexa®
- Five-year Warranty (for products sold through authorized Dahua Dealers)
Camera
| Image Sensor | 1/2.7-in. 2 MP CMOS |
| Effective Pixels | 1920 x 1080, 2 MP |
| Scanning System | Progressive |
| IR Distance | 10.0 m (32.81 ft) |
Lens
| Lens Type | Fixed |
| Focal Length | 2.8 mm |
| Angle of View | Horizontal 111° Vertical 58° Diagonal 133° |
Video and Audio
| Compression | H.265, H.264 |
| Resolution | 2 MP at 30 fps |
| Digital Zoom | 16x |
| Motion Detection | Passive Infrared (PIR), Configurable Regions |
| Audio | Input Built-in Microphone Output Built-in Speaker with integrated 110 dB Siren |
Name
Description
Size
Downloads
File
Data Sheet
0.4mb
File
Quick Start Guide
0.8mb
File
Quick Guide
1.7mb
