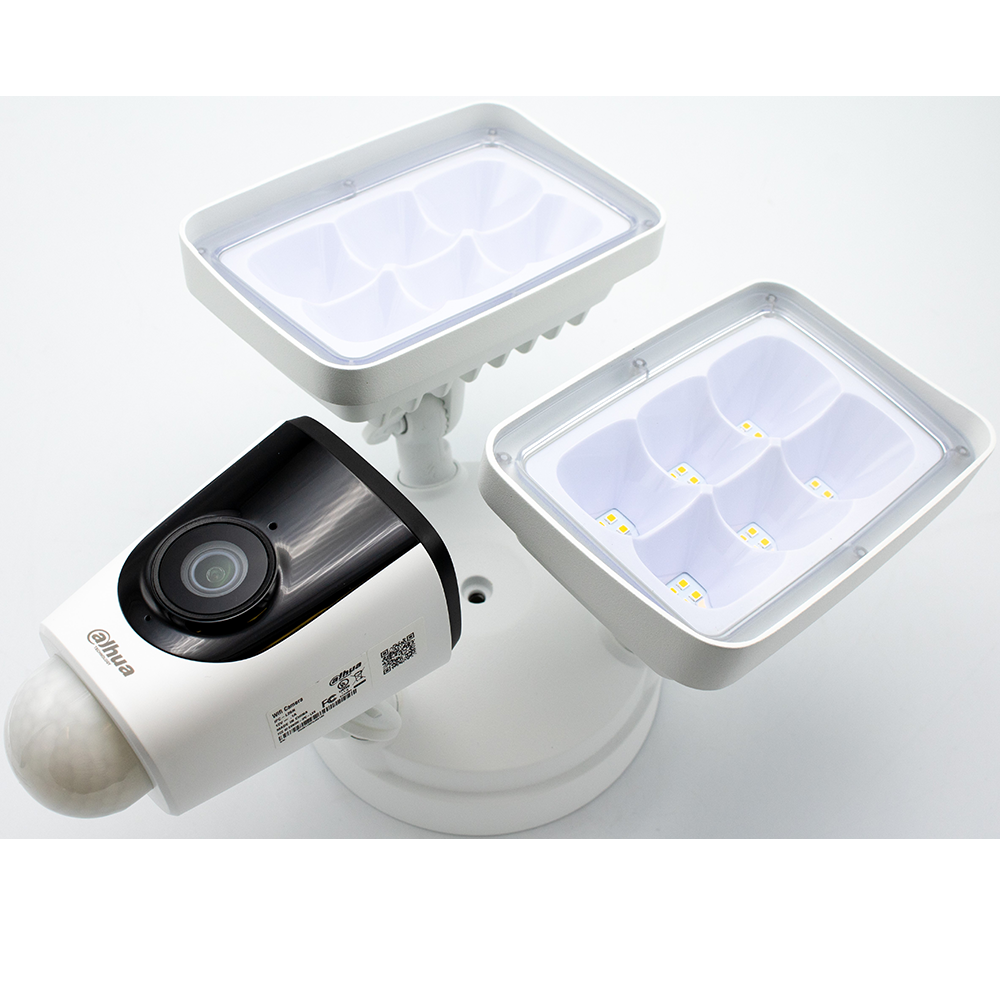

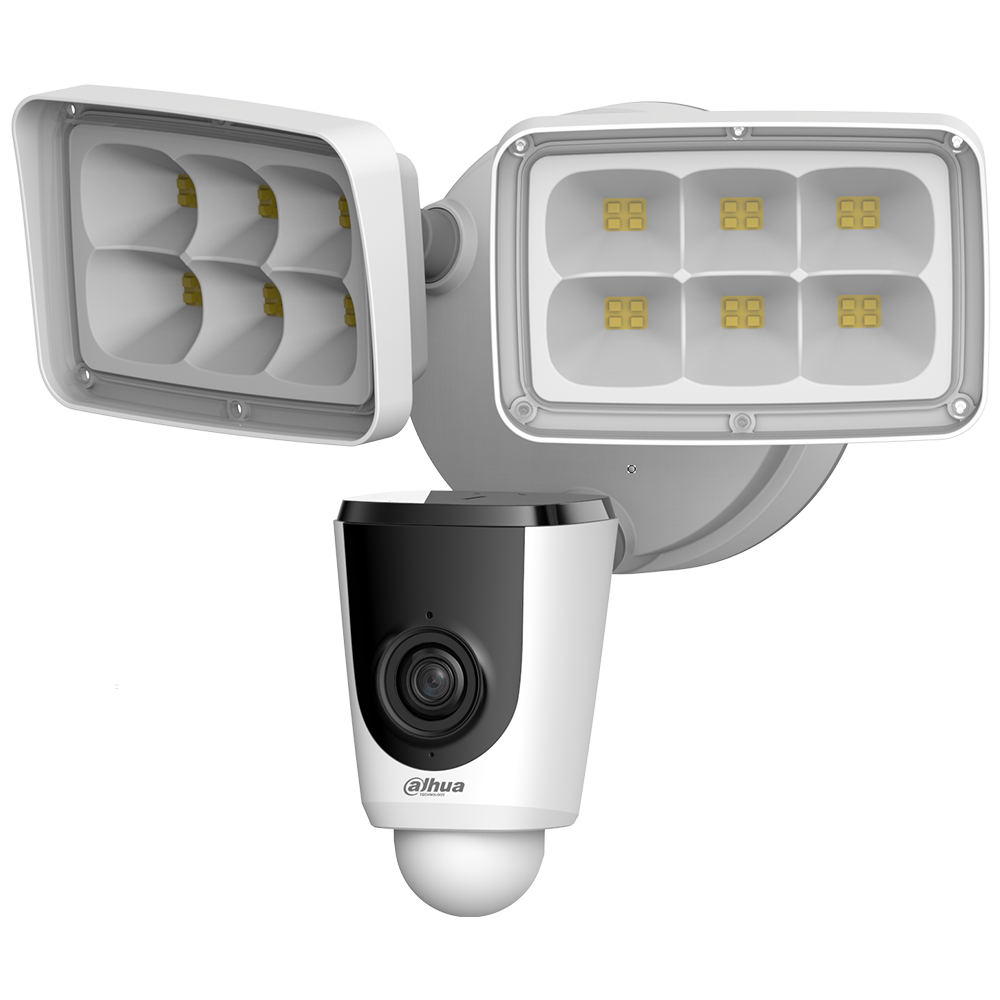

The IPC-L26N Active Alarm Floodlight camera is a component of the Dahua LincX2PRO Series camera series. The camera offers Passive IR motion detection and is capable of sounding a siren and turning on a floodlight when an intruder is detected. The device is compatible with Dahua NVRs; Dahua X5, X7, and X82 Series HDCVI DVRs, and with the DMSS mobile application. The IPC-L26N is certified to the IP65 Ingress Protection standard, making it the ideal camera for indoor and outdoor surveillance at homes and small retail or dining establishments.
Features:
- 1/2.7-in. 2 MP Progressive-scan CMOS Sensor
- 2.4 GHz, IEEE802.11b/g/n, 100 m (328 ft) Open Field WiFi
- Smart H.265+ and Smart H.264+ Dual Codecs
- 2 MP at 30 fps Maximum Resolution
- 2.8 mm Fixed Lens
- Built-in Microphone and Speaker
- Active Alarm with Integrated 110 dB Siren and Floodlight
- Maximum IR LED Length 10 m (33 ft)
- IP65 Ingress Protection
- Compatible with Alexa®
- Five-year Warranty (for products sold through authorized Dahua Dealers)
| Technical Specifications | |
| Camera | |
| Image Sensor | 1/2.7-in. 2 MP CMOS |
| Effective Pixels | 1920 x 1080, 2 MP |
| Scanning System | Progressive |
| IR Distance | 10.0 m (32.81 ft) |
| Lens | ||
| Lens Type | Fixed | |
| Focal Length | 2.8 mm | |
| Angle of View | Horizontal | 114° |
| Vertical | 66° | |
| Diagonal | 137° |
| Video and Audio | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264 |
| Resolution | 2 MP at 30 fps |
| Digital Zoom | 16x |
| Day/Night | Auto (ICR) |
| PIR | Configurable area and distance: Coverage: up to 270° Distance: up to 10.0 m (32.81 ft) | ||
| Audio | Input | Built-in Microphone | |
| Output | Built-in Speaker with integrated 110 dB Siren | ||
| WiFi | 2.4 GHz WiFi (IEEE802.11b/g/n) | ||
| Antenna | Internal Dual Antennae, 2 x 2 MIMO | ||
| Interoperability | CGI | ||
| Mobile Operating System | IOS, Android | ||
| Edge Storage | Micro SD Card Slot, maximum 256 GB | ||
| Compatibility¹ |
| ||
| Floodlight | |
| Brightness | 2000 lm |
| Color Temperature | 3000K |
| Modes | Manual, Passive Infrared Motion Detection (PIR), Dusk to Dawn |
| Certifications | |
| Safety | UL 60950-1 CAN/CSA C22.2 No. 60950-1-07 EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 IEC 60950-1:2005 (2nd Ed.); Am1:2009 + Am2:2013 |
| Electromagnetic Compatibility (EMC) | CFR 47 FCC Part 15 subpart B 2018 EN 55032:2015, EN 6100- 3-2:2014, EN 61000-3-3:2013, EN 50130-4:2011/A1:2014, EN 55024:2010/A1:2015, EN 55035:2017 |
| Electrical | |
| Power Supply | 100 VAC to 240 VAC |
| Power Consumption | < 40 W |
| Environmental | |
| Operating Temperature | –30° C to +50° C (–22° F to 122° F), Less than 95% RH |
| Ingress Protection | IP65 |
| Construction | |
| Casing | Metal and Plastic |
| Dimensions | 237.20 mm x 317.30 mm x 171.79 mm (9.30 in. x 12.50 in. x 6.80 in.) |
| Net Weight | 1.80 kg (3.97 lb) |
| Gross Weight | 2.97 kg (6.54 lb) |
