Dahua - IPC-L46N-USA - 4MP Floodlight Camera
Part number:
IPC-L46N-USA
Price:

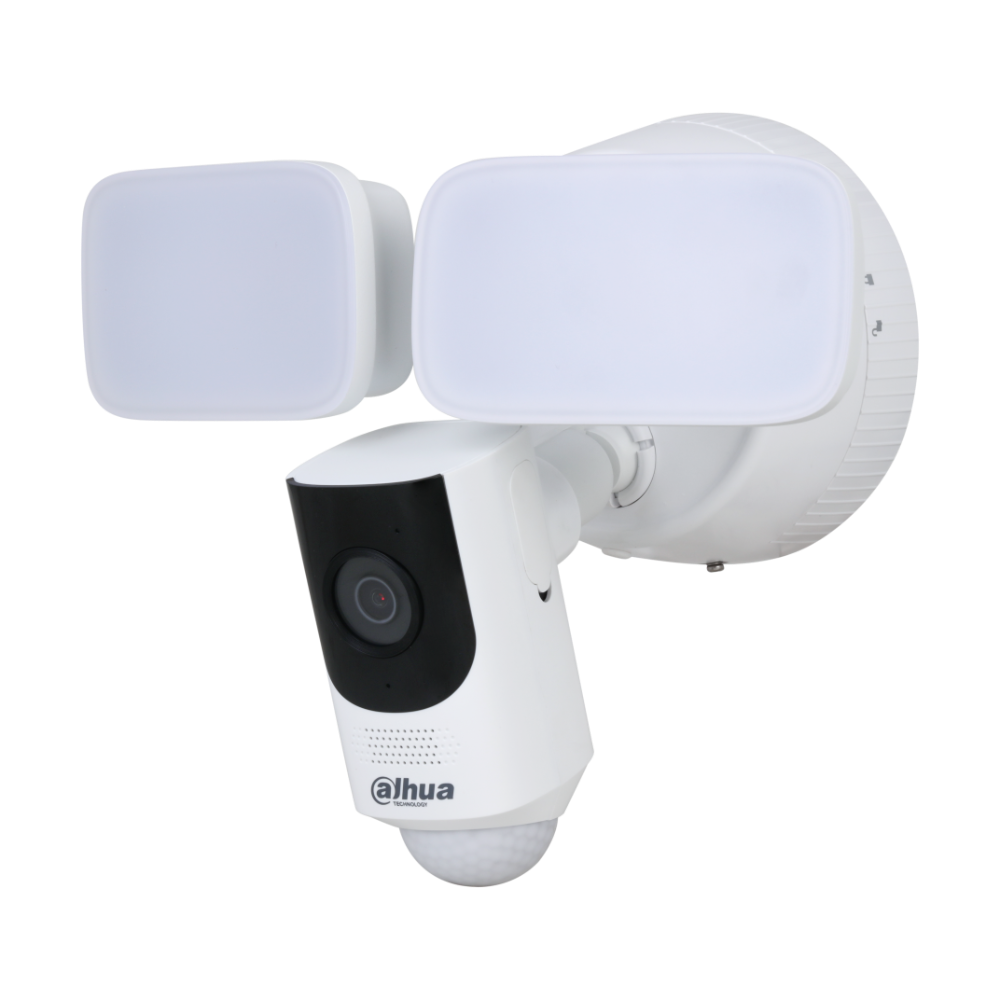

The Dahua LincX2PRO Series includes the IPC-L46N, a floodlight camera with a 4MP CMOS sensor, 2.8 mm fixed lens, and two powerful 2400 Lumen floodlights to provide illuminate the property and deter any prospective attackers. The camera is equipped with Dahua’s Analytics+ which focuses on human and vehicle targets to reduce false warnings. You can converse with visitors or intruders on your property using the camera’s two-way audio through the DMSS mobile app.
Features:
- 1/3-in. 4MP Progressive-scan CMOS Sensor
- 4MP (2560 x 1440) at 30 fps, 2.8 mm Fixed Lens
- 2.4 or 5 GHz WiFi Options, IEEE802.11a/b/g/n/ac
- Smart H.265+ and Smart H.264+ Dual Codecs
- Maximum Resolution of 4MP at 30 fps
- Active Alarm with Integrated 110 dB Siren and Floodlight
- Built-in Microphone and Speaker
- IP65 Ingress Protection
| Technical Specification | |
| Camera | |
| Image Sensor | 1/3-in. 4MP CMOS |
| Effective Pixels | 2560 (H) × 1440 (V) |
| RAM/ROM | 512 MB/128 MB |
| Electronic Shutter Speed | 1/3 s to 1/100,000 s |
| S/N Ratio | > 56 dB |
| Minimum Illumination | Color (30 IRE): 0.005 Lux at F1.6 B/W (30 IRE): 0.0005 Lux at F1.6 IR (Illuminator On): 0 lux |
| Illuminators | One (1) IR LED Two (2) Floodlights |
| Illuminator On/Off Control | Auto, Manual |
| Illumination Distance | IR: 10 m (32.81 ft) Floodlight: 30 m (98.43 ft) |
| Floodlight Brightness | 1500 to 2400 lm |
| Floodlight Color Temperature | Warm: 3000K±200K Cool: 6000K±300K |
| Floodlight Modes | Motion Activation Manual Schedule PIR Activation |
| PIR Sensor Distance1 | 10.0 m (32.81 ft) |
| PIR Detection Range | 270° |
| Lens | |
| Lens Type | Fixed |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Maximum Aperture | F1.6 |
| Iris Type | Fixed |
| Close Focus Distance | 1.0 m (3.28 ft) |
| Video | |
| Compression | Smart H.265+, H.265, Smart H.264+, H.264, H.264H, H.264B, MJPEG |
| Streaming Capability | Three (3) Streams |
| Resolution | 4MP (2560 × 1440), 3MP (2304 × 1296), 1080p (1920 × 1080), 1.3MP (1280 × 960), 720P (1280 × 720), D1 (704 × 480), VGA (640 × 480), CIF (352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H264: 32 kbps to 8192 kbps H265: 32 kbps to 8192 kbps |
| Day/Night | Auto, Color, B/W |
| Backlight Compensation | BLC, HLC, DWDR |
| White Balance | Auto, Natural, Street Lamp, Outdoor, Manual, Regional Custom |
| Gain Control | Auto, Gain Priority, Shutter Priority, Manual |
| Image Rotation | 0°, 90°, 180°, 270° |
| Image Mirroring | Supported |
| Noise Reduction | 3DNR |
| Motion Detection | Off/On (4 Areas, Rectangular) |
| Region of Interest (RoI) | 4 Areas |
| Privacy Masking | 4 Areas |
| Advanced Features | Smart Illumination |
| Audio | |
| Built-in Microphone | Yes |
| Built-in Speaker | Yes |
| Compression | G.711a, G.711Mu, G.726, PCM |
| Network | |
| WiFi | IEEE802.11a/b/g/n/ac 2.4–2.4835 GHz and 5.18– 5.85 GHz |
| Protocol | IPV4, IPV6, ARP and Ping, TCP, UDP, HTTP, RTSP, HTTPS, DDNS, Email, SNMP, Multicast, Auto Registration, Wireless Qos, Wi-Fi Setting, Hotspot Scanning, 802.1x, UPnP Status, Bonjour, UPnP, Device Discovery |
| Interoperability | ONVIF, CGI, P2P, RTMP, SDK, API |
| Maximum User Access | 6 Users (Total Bandwidth: 36 Mbps) |
| Edge Storage | FTP, SFTP, MicroSD Card (Maximum 256 GB), NAS |
| Web Viewer | Microsoft Edge, Chrome, Firefox |
| Management Software | DMSS |
| Mobile Operating System | Android, iOS |
| Cybersecurity | Video Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, Generating/ Importing X.509 certification, HTTPS, Trusted Boot, Trusted Execution, Trusted Upgrade |
| Alarm | |
| Event | No SD Card, SD Card Full, SD Card Error, Network Disconnection, IP Conflict, Illegal Access, Security Exception, Motion Detection, Video Tampering, Sence Changing, SMD (Human, Animal, Vehicle), Audio Detection, Intensity Change |
| Structure | |
| Casing | Metal, Plastic |
| Product Dimensions (L x W x H) | 270.7 mm × 217.2 mm × 195.6 mm (10.66 in. × 8.55 in. × 7.70 in.) |
| Net Weight | 1.40 kg (3.09 lb) |
| Gross Weight | 1.88 kg (4.14 lb) |
| Certifications | |
| Safety | EN62368-1 |
| Electromagnetic Compatability (EMC) | Electromagnetic Compatibility Directive 2014/30/EU Radio Equipment Directive 2014/53/EU 47 CFR FCC Part 15, Subpart B |
