ITC237-PW6M-IRLZF1050-B - EOL Replacement: ITC413-PW4D-Z3
This product has been discontinued. Replacement: ITC413-PW4D-Z3
Part number:
ITC237-PW6M-IRLZF1050-B
Price:

The ITC237-PW6M-IRLZF1050-B is a license plate recognition camera with a recording resolution of 1920 x 1080 (1080p) at 30 frames per second with a 1/1.8-in. Sony GS-CMOS sensor. The camera includes a 10 mm to 50 mm motorized vari-focal lens that lets the installer adjust the zoom angle of the picture, providing long-range video. The camera recognizes license plates of vehicles traveling up to 80 kph (49 mph). The camera can be mounted between 8 m and 30 m (26.25 ft and 98.43 ft) from where the vehicles will be traveling and captures and recognizes plates from a single lane.



Features:

  • 1/1.8-in. 2 MP GS CMOS Sensor
  • License Plate Recognition Distance up to 30 m (98.43 ft)
  • Capture and Recognize License Plates from Vehicles Traveling up to 80 kph (49 mph)
  • Dual-stream Encoding
  • H.265 and H.264 Dual Codec
  • 1080p at 30 fps Maximum Resolution
  • 10 mm to 50 mm Motorized Vari-focal Lens
  • Maximum IR LED Distance 25 m (82 ft)
  • 12 VDC, 1 A Power Output
  • IP67 Ingress Protection

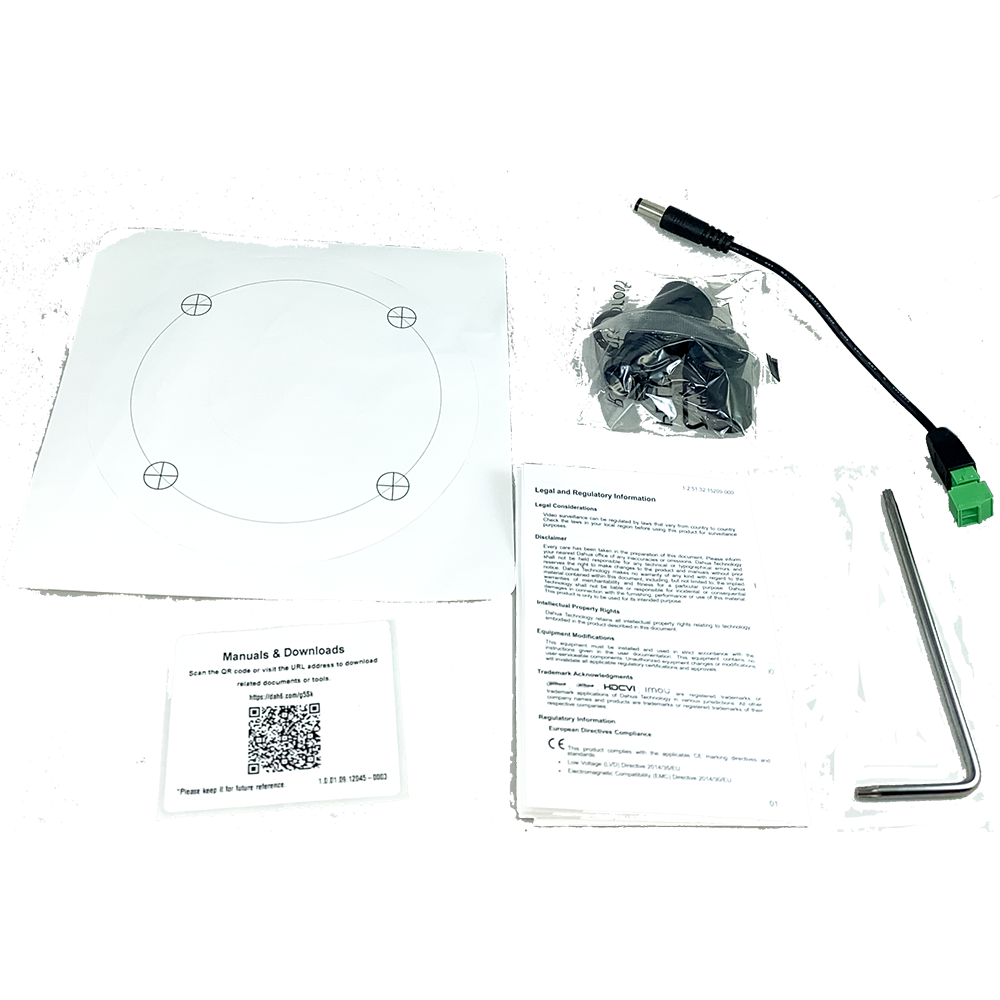

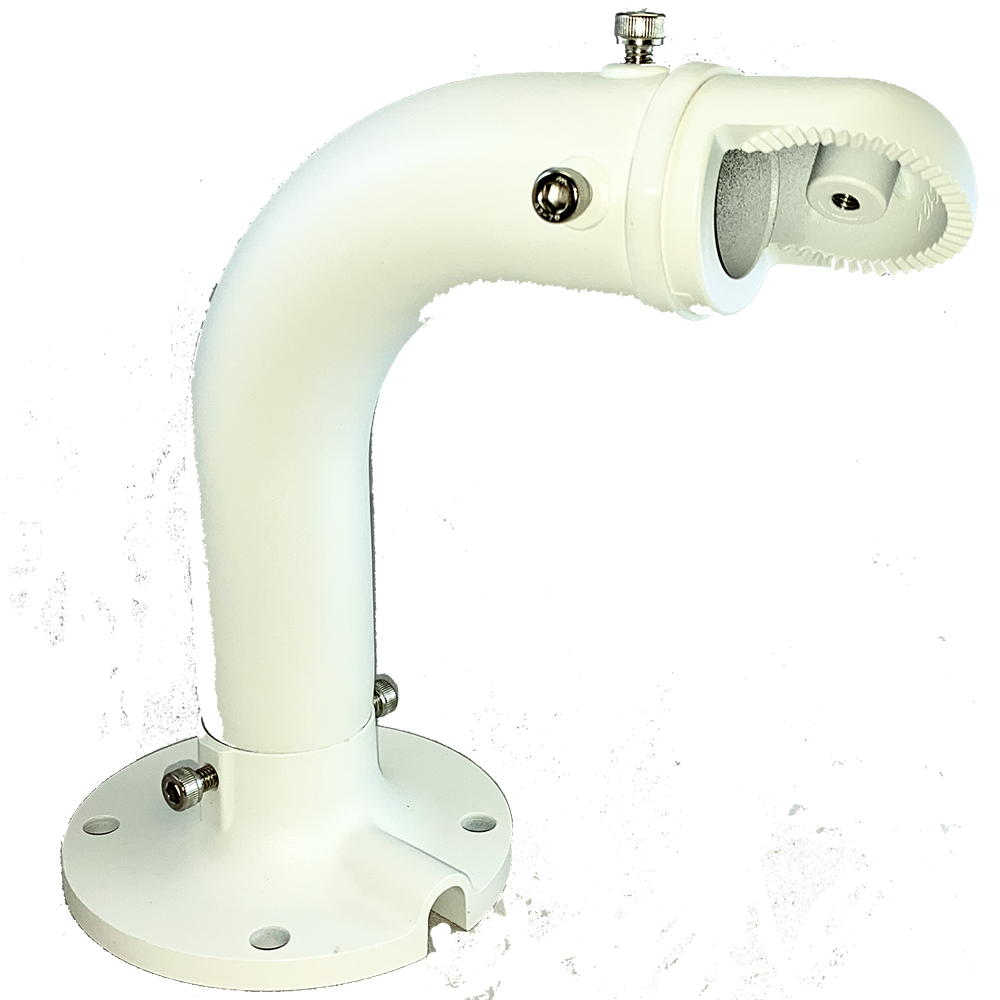

  • Mounting Bracket Included
  • Five-year Warranty (for products sold through an authorized Dahua Dealer)
Camera
Image Sensor1/1.8-in. 2 MP GS CMOS
Effective Pixels1920(H) x 1080(V)
Scanning SystemRolling Shutter
Electronic Shutter Speed1/50 s to 1/10000 s
IR Distance25.0 m (82.02 ft)
IR On/Off ControlAuto, On, Off
IR LEDsSix (6), adjustable brightness
Lens
Lens TypeModule
Focal Length10 mm to 50 mm
Max. ApertureF1.3
Angle of ViewHorizontal: 46.60° to 10.62°
Vertical:40.60° to 9.30°
Diagonal: 22.70° to 5.30°
Optical Zoom5x
IrisAuto Iris, F1.3 to F2.3
Focus ControlMotorized, Automatic
Focus Width Range3.50 m (11. 48 ft), approximately one (1) lane
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
User Manual
1.7mb
