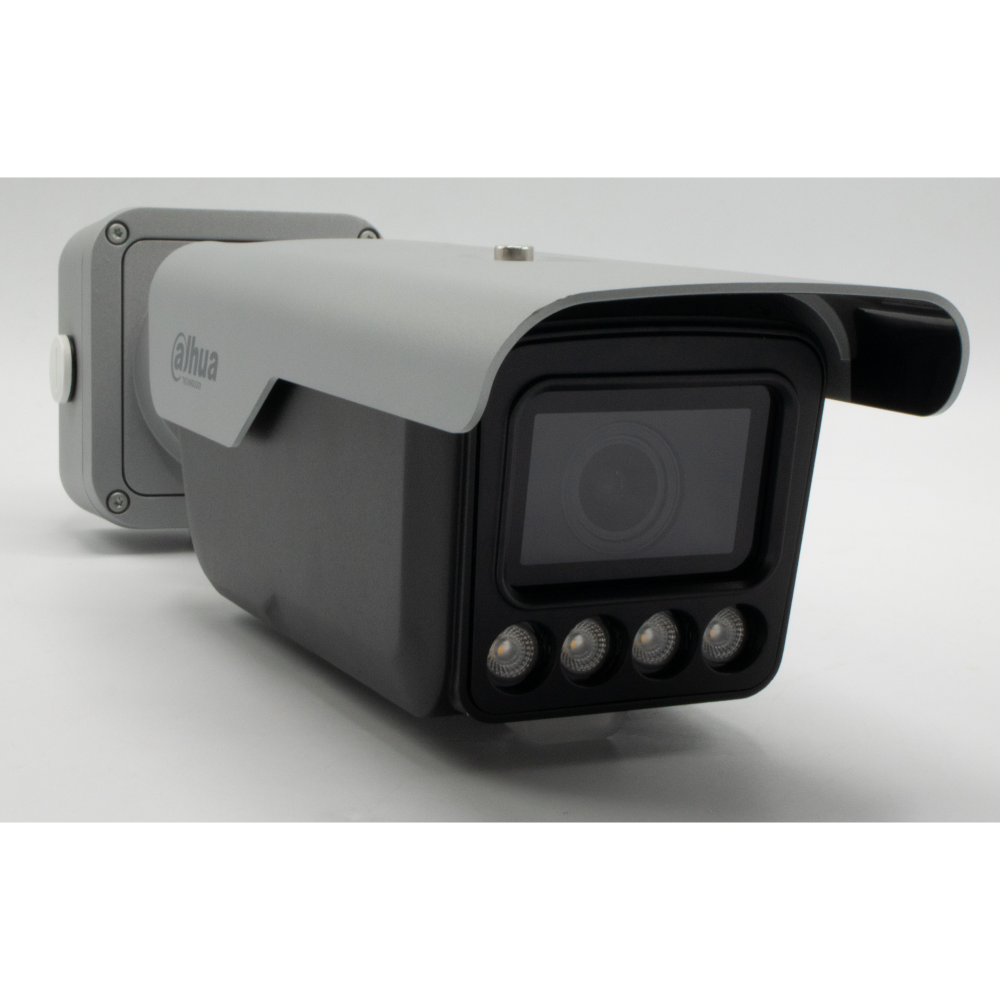

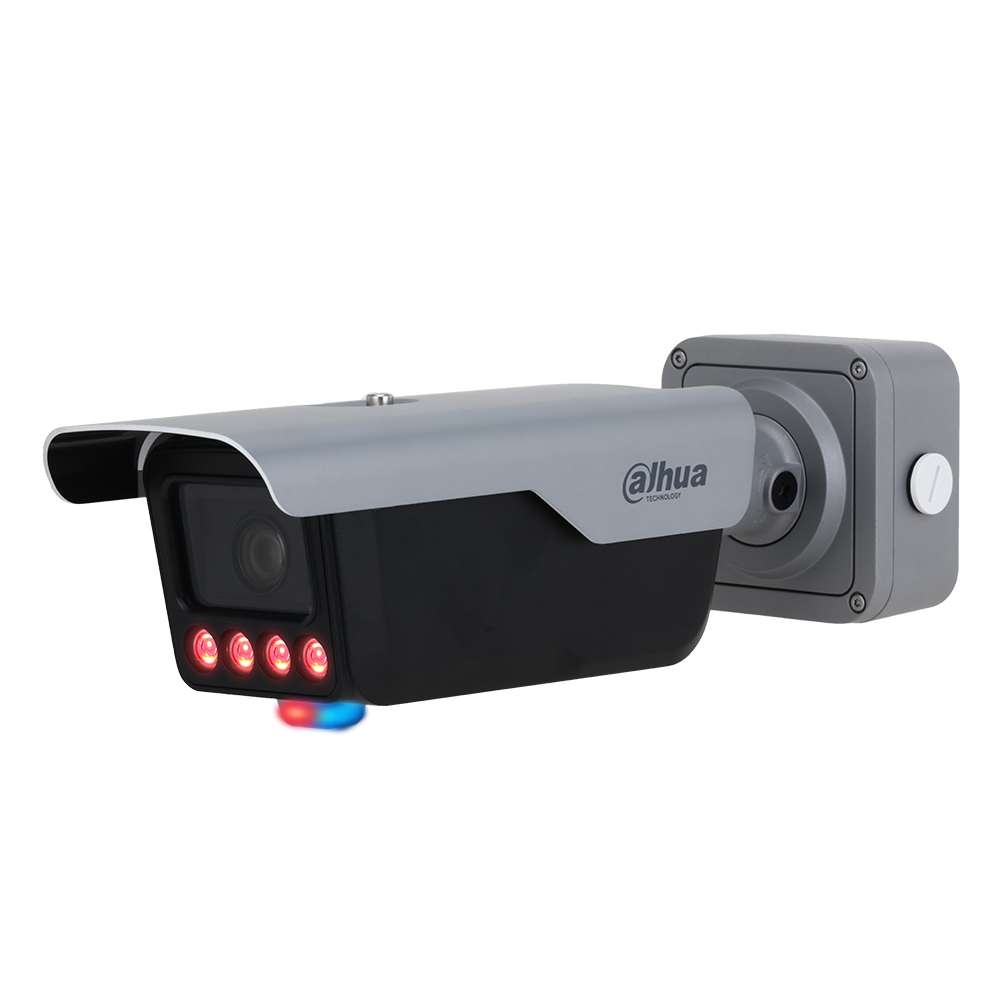

The ITC413-PW4D-Z3 is a license plate recognition camera with a recording resolution of 2688 x 1520 (4MP) at 30 frames per second with a 1/1.8-in. CMOS sensor. The camera includes a 8 mm to 32 mm vari-focal lens that lets the installer adjust the zoom angle of the picture, providing a 39.9° to 15.1° horizontal angle of view. The camera can capture and recognize license plates of vehicles traveling up to 120 kph (75 mph). The camera can be mounted between 8 m and 20 m (26.25 ft and 65.62 ft) from where the vehicles will be traveling. The ITC413-PW4D-Z3 coupled with a Dahua NVR or DSS Video Management System offers a complete traffic management and parking soluton.

License Plate Recognition

The License Plate Recogniton camera automatcally captures vehicle license plate images and recognizes license plate numbers and letters. During playback, an operator can perform a license plate search by Time and Date to view thumbnail images of all plates captured during the specified time period or can enter a license plate number to search for vehicles recorded with that plate. License plate recognition technology offers effective entrance/exit management, traffic security, and parking lot monitoring.

High Efficiency Video Coding (H.265)

The H.265 (ITU-T VCEG) video compression standard offers double the data compression ratio at the same level of video quality, or substantially improved video quality at the same bit rate, as compared to older video compression technologies. H.265 offers such impressive compression by expanding the pattern comparison and difference-coding, improving motion vector prediction and motion region merging, and incorporating an additional filtering step called sample-adaptive offset filtering.

Active Alarm

The camera features active alarm functionality to respond automatically to a triggered alarm. The configurable automatic responses include activation of the red/blue lights and the broadcast of a built-in message or siren.

Starlight+ Technology

For challenging low-light applications, Dahua’s Starlight Ultra-low light Technology offers best-in-class light sensitivity, capturing details in low light applications. The camera uses a set of optical features to balance light throughout the scene, resulting in clear images in dark environments.

Cybersecurity

Dahua network cameras are equipped with a series of key cybersecurity technologies including security authentication and authorization, access control, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s ability to prevent malicious access and to protect data.

Environmental

The camera complies with the IK10 Vandal Resistance impact rating making it capable of withstanding the equivalent of 5 kg (11.02 lbs) of force dropped from a height of 40 cm (15.75 in.). Subjected to rigorous dust and water immersion tests and certified to the IP67 Ingress Protection rating makes it suitable for demanding outdoor applications.

Features:

• 1/1.8-in 4MP CMOS Sensor
• License Plate Recognition Distance Distance up to 20 m (65.62 ft)
• Capture and Recognize License Plates from Vehicles Traveling up to 120 kph (75 mph)
• H.265 and H.264 Dual Codec
• 4MP (2688 x 1520) at 30 fps Maximum Resolution
• 8 mm to 32 mm Motorized Vari-focal Lens
• Supports Signal, Data, and Communication Interfaces and Connection to External Devices
• Dual Illuminators: 730 nm IR LED and warm LED lights
• Maximum Illumination Distance for ANPR 20 m (65.62 ft)
• Maximum Illumination Distance for Video Monitoring 60 m (196.85 ft)
• Supports Intrusion and Loitering Detection
• Built-in Microphone and Built-in Speaker
• Active Alarm with Red/Blue Lights and Siren or Voice Prompt
• IP67 Ingress Protection, IK10 Vandal Protection
